Leader Light LL36 104, LL36 108, LL36 106, LL36 105, LL36 107 User Manual

...

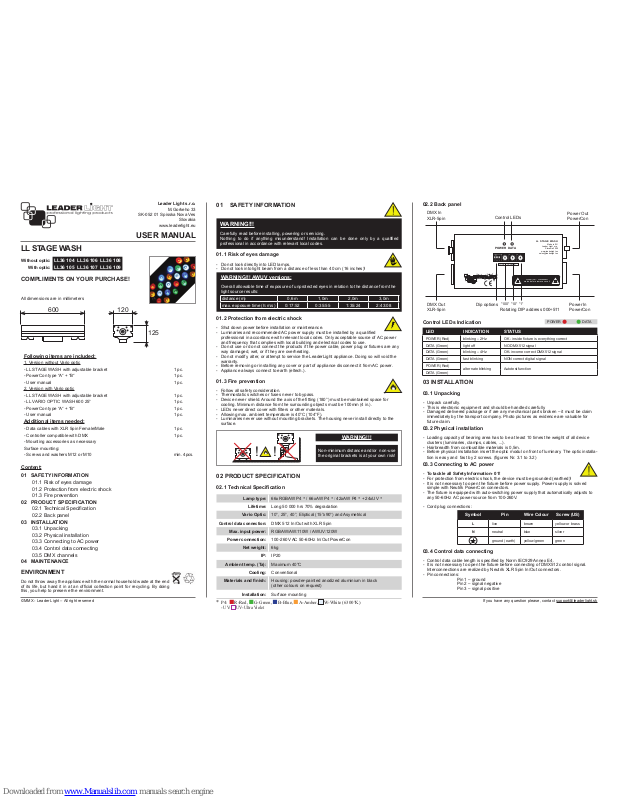

USER MANUAL

LL STAGE WASH

Leader Light s.r.o.

M.Gorkeho 33

SK-052 01 Spisska Nova Ves

Slovakia

www.leaderlight.eu

All dimensions are in millimeters

WARNING!!!

Carefully read before installing, powering or servicing.

Nothing to do if anything misunderstand! Installation can be done only by a qualied

professional in accordance with relevant local codes.

01 SAFETY INFORMATION

01.1 Risk of eyes damage

Do not look directly into LED lamps. Do not look into light beam from a distance of less than 40 cm (16 inches)!

01.2 Protection from electric shock

Shut down power before installation or maintenance.

Luminaries and recommended AC power supply must be installed by a qualied

professional in accordance with relevant local codes. Only acceptable source of AC power and frequency that complies with local building and electrical codes to use.

Do not use or do not connect the products if the power cable, power plug or xtures are any

way damaged, wet, or if they are overheating. Do not modify, alter, or attempt to service the LeaderLight appliance. Doing so will void the warranty. Before removing or installing any cover or part of appliance disconnect it from AC power. Appliance always connect to earth (eltech.).

01.3 Fire prevention

Follow all safety consideration. Thermostatic switches or fuses never to bypass.

Device never shield. Around the axis of the tting (180°) must be maintained space for

cooling.

Minimum distance from the surrounding objects must be 100mm (4 in.).

LEDs never direct cover with lters or other materials. Allowing max. ambient temperature is 40°C (104°F).

Luminaries never use without mounting brackets. The housing never install directly to the surface.

02 PRODUCT SPECIFICATION

02.1 Technical Specication

LED INDICATION STATUS

POWER (Red) blinking – 2Hz OK - inside xture is everything correct

DATA (Green) light off NO DMX512 signal

DATA (Green) blinking – 4Hz OK- income correct DMX512 signal

DATA (Green) fast blinking NON correct digital signal

POWER (Red)

alternate blinking Autotest function

DATA (Green)

Control LEDs Indication

POWER DATA

03 INSTALLATION

03.1 Unpacking

Unpack carefully. This is electronic equipment and should be handled carefully. Damaged delivered package or if are any mechanical parts broken – it must be claim immediately by the transport company. Photo pictures as evidence are valuable for future claim.

03.2 Physical installation

Loading capacity of bearing area has to be at least 10 times the weight of all device clusters (luminaries, clamps, cables, ...). Hairbreadth from combustible materials is 0,5m. Before physical installation insert the optic modul on front of luminary. The optic installation is easy and fast by 2 screws. (gures Nr. 3.1 to 3.2)

03.3 Connecting to AC power

To tackle all Safety Information- 01!

For protection from electric shock, the device must be grounded (earthed)!

It is not necessary to open the xture before power supply. Power supply is solved

simple with Neutrik PowerCon connectors.

The xture is equipped with auto-switching power supply that automatically adjusts to

any 50-60Hz AC power source from 100-260V.

Cord plug connections:

02.2 Back panel

If you have any question please, contact support@leaderlight.sk

COMPLIMENTS ON YOUR PURCHASE!

Symbol Pin Wire Colour Screw (US)

L live brown yellow or brass

N neutral blue silver

ground (earth) yellow/green green

03.4 Control data connecting

Control data cable length is specied by Norm IEC929 Annex E4. It is not necessary to open the xture before connecting of DMX512 control signal.

Interconnections are realized by Neutrik XLR 5pin In/Out connectors.

Pin connections: Pin 1 – ground Pin 2 – signal negative Pin 3 – signal positive

Content:

01 SAFETY INFORMATION

01.1 Risk of eyes damage

01.2 Protection from electric shock

01.3 Fire prevention

02 PRODUCT SPECIFICATION

02.1 Technical Specication

02.2 Back panel

03 INSTALLATION

03.1 Unpacking

03.2 Physical installation

03.3 Connecting to AC power

03.4 Control data connecting

03.5 DMX channels

04 MAINTENANCE

Lamp type: 66xRGBAW P4 * / 66xAW P4 * / 42xAW P4 * + 24xUV *

Lifetime: Long 50 000 hrs 70% degradation

Vario Optic:

10°, 25°, 40°, Eliptical (15°x90°) and Asymetrical

Control data connection:

DMX 512 In/Out with XLR 5pin

Max. input power: RGBAW/AW:110W / AWUV:120W

Power connection: 100-260V AC 50-60Hz In/Out PowerCon

Net weight: 6kg

IP: IP20

Ambient temp. (Ta): Maximum 40°C

Cooling:

Conventional

Materials and nish: Housing: powder-painted anodized aluminium in black

(other colours on request)

Installation: Surface mounting

Without optic:

LL36 104 LL36 106 LL36 108

With optic:

LL36 105 LL36 107 LL36 109

600

120

125

* P4: R-Red, G-Green, B-Blue, A-Amber, W-White (6300°K)

- UV: UV-Ultra Violet

Dip options

Rotating DIP address 000÷511

“100“ “10“ “1“

DMX Out

XLR-5pin

DMX In

XLR-5pin

Power In PowerCon

Power Out PowerCon

Control LEDs

LL S TAG E W ASH

Made in EU

Leader Light s.r.o.

Slovakia 2009

www.leaderlight.eu

sales@leaderlight.eu

MODE ADDRESS

POWER DATA

WARNING - Dis connect

mains before remove c over!

! !

WARNING!!!

Non-minimum distance and/or non-use the original brackets is at your own risk!

ENVIRONMENT

Do not throw away the appliance with the normal household waste at the end

of its life, but hand it in at an ofcial collection point for recycling. By doing

this, you help to preserve the environment.

WARNING!!! AWUV versions:

Overall allowable time of exposure of unprotected eyes in relation to the distance from the

light source results:

distance (m) 0,6m 1,0m 2,0m 3,0m

max. exposure time (h:m:s) 0:17:52 0:35:55 1:35:24 2:43:08

Following items are included:

1. Version without Vario optic

- LL STAGE WASH with adjustable bracket 1 pc.

- PowerCon type “A“ + “B“ 1 pc.

- User manual 1 pc.

2. Version with Vario optic

- LL STAGE WASH with adjustable bracket 1 pc.

- LL VARIO OPTIC WASH 600 25° 1 pc.

- PowerCon type “A“ + “B“ 1 pc.

- User manual 1 pc.

Additional items needed:

- Data cables with XLR 5pin Female/Male 1 pc.

- Controller compatible with DMX 1 pc.

- Mounting accessories as necessary

Surface mounting:

- Screws and washers M12 or M10 min. 4pcs.

03.5 DMX channels - subject to change

The latest version of DMX channels appendix are on the websites - www. leaderlight.eu

If you have any question please, contact support@leaderlight.sk

Order code Product name

LL36 104 LL STAGE WASH RGBAW 600, without optic * **

LL36 105 LL STAGE WASH RGBAW 600 VO, 25° *

LL36 106 LL STAGE WASH AW 600, without optic * **

LL36 107 LL STAGE WASH AW 600 VO, 25° *

LL36 108 LL STAGE WASH AWUV 600, without optic * **

LL36 109 LL STAGE WASH AWUV 600 VO, 25° *

Accessories:

LL37 176 LL VARIO OPTIC WASH 600 10°

LL37 177 LL VARIO OPTIC WASH 600 25°

LL37 178 LL VARIO OPTIC WASH 600 40°

LL37 179 LL VARIO OPTIC WASH 600 EL (Eliptical - 15°x90°)

LL37 175 LL VARIO OPTIC WASH 600 AS (Asymetrical)

LL37 300 LL TUBUS WASH 600 FULL

LL37 303 LL TUBUS WASH 600 B3

LL37 305 LL FRAME WASH 600 SQ3

LL37 310 LL FRAME WASH 600 R3

LL37 315 LL FRAME WASH 600 O3

LL36 400 LL FLIGHT CASE WASH 600

LL36 600 LL BRACKET STAGE WASH 600 SERIAL 200

LL36 610 LL BRACKET STAGE WASH 600 SERIAL EXTENSION

LL36 620 LL BRACKET STAGE WASH 600 PARALLEL DUAL (2pcs.)

LL36 630 LL BRACKET STAGE WASH 600 PARALLEL TRIPLE (2pcs.)

LL36 660 LL CLAMP ADAPTER STAGE WASH 600

LL36 700 LL BRACKET STAGE WASH 600 FIX

LL36 800 LL BRACKET STAGE WASH 600 ADJUSTABLE

LL36 920 LL BARNDOOR STAGE WASH 600

180°

AIMING POSSIBILITY

The xture could be aim to wish position with

adjustable bracket.

Ch. RGBAW AW AWUV

Mode1: Dip2=Off

R 1, R 2, R 3 A 1, A 2, A 3 A 1, A 2, A 3

G 1, G 2, G 3 W 1, W 2, W 3 W 1, W 2, W 3

B 1, B 2, B 3 Master (Dip1=On, Dip4=Off) UV 1, UV 2, UV 3

A 1, A 2, A 3 Strobo (Dip1=On, Dip4=Off) Master (Dip1=On, Dip4=Off)

W 1, W 2, W 3 Strobo (Dip1=On, Dip4=Off)

Master (Dip1=On, Dip4=Off)

Strobo (Dip1=On, Dip4=Off)

Mode4: Dip2=On

R 1 A 1 A 1

G 1 W 1 W 1

B 1 A 2 UV 1

A 1 W 2 A 2

W 1 A 3 W 2

R 2 W 3 UV 2

G 2 Master (Dip1=On,Dip4=Off) A 3

B 2 Strobo (Dip1=On, Dip4=Off) W 3

A 2 UV 3

W 2 Master (Dip1=On,Dip4=Off)

R 3 Strobo (Dip1=On, Dip4=Off)

G 3

B 3

A 3

W 3

Master (Dip1=On,Dip4=Off)

Strobo (Dip1=On, Dip4=Off)

Extention and control functions:

Dip4=Off, Dip1=Off =>DipBCD:

use rotating switch for DMX start address

(RS1-100, RS2-010, RS3-001) from 001 to 511

Dip4=Off, Dip1=On: address+2channels (Master+Strobo)

Dip4=On, Dip1=Off:

switch on AutoRun-table functions:

“100“=Prg.0-9, “10“=StepTime, “1“=FadeTime

Dip4=On, Dip1=On: switch all channels on 50% - test function

Dip2=Off: Mode 1 (5+2ch) Dip2=Off: Mode 1 (2+2ch) Dip2=Off: Mode 1 (3+2ch)

Dip2=On: Mode 4 (15+2ch) Dip2=On: Mode 4 (6+2ch) Dip2=On: Mode 4 (9+2ch)

Dip3=Off: standard curve

Dip3=On: ultraSoft curve

* Standard delivery with LL BRACKET STAGE ADJUSTABLE ** Vario Optic should be ordered separately

04 MAINTENANCE

To tackle all Safety Information- 01!

Damage caused by inadequate cleaning or maintenance is not covered by warranty. Regular cleaning is demand (dust, dirt, ...).

Maintenance policy:

Unplug mains before maintenance and at least 10 minutes cool off Appliance do not illegal open or demount

Clean-up dust only from outer surface (for ex. scuttle, diffuser and lenses).

Use vacuum or dumpy duster (warm water) Before reinstalling to check failure-free state – no wet parts!

Mechanical mounting of LL STAGE WASH on stage

Mounting on stage is easy using various accessories as seen below (Figures Nr. 1.1 to 1.4). The brackets are connect by Camlocs.

It is not necessary to open the xture for echange of Vario Optic (Figures Nr. 3.1 to 3.2).

3.2 Carefully remove the optic modul and insert the new one and x with screws.

1.1

Serial connection by LL36 600 for creation of continuous line

Camloc 1/4 turn fasteners

Safe mechanical quick release fastener systems Locking/unlocking by quarter turn Hand operated Service-friendly, time-saving and cost cutting Vibration-resistant

1.2 Serial connection by LL36 610 for creation of line with extension

1.4 Parallel connection by triple bracket LL36 630 1.3 Parallel connection by dual bracket LL36 620

Mechanical mounting of tubus and frame to the LL STAGE WASH

2.1 Fit the tube LL37 300 / LL37 303 part on top of tting. The tube screws screw into the tting holes.

The tube is ready to use.

Tube and frame installation without tools (Figures Nr. 2.1 to 2.2).

2.2 The frame must be installed together with tube

LL37 303

. The frame mount with screws on the

top of tube.

3.1 The optic installation is easy and fast by 2 screws.

LL36 600 LL36 610

LL36 620 LL36 630

Vario Optic installation
