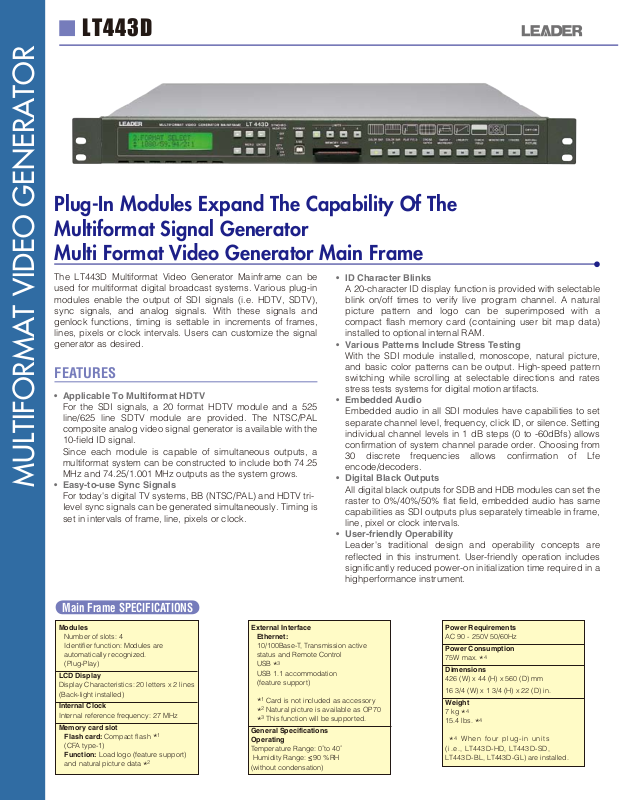

LT443D
Plug-In Modules Expand The Capability Of The
Multiformat Signal Generator
Multi Format Video Generator Main Frame
The LT443D Multiformat Video Generator Mainframe can be
used for multiformat digital broadcast systems. Various plug-in
modules enable the output of SDI signals (i.e. HDTV, SDTV),
sync signals, and analog signals. With these signals and
genlock functions, timing is settable in increments of frames,
lines, pixels or clock intervals. Users can customize the signal
generator as desired.
• ID Character Blinks
A 20-character ID display function is provided with selectable
blink on/off times to verify live program channel. A natural
picture pattern and logo can be superimposed with a
compact flash memory card (containing user bit map data)
installed to optional internal RAM.
• Various Patterns Include Stress Testing
With the SDI module installed, monoscope, natural picture,
and basic color patterns can be output. High-speed pattern
FEATURES
• Applicable To Multiformat HDTV
For the SDI signals, a 20 format HDTV module and a 525
line/625 line SDTV module are provided. The NTSC/PAL
composite analog video signal generator is available with the
10-field ID signal.
Since each module is capable of simultaneous outputs, a
multiformat system can be constructed to include both 74.25
MHz and 74.25/1.001 MHz outputs as the system grows.
MULTIFORMAT VIDEO GENERATOR
• Easy-to-use Sync Signals
For today's digital TV systems, BB (NTSC/PAL) and HDTV triIevel sync signals can be generated simultaneously. Timing is
set in intervals of frame, line, pixels or clock.
switching while scrolling at selectable directions and rates
stress tests systems for digital motion artifacts.
• Embedded Audio
Embedded audio in all SDI modules have capabilities to set
separate channel level, frequency, click ID, or silence. Setting
individual channel levels in 1 dB steps (0 to -60dBfs) allows
confirmation of system channel parade order. Choosing from
30 discrete frequencies allows confirmation of Lfe
encode/decoders.
• Digital Black Outputs
All digital black outputs for SDB and HDB modules can set the
raster to 0%/40%/50% flat field, embedded audio has same
capabilities as SDI outputs plus separately timeable in frame,
line, pixel or clock intervals.
• User-friendly Operability
Leader's traditional design and operability concepts are
reflected in this instrument. User-friendly operation includes
significantly reduced power-on initialization time required in a
highperformance instrument.
Main Frame SPECIFICATIONS
Modules
Identifier function: Modules are
automatically recognized.
(Plug-Play)
LCD Display
Display Characteristics: 20 letters x 2 lines
(Back-light installed)
Internal Clock
Internal reference frequency: 27 MHz
Memory card slot
Flash card:
(CFA type-1)
Function:
and natural picture data
4 :stols fo rebmuN
Compact flash
Load logo (feature support)
1
*
2
*
External Interface
Ethernet:
10/100Base-T, Transmission active
status and Remote Control
3
USB
*
USB 1.1 accommodation
(feature support)
1
Card is not included as accessory
*
2
Natural picture is available as OP70
*
3
This function will be supported.
*
General Specifications
Operating
Temperature Range: 0˚to 40˚
Humidity Range: ≤90 %RH
(without condensation)
Power Requirements
AC 90 - 250V 50/60Hz
Power Consumption
75W max.
Dimensions
426 (W) x 44 (H) x 560 (D) mm
16 3/4 (W) x 1 3/4 (H) x 22 (D) in.
Weight
7 kg
15.4 lbs.
*
(i . e. , LT443D -HD, LT443D-SD,
LT443D- BL, LT443D-GL) are installed.
4
*
4
*
4
*
4
W he n fo ur plug -in uni ts
Page 2
LT443D-HD HD-SDI
LT443D-SD SD-SDI
The LT443D-HD (HD-SDI Module) can generate 14 formats
HD-SDI when used with the mainframe. Available functions
include, Logo and ID Character display, embedded audio,
simple motion of sixteen test patterns or natural picture.
Natural picture display is available as Option70.
SPECIFICATIONS
Output
HD-SDI Video output : 1-system 2-outputs
Standards Supported
SMPTE 240M, SMPTE 274M, SMPTE 296M
SDI Outputs
Bit rate: 1.485, 1.485/1.001 Gbps
Amplitude: 800 mVp-p ± 10%
Overshoot: ≤10 %
Rise / fall time: ≤270 ps (20 % to 80 %)
DC offset: 0 V ± 0.5 V
Output Impedance: 75
Return loss: ≥15 dB (5 MHz to 742.5 MHz) ≥10 dB (742.5 MHz to 1.485 GHz)
Functions
Video Formats:
1080/30p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 1080/24(PsF),
1080/23.98(PsF), 720/60p, 720/59.94p
Test Patterns
Color Bar 100/75 %, Multiformat Color bar,
Flat Field 100/50 %, Line Sweep 100 %,
Multiburst 100 %, Bowtie* 100 %
Ramp, Shallow Ramp, 10 Step
Pulse & Bar, Check Field
Red Raster 100 %, Cross & Dot,
Monoscope, Natural Picture*1
*As per Tektronix
*1 Option 70
Timing Adjustment
Any position within frame
Simple Motion Picture
Set speed and direction (H, V)
ID Character
MULTIFORMAT VIDEO GENERATOR
Number of Characters: 20 max.
Embedded Audio
8 Ch (4 Ch x 2 Group)
Sampling: 48 kHz, 20/24-bit
Set frequency and level for each channel
Audio click function
Adjustable frequency, level
Sync with Video signal
Selectable non-frame number or with number
Selectable emphasis (flag only)
Frequency: 50 Hz to 20 kHz
Level: -60 to 0 dBFS (1dB step) or Silence.
Ω
1035/60i, 1035/59.94i, 1080/60i, 1080/59.94i, 1080/50i,
The LT443D-SD (SD-SDI Module) can generate 525/625 line
format for 4:2:2 component signal SDI outputs with the mainframe. Logo & ID Character display function, simple motion
of test patterns or picture can be displayed, embedded
audio & natural picture display (Option70).
SPECIFICATIONS
Output
SD-SDI Video output : 1-system 2-outputs
Standards Supported
SMPTE 125M, SMPTE 259M,
ITU-R BT 601, ITU-R BT 656
SDI Outputs
Bit rate: 270 Mbps
Amplitude: 800 mVp-p ±10%
Overshoot: ≤10%
Rise / fall time: 0.4 to 1.5 ns (from 20% to 80%)
DC offset: 0V ±0.5 V
Output Impedance: 75
Return loss: ≥15 dB (5 MHz to 270 MHz)
Functions
Video Formats:
Test Patterns
Color Bar 100/75%, EBU Color Bar, BBC Color Bar, SMPTE Color Bar, Ramp &
Color Bar: 525/625, Flat Field 100/50/0 %, Field ID, Cross Hatch, Line Sweep
100/60%, Multi Burst 100/60%, Over Size Ramp, Digital Limit Ramp, Shallow
Ramp, 10 Step,
Check Field: SMPTE RP-178
Monoscope: Normal, Invert
Bowtie 100%
Pulse & Bar
Red Raster
Multi Pulse
Natural Picture*1
Timing Adjustment
Any position within frame
(V: line, 27 MHz per clock)
Simple Motion Picture
Set speed (field, frame) and direction (H, V)
(Video only)
V: 0 to 256 lines, 2 line steps.
H: 0 to 256 dots, 4 dot steps.
ID Character (Video)
Number of Characters: 20 max.
Embedded Audio
8 Ch (4 Ch x 2 Group)
Sampling 48 kHz at 20/24-bit
Adjustable frequency, level for each channel
Audio click function: 1, 2, 3, 4 sec, none.
Sync with Video signal
Selectable non-frame number or with number
Frequency: 50 Hz to 20 kHz
Level: -60 to 0 dBFS (1dB step) Silence.
Selectable emphasis (flag only)
*1 Available in case of mainframe with natural picture option. (LT443D-70)
Ω
525/59.94 - 270MHz, 625/50 - 270MHz
This generator has all of the features and
functions of the LT443D-HD high de finition
multiformat generator plus two stand ard
HD digital blac k out puts.
LT443D-SDBLT443D-HDB
This generat or has all of the features and
functions of t he LT4 43D-SD standard
definition multi forma t gene rator plus two
standard SD dig ital black outputs.
Page 3

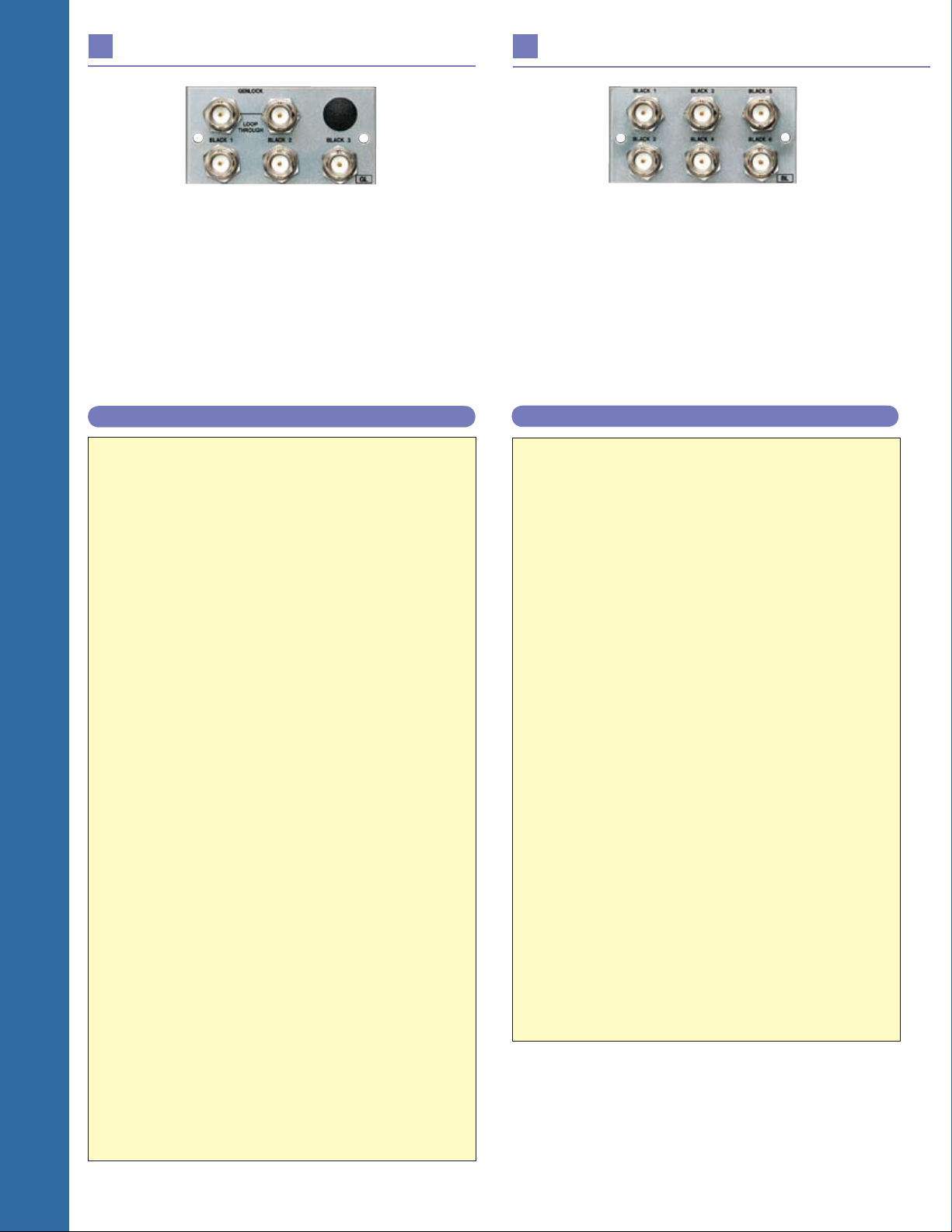

LT443D-GLA GENLOCK
LT443D-BL ANALOG BLACK
The LT443D-GLA Genlock Module has an external reference
loop through and a 3-system independent black signal
generator. External analog reference inputs can be
NTSC/PAL black burst, 14 formats of HDTV tri-level sync or
525p/625p sync. It can also accept black burst with a 10
field ID as per SMPTE 318M. Output sync signals can be
generated in 3-systems, as above, with independent timing.
Both genlock and black sync timing have a 5 frame settable
range for NTSC/PAL black burst and HDTV analog tri-level
sync signal inputs.
The LT443D-BL Analog Black Module can generate 14
formats of HDTV analog tri-level sync, 525p/625p analog
sync and NTSC/ PAL black burst signals. It consists of 3independent systems, each with 2-outputs, to provide simultaneous multiformat black sync signals. Each system can be
assigned an output format capable of independent output
timing. Also, it accepts a black signal with a 10 field ID
conforming to SMPTE 318M. In adjusting timing, the settable
range is a frame referenced to a 54 MHz clock for 525p/625p
analog sync signal and NTSC/PAL black burst signal, and a
frame by 74.25 MHz or 74.25 MHz clock for HDTV analog trilevel sync signal inputs.
SPECIFICATIONS
Genlock
Loop-through Input: BNC 75
Return loss: ≥30 dB (≥0.3 MHz, ≤30 MHz)
Reference Signal Input
Tri-level sync for HDTV: SMPTE 240M/274M/296M
525p/625p analog sync: SMPTE 293M/ITU-R BT 1358
NTSC black burst: EBU N14/SMPTE RP 154/170M/318M
PAL black burst: ITU-R BT 470-6
Reference Input Level
HDTV: Positive 300 mV, Negative -300 mV
525p/625p: -300 mV, NTSC: -286 mV, PAL: -300 mV
External Lock Range: ±10 ppm
≤
0.5 degree (burst lock),
Jitter:
Mode Switch
INT/EXT: select to AUTO or MANUAL
AUTO: EXT when sync reference is detected
INT when sync reference is absent
MANUAL: Mode is switched by INT/EXT menu
(INT mode for absent reference)
Genlock
H-PHASE (Fine): Throughout range of H-PHASE (coarse)
H-PHASE (Coarse): ±1/2 line with respect to input signal.
Resolution: 0.0741µs step
MULTIFORMAT VIDEO GENERATOR
V-PHASE: ±1 field with respect to input signal in 1 line steps.
(±1/2 frame in case of progressive)
F-PHASE: ± 5 frame with respect to input signal in 1 frame steps.
NTSC BB input, has same timing as line 1 NTSC and line 4 HDTV
Analog Sync Signal Output
Black1/Black2/Black3
Standards
Tri-level sync for HDTV: SMPTE 240M/274M/296M, 525p/625p
Analog sync signal: SMPTE 293M/ITU-R BT 1358,
NTSC black burst signal: EBU N14/SMPTE RP 154/170M/318M
PAL black burst signal: ITU-R BT 470-6
Sync Level (75 Ω)
HDTV: Pos. 300 mV ±6 mV; Neg. -300 mV ±6 mV
525p: -300 mV ±6 mV; 625p: -300 mV ±6 mV
NTSC: 40 IRE ±1 IRE; PAL: -300 mV ±6 mV
Blanking Level: 0 mV ±15 mV
Horizontal Sync Width
1125 line format: Positive: 593 ns ±40 ns Negative: 593 ns ±40 ns
750 line format: Positive: 539 ns ±40 ns Negative: 539 ns ±40 ns
525p: 2.35 µs ±0.05 µs; 625p: 2.35 µs ±0.1 µs
NTSC/PAL: 4.7 µs ±0.1 µs (NTSC/PAL)
Vertical Sync Time
Output Impedance
Return Loss: ≥30 dB (≥0.3 MHz, ≤39 MHz)
Timing Variable Range
H-PHASE: ±1/2 line
Resolution: 0.0741 µs
V-PHASE: ±1 frame
Resolution: 1 line
F-PHASE: ±5 frame
Resolution: 1 frame
: 5H (HDTV) / 6H (525p) / 5H (625p) / 3H (NTSC) / 2.5H (PAL)
: 75 Ω, 1-BNC
Ω
≤
1 ns with (sync lock)
Black 1,2/ Black 3,4/ Black 5,6 Outputs
Tri-level Sync For HDTV:
(SMPTE 240M/274M/296M)
525p/625p Analog Sync Signal:
(SMPTE 293M/ITU-R BT 1358)
NTSC black burst signal:
(SMPTE 170M/318M/RP 154)
PAL black burst signal: (ITU-R BT 470-6)
Sync Level (75 Ω)
HDTV: Pos. 300 mV ±6 mV, Neg. -300 mV ±6 mV
525p: -300 mV ±6 mV
625p: -300 mV ±6 mV
NTSC: 40 IRE ±1 IRE
PAL: -300 mV ± 6 mV
Blanking Level: 0 mV ±15 mV
Rise, Fall Time
HDTV: 54 ns ±20 ns
525p: 70 ns ±10 ns
625p: 100 ns ±10 ns
NTSC: 140 ns ±10 ns
PAL: 200 ns
Horizontal Sync Width
1125 line format
Positive: 593 ns ±40 ns
Negative: 593 ns ±40 ns
750 line format
Positive: 539 ns ±40 ns
Negative: 539 ns ±40 ns
525p: 2.35 µs ±0.05 µs
625p: 2.35 µs ±0.1 µs
NTSC/PAL: 4.7 µs ±0.1 µs (NTSC/PAL)
Vertical Sync Time:
5H (625p) /3H (NTSC) / 2.5H (PAL)
Output Impedance:
Return Loss: ≥ 30 dB (≥ 0.3 MHz, ≤ 39 MHz)
Output Connector: 2-BNC
(Black 1,2/Black 3,4/Black 5,6)
Timing Variable Range
H-PHASE: ±1 line -1 dot
Resolution: 1 dot
(54 MHz, 74.25 MHz or 74.25/1.001 MHz)
V-PHASE: ±1 frame -1 line
Resolution: 1 line
F-PHASE: ±5 frame (dependant on format)
Resolution: 1 frame
±10 ns
SPECIFICATIONS
5H (HDTV) / 6H (525p) /
Ω
75
Page 4

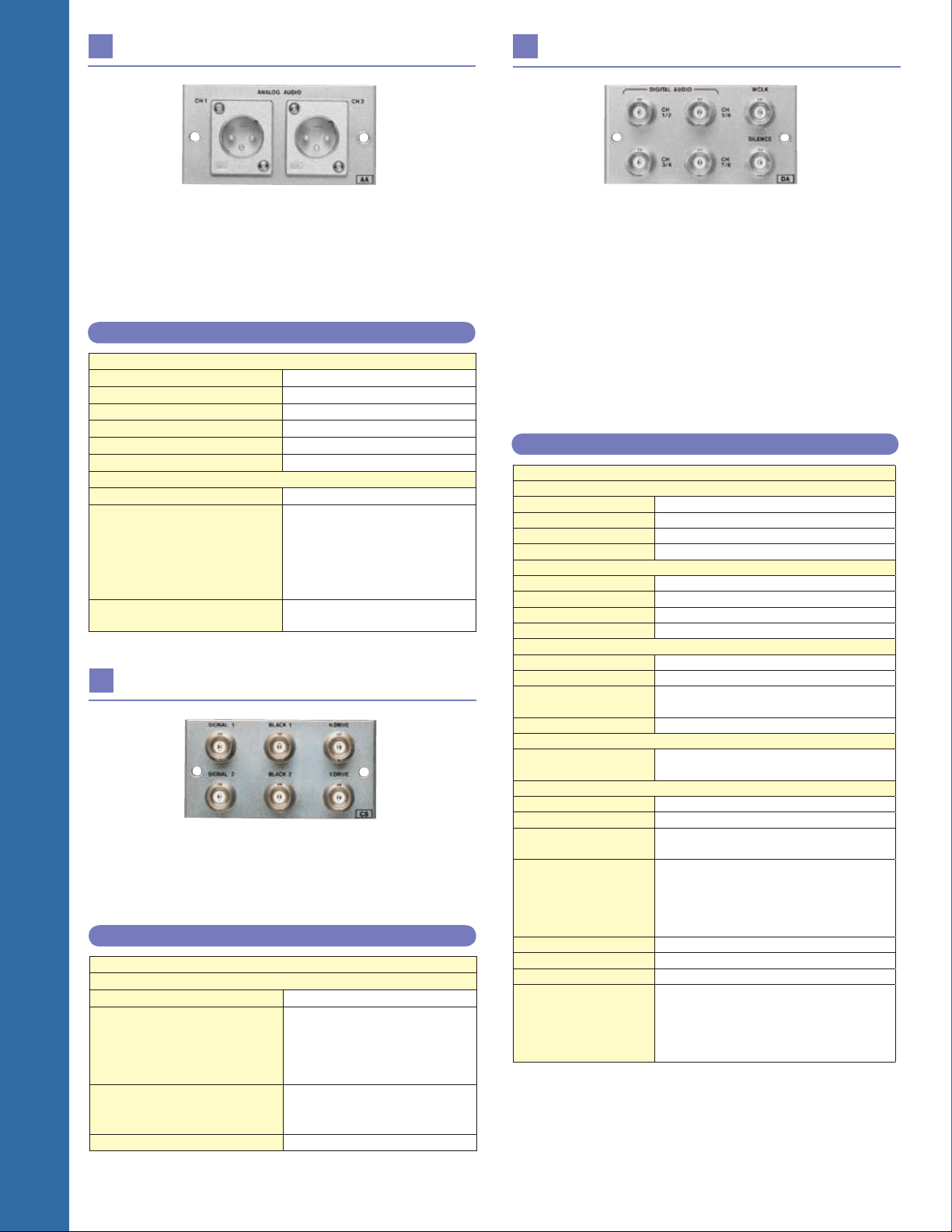

LT443D-AA ANALOG AUDIO MODULE
LT443D-DA DIGITAL AUDIO MODULE
The LT443D-AA Analog Audio Module fits into the LT443D
main frame and generates analog audio test tones. Two 600
Ohm balanced outputs are provided (each on an XLR-3P
connector.) Output level and frequency can be independently set for each output. Audio level can be swung from
-40 to 4dBm and it is settable in 1dBm steps. Test tones can
be set from 50 Hz to 20KHz (30 fixed steps) and silence.
SPECIFICATIONS
Output
Number of Outputs
Output Impedance
Output Amplitude
Output Amplitude Accuracy
Output Amplitude Flatness
Output Connector
Function
Sampling Frequency
Frequency
Level
2
600Ω, balanced
0.775 Vrms (into 600Ω at 0 dBm)
±0.5 dB (at 1 kHz)
±0.5 dB (1 kHz ref.)
XLR-3P x 2
48 kHz (Sync to video signal)
50, 100, 150, 200, 250, 300, 400,
500, 600, 750, 800, 1.0 k,1.2 k,
1.5 k, 1.6 k, 2.0 k, 2.4 k, 3.0 k,
3.2 k, 4.0 k, 4.8 k, 5.0 k, 6.0 k,
8.0 k, 9.6 k, 10 k, 12 k, 15 k, 16
k, 20 kHz, silence
-40 to 4 dBm (settable in 1 dBm
steps)
LT443D-CS ANALOG COMPOSITE MODULE
MULTIFORMAT VIDEO GENERATOR
The LT443D-CS Analog Composite Module adds the
NTSC/PAL analog composite signal output. Various functions
(e.g., ID character, simple motion pictures, natural picture
pattern *1)
*1; The Option LT443D-70 is installed in the mainframe.
SPECIFICATIONS
Output
Test Signal Output
Number of Outputs
Format
Pattern
Timing Variable
2
NTSC, NTSC+ID, NTSC+
REFERENCE,
NTSC+ID+REFERENCE,
PAL, PAL+ID, PAL+REFERENCE,
PAL+ID+REFERENCE
COLOR BAR, FLAT FIELD,
CROSSHATCH, LINE SWEEP,
others
H-PHASE, V-PHASE, F-PHASE
The LT443D-DA Digital Audio Module fits into the LT443D
main frame and generates digital audio test signals. 4 pairs
of AES/EBU audio signals are provided for a total of 8 channels; each pair is output onto a 75 Ohm BNC. Output level,
frequency and audio click can be independently set for each
output. Digital audio level can be swung from -60 to 0 dBFS
and it is settable in 1dB steps. Test tones can be set from
50Hz to 20KHz (30 fixed steps) and silence. Sampling
frequency is fixed at 48KHz and it is synced to the video
signal from the LT443D; audio to video timing can be varied.
20 and 24 bit resolutions are supported.
The module also provides a word clock output, as well, a
separate output (1 BNC, 2 channels) of silence signal (DARS
grade 2) is also provided.
SPECIFICATIONS
Output
AES/EBU Digital Audio Output
Number of Outputs:
Output Impedance:
Output Amplitude:
Output Connector:
Silence Signal (DARS grade 2) Output
Number of Outputs:
Output Impedance:
Output Amplitude:
Output Connector:
48 kHz Word Clock
Number of Outputs:
Output Impedance:
Output Amplitude:
Output Connector:
Signal Specifications
Specifications
Function
Sampling Frequency
Resolution
Preemphasis
Frequency
Level
Audio Click
Output ON/OFF
Timing
Frequency, level, and audio click can be set to each channel. Other items
*
(except timing) can be respectively set to the 2-channel outputs.
4 (2-channel outputs)
75Ω, unbalanced
1 Vp-p ±0.1 V (into 75Ω)
BNC
1 (2-channel outputs)
75Ω, unbalanced
1 Vp-p ±0.1 V (into 75Ω )
BNC
1
75Ω, unbalanced (1 Vp-p output)
1 Vp-p ±0.1 V (into 75Ω ), 5 V CMOS,
selectable
BNC
ANSI S4.40 (AES3-1992), AES11-1997
SMPTE 276M, AES-3id-2001
48 kHz (sync to video signal)
20 bits, 24 bits, selectable
OFF, 50/15 µs, CCITT, selectable(CS bit
can only be selected.)
50, 100, 150, 200, 250, 300, 400, 500,
600, 750, 800,1.0 k, 1.2 k, 1.5 k, 1.6 k, 2.0
k, 2.4 k, 3.0 k, 3.2 k, 4.0 k, 4.8 k, 5.0 k,6.0
k, 8.0 k, 9.6 k, 10 k, 12 k, 15 k, 16 k, 20
kHz, silence
-60 to 0 dBFS (settable in 1 dB steps)
1, 2, 3, 4 sec, none
Selectable
Variable Range: ±1 AES/EBU frame
Settable in 512 fs (24.576 MHz) steps
Video Unit installed in the LT443D mainframe.
The settings are common to the digital audio,
silence and word clock signals.
eht ot tcepser htiw deirav eb nac gnimit ehT *
Loading...
