PHABRIX®
broadcast excellence

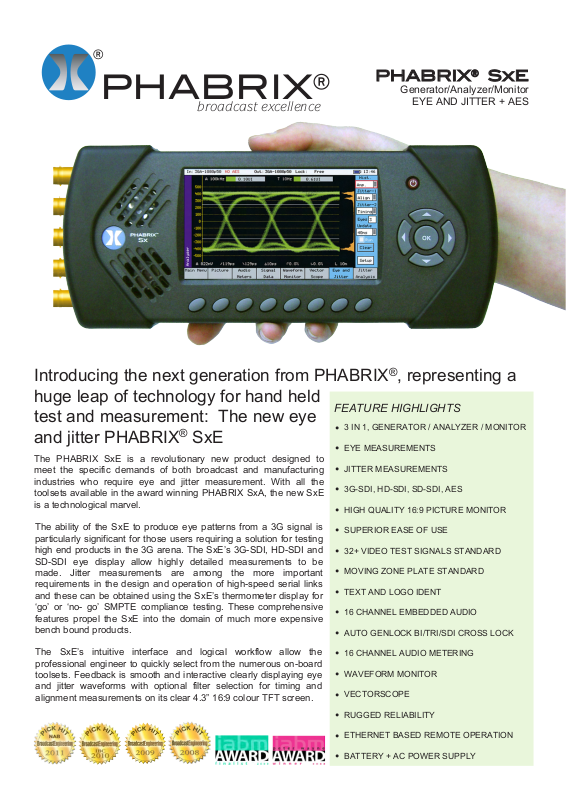

PHABRIX® SxE
Generator/Analyzer/Monitor
EYE AND JITTER + AES
Introducing the next generation from PHABRIX®, representing a
huge leap of technology for hand held
FEATURE HIGHLIGHTS
test and measurement: The new eye
3 IN 1, GENERATOR / ANALYZER / MONITOR
•
and jitter PHABRIX® SxE
EYE MEASUREMENTS
•
The PHABRIX SxE is a revolutionary new product designed to
meet the specific demands of both broadcast and manufacturing
industries who require eye and jitter measurement. With all the
toolsets available in the award winning PHABRIX SxA, the new SxE
is a technological marvel.
The ability of the SxE to produce eye patterns from a 3G signal is
particularly significant for those users requiring a solution for testing
high end products in the 3G arena. The SxE’s 3G-SDI, HD-SDI and
SD-SDI eye display allow highly detailed measurements to be
made. Jitter measurements are among the more important
requirements in the design and operation of high-speed serial links
and these can be obtained using the SxE’s thermometer display for
‘go’ or ‘no- go’ SMPTE compliance testing. These comprehensive
features propel the SxE into the domain of much more expensive
bench bound products.
The SxE’s intuitive interface and logical workflow allow the
professional engineer to quickly select from the numerous on-board
toolsets. Feedback is smooth and interactive clearly displaying eye
and jitter waveforms with optional filter selection for timing and
alignment measurements on its clear 4.3” 16:9 colour TFT screen.
JITTER MEASUREMENTS
•
3G-SDI, HD-SDI, SD-SDI, AES
•
HIGH QUALITY 16:9 PICTURE MONITOR
•
SUPERIOR EASE OF USE
•
32+ VIDEO TEST SIGNALS STANDARD
•
MOVING ZONE PLATE STANDARD
•
TEXT AND LOGO IDENT
•
16 CHANNEL EMBEDDED AUDIO
•
AUTO GENLOCK BI/TRI/SDI CROSS LOCK
•
16 CHANNEL AUDIO METERING
•
WAVEFORM MONITOR
•
VECTORSCOPE
•
RUGGED RELIABILITY
•
ETHERNET BASED REMOTE OPERATION
•
BATTERY + AC POWER SUPPLY
•
SDI AES SDI AES REF
OUT OUT IN IN IN
MONITOR
Display resolution
Display type
Display size
Processing
VIDEO
SDI
Outputs
Inputs
Genlock
Adjustable timing
Text Ident
Logo ident
EDH
VIDEO TEST SIGNALS
Resolution
Static Test patterns
User defined
Zone plate
Phabrix®
Sx
Eye Display with Jitter Thermometers
480 x 272 pixels auto
scaling 16:9 24 bit color TFT
95 x 54 mm
All digital
3G-SDI, HD-SDI, SD-SDI
1 x 75 Ohm BNC
1 x 75 Ohm BNC
Bi/Tri/SDI with cross lock
0 to 1 Frame
Yes with font, color, point size
Yes
Yes (SD-SDI)
10 bits
32+ including full frame
DPX, YUV, TGA, BMP
Yes
OK
PHABRIX® SxE
3 in1 Generator/Analyzer/Monitor with Eye and
Jitter
AUDIO USB LAN DC 5V
VIDEO INPUT/OUTPUTS
SMPTE formats supported See ww.phabrix.com
3Gbps,1.485Gbps, 270 MbpsEye bit rates
Jitter
Jitter thermometers
SMPTE specification filters
Alignment, Timing
AUDIO
0.5 wattsInternal speaker
Audio DAC
Headphone socket
Generator/Monitor
24 bit stereo
3.5 mm with auto line out
48 kHz 20-bit (SD-SDI) 24-bit (HD-SDI)
16 channel embedded audio Yes
1 x 75 Ohm BNCAES output
AES onput 1 x 75 Ohm BNC
AUDIO TEST SIGNAL
Fixed tones
Variable tones
Intermittent Tone
White noise generation
Audio levels variable
Audio phase invert
17
1Hz-24Khz in 1Hz steps
Yes
Yes
0 to -100dB in 1dB steps
Yes
GENERAL
Navigation panel
Integral battery supply
Internal Storage
Remote control
Ethernet/USB
Carry case
AC power supply
Security
Size
5 menu keys, 8 custom select
3 hours lithium polymer
1GB (upgradable)
Web Browser Interface
Yes
Included
Included (universal)
Kensington™ lock fitting
H: 92mm W: 225mm D: 42mm
Schematic of the PHABRIX SxE (EYE & JITTER version)
AC Power Supply and Carrying Case as standard
Represented in the Americas by
LEADER INSTRUMENTS CORPORATION
Email: Sales@LeaderAmerica.com
Phone: (714) 527-9300
Toll Free: (800) 645-5104
www.LeaderAmerica.com
