MONITOR

WAVEFORM

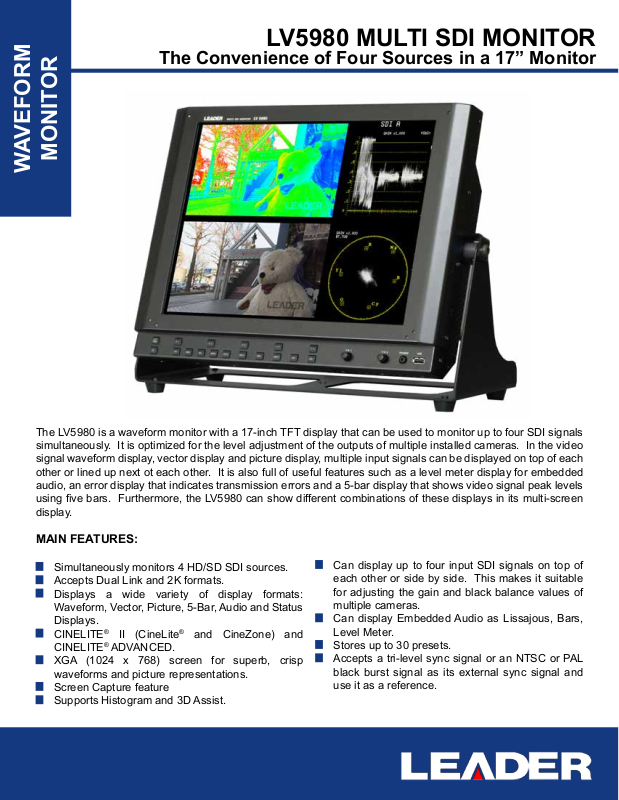

LV5980 MULTI SDI MONITOR

The Convenience of Four Sources in a 17” Monitor

The LV5980 is a waveform monitor with a 17-inch TFT display that can be used to monitor up to four SDI signals
simultaneously. It is optimized for the level adjustment of the outputs of multiple installed cameras. In the video
signal waveform display, vector display and picture display, multiple input signals can be displayed on top of each
other or lined up next ot each other. It is also full of useful features such as a level meter display for embedded
audio, an error display that indicates transmission errors and a 5-bar display that shows video signal peak levels

using ve bars. Furthermore, the LV5980 can show different combinations of these displays in its multi-screen

display.

MAIN FEATURES:

Simultaneously monitors 4 HD/SD SDI sources.
Accepts Dual Link and 2K formats.
Displays a wide variety of display formats:

Waveform, Vector, Picture, 5-Bar, Audio and Status
Displays.

CINELITE® II (CineLite® and CineZone) and

CINELITE® ADVANCED.

XGA (1024 x 768) screen for superb, crisp

waveforms and picture representations.
Screen Capture feature
Supports Histogram and 3D Assist.

Can display up to four input SDI signals on top of

each other or side by side. This makes it suitable
for adjusting the gain and black balance values of
multiple cameras.

Can display Embedded Audio as Lissajous, Bars,

Level Meter.
Stores up to 30 presets.
Accepts a tri-level sync signal or an NTSC or PAL

black burst signal as its external sync signal and

use it as a reference.

(a) SDI Inputs (ch A / ch B)

SDI Output (ch A/B)

(b) EXT REF Loop Through

(c) SDI Inputs (ch C / ch D)

SDI Output (ch C/D)

(d) DC Input

LV5980 Posterior Panel

DIMENSIONS (W x H x D): 16 3/4” x 13 7/8” x 3 3/4” (425mm x 352mm x 95mm)

WEIGHT: 5.2 Kg (11.46 lbs)

ENVIRONMENTAL CONDITIONS:

Operating Temperature Range: 0

o

C to 40o C

Operating Humidity Range: less than 85% RH (without condensation)

POWER REQUIREMENTS:
Voltage: 10 to 18 VDC
Power Consumption: 60 W max.

OPTIONAL ACCESSORIES:

Tilt Stand (LC 2160)

Rack Support (LR 2755)

LCD Protection Panel (LC 2132)

Battery Mount

LEADER INSTRUMENTS CORPORATION

11095 Knott Avenue, Suite B - Cypress, CA 90630

[e-mail] www.LeaderAmerica.com

Revision 01/13
