LDG RBA-4:1Balun
LDG RBA-1:1Balun
Table of Contents
Features 1
Specifications 1
Preparation 2
An important word about power levels: 2
Installation 2
Care and Maintenance 6
Technical Support 6
Warranty and Service 6
Introduction
Congratulations on selecting the LDG balun. Your LDG balun allows you to connect longwires
and antennas fed with ladder line to your LDG tuner. Two versions are available: the RBA-4:1
provides a 4:1 impedance transformation, while the RBA-1:1 has 52 ohm input and output.
LDG pioneered the automatic, wide-range switched-L tuner in 1995. From its laboratories near our
nation’s capitol, LDG continues to define the state of the art in this field with innovative automatic tuners
and related products for every amateur need. The RBA-4:1 and RBA-1:1 are valuable accessories for any
LDG tuner, extending its usefulness to virtually all types of antennas and transmission lines in amateur
use.
Features
• Compact, sturdy construction
• Standard SO-239 jack for coax input
• Twist-on binding posts for ladder line, longwire or random wire attachment
• Can be waterproofed for outdoor use
• Broadband operation; covers the entire HF spectrum from 1.8 – 30 MHz
• Handles up to 200 watts continuously
Your LDG balun performs two important functions:
1. It provides a convenient connection interface between coaxial cable and either ladder line or a
longwire antenna
2. It converts from an unbalanced source (e.g., a transmitter or tuner with coaxial output) to a balanced
transmission line (e.g., ladder line)
In addition, the RBA-1 provides a 4:1 impedance conversion permitting use of higher impedance antennas and
transmission lines.
Specifications
• Weight: 6 oz (with enclosure)
• Frequency Coverage: 1.8 to 30 MHz
• Power Range: to 200 watts
• Easy to weatherproof
• Size overall: 5 x 2.5 x 1.25 inches
• Impedance transformation 1:1 or 4:1
1
Page 2
Preparation
As it comes from the factory your LDG balun is water resistant. There are neoprene seals under the SO-239
coax socket and the two binding posts. If the balun is mounted with the removable lid (back) facing down
(that is, with the writing facing up), it is reasonably water resistant. You can make it completely waterproof
and suitable for direct exposure to the weather at any mounting angle for outdoor use if you wish. Simply
apply a bead of Silicone caulking material (available at any hardware store) around the back plate seal, and
let it dry before use.
Waterproof here
An important word about power levels:
Your LDG balun is rated at 200 watts continuous power input at most. Some ham transmitters and
transceivers, and virtually all amplifiers, output well over 200 watts. Power levels significantly exceeding
specifications will definitely damage or destroy your LDG balun. If the balun fails under extreme overload,
your transmitter and tuner could also be damaged. Be sure to observe the specified power limitations.
IMPORTANT SAFETY WARNING
Never install antennas over or near power lines. You can be seriously injured
or killed if any part of the antenna touches the power line. Always follow this
antenna safety rule: the distance to the nearest power line should be at least
twice the length of the longest antenna dimension.
Installation
You will install your LDG balun between your tuner (or transmitter/transceiver if you are not using a
tuner) and your antenna. You can attach it directly to the SO-239 output jack of your tuner or
transmitter/transceiver, or you can install it remotely at the end of any length of 52 ohm coaxial cable.

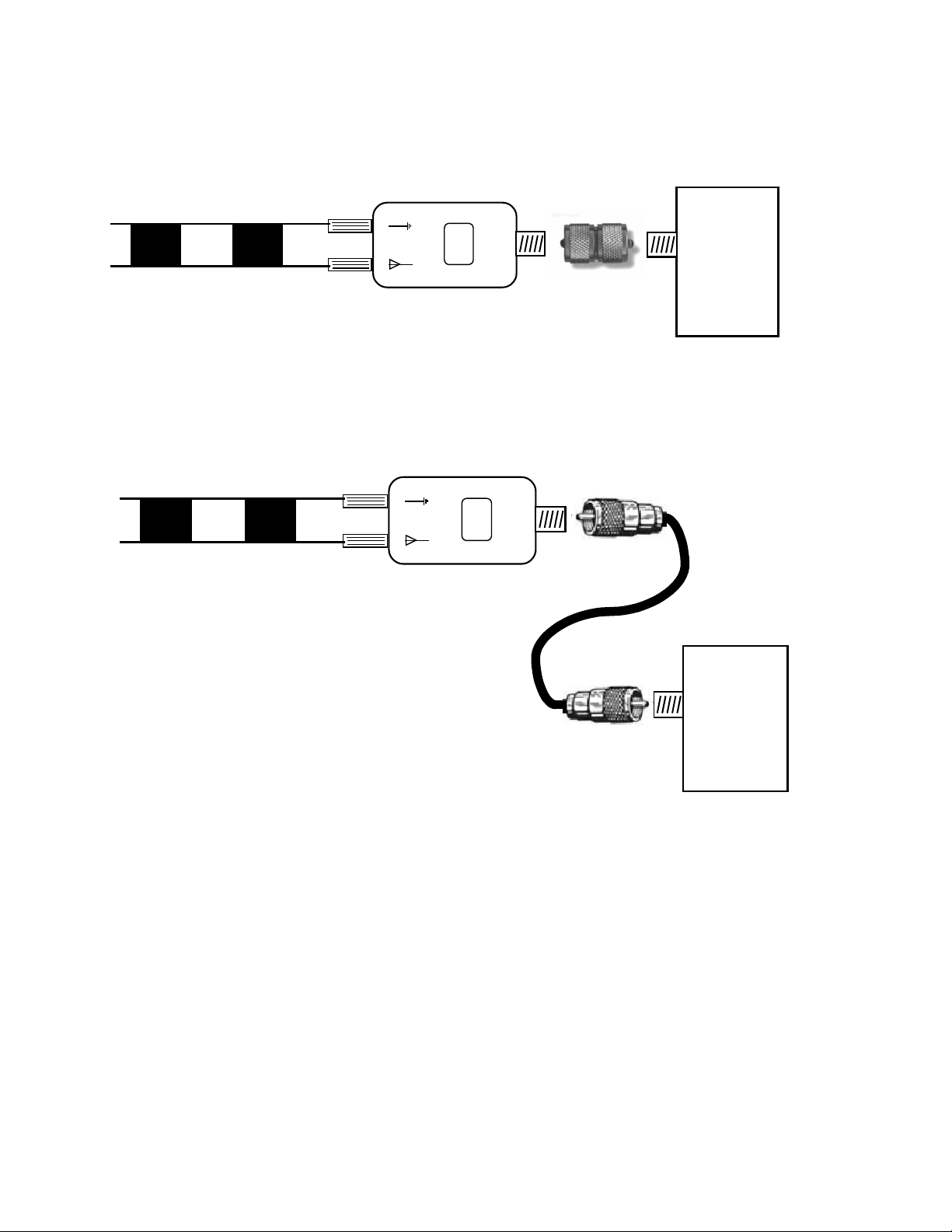

Direct connection:
You can mount your LDG balun directly to the output jack of your tuner using a male-male PL-259
adapter (not supplied). Simply attach the adapter to the balun, then attach the balun to the output jack.
Make sure the balun has adequate mechanical support, so it does not place excessive torque on the antenna
jack of your tuner or radio.
2
Page 3
This type of connection is only recommended if the tuner is mounted remotely or the operating position is
outdoors. The use of ladder line indoors can sometimes lead to RFI issues near the operating position.
Whenever possible, use the remote connection as shown below.
Balanced
Ladder Line to antenna
LDG
Electronics
RBA-1 4:1 Balun
Unbalanced
Antenna
Tuner
Remote connection:
You can mount your LDG balun remotely, connecting it to your tuner with any length of 52 ohm coaxial
cable of suitable power handling capacity (typically RG-58, or some version of RG-8). Properly soldered
PL-259 connectors will be far more satisfactory than crimp-on or “solderless” connectors. If you mount
your balun outdoors and exposed to direct weather, LDG recommends that you waterproof it as described
above.
RBA-1 4:1 Balun
LDG
Electronics
Unbalanced
52 Ohm Coax
(any length)
Balanced
Ladder Line to antenna
Antenna
Tuner
A note about ladder line: unlike coax, ladder line performance can be strongly influenced by conductive
elements nearby, such as aluminum house siding, gutters, other wires or the earth. You must take care to
route your ladder line correctly, using standoffs and insulators as needed. To avoid a degradation of
performance, mount your balun remotely and use coaxial cable to connect to the tuner or radio.
Longwire and Random antennas:
Longwire and Random antennas are typically elevated wires at least one half wavelength long at the
lowest frequency to be used. As a general rule, the higher the better, and the longer the better. Longwire
antennas are somewhat directional; the main lobe is along the direction of the wire. Performance of any
longwire antenna will depend in large part on the quality of the ground connection.
If the Longwire or Random wire is less that one half wavelength, then it is typically referred to as a short
wire antenna. For short wire antennas, use a 1:1 balun for best performance.
Any Longwire or Random wire must be connected to ground or a counterpoise wire for best results.
3
Page 4

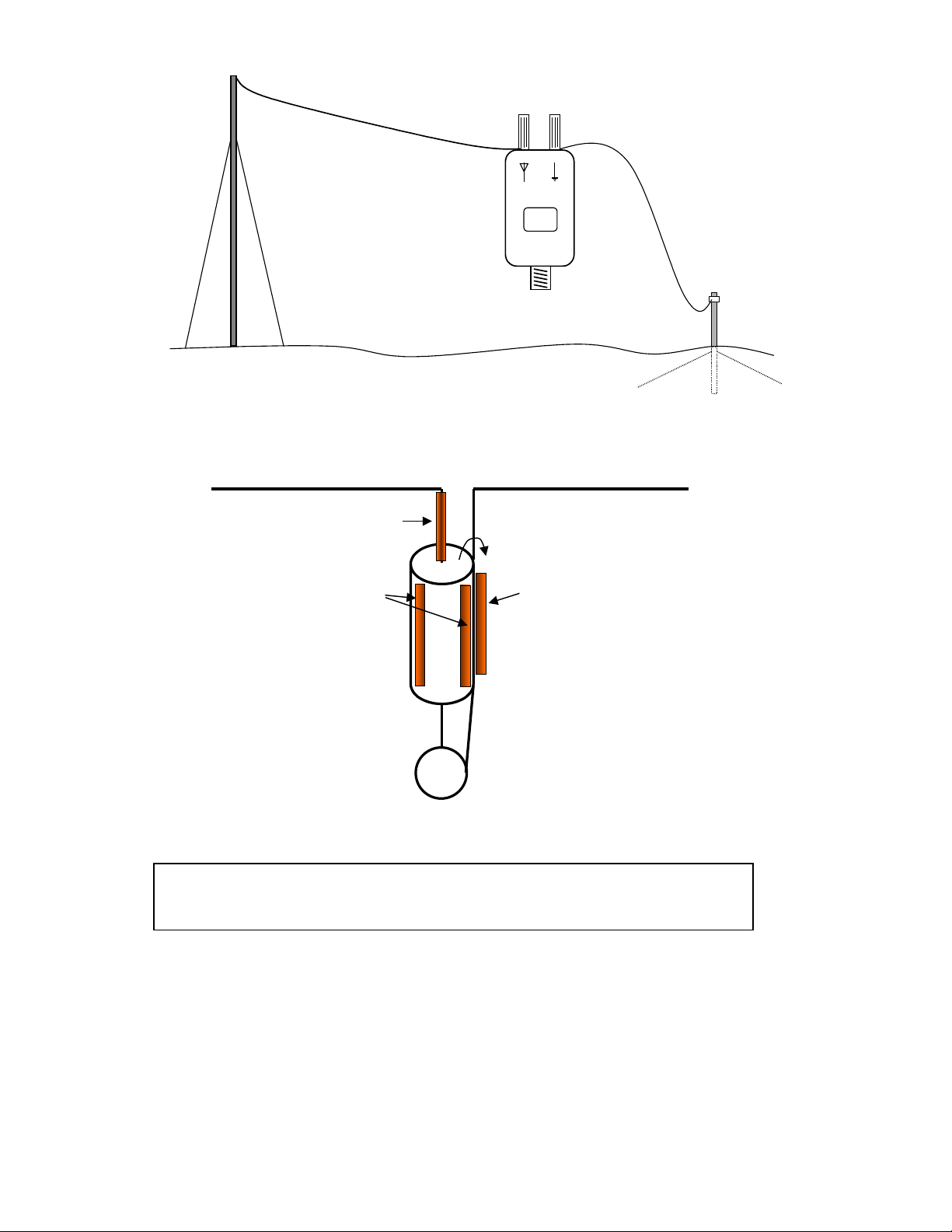

Longwire antenna (generally
one wavelength or longer)
Ground wire (as
short as possible)
Buried ground
system
Antenna support
(tower, post, tree, etc)
Balanced
RBA-1 4:1 Balun
LDG
Electronics
Unbalanced
To
tuner
(Not to scale)
1/2 wavelength dipole
Center conductor current
Inside shield current
Coax
Outside “common-mode”
shield current due to
balanced-to-unbalanced
transition
~
Transmitter
LDG strongly recommends that you use a high-quality, properly
installed lightning arrestor in all your antenna feed lines.
Theory of operation:
Virtually all amateur transmitters and transceivers in use today, and all LDG tuners, are designed with an
unbalanced output. This means that the output signal appears on a single conductor referenced to a
grounded second conductor. Most amateur transmitters use a “pi network” output, and LDG tuners employ
a “switched-L” network, both of which feature an unbalance output. These output sections are designed to
be used with coaxial cable, an unbalanced transmission line. The signal is carried on the center conductor,
4
Page 5
and the reference ground is the inside surface of the shield1; the two signals are equal in amplitude but 180
degrees out of phase. These two out-of-phase signals cancel each other out along the length of the coax,
preventing it from radiating, and delivering almost all of the RF energy to the antenna feedpoint.
Many commonly used amateur antennas are balanced antennas; examples include a dipole, and the driven
element of a Yagi-Uda array (a “Yagi” antenna). A balanced antenna features two equal electrical
elements driven 180 degrees out of phase. It is common amateur practice to feed such antennas directly
with coaxial cable, an unbalanced transmission line. At the interface between the unbalanced transmission
line and the balanced antenna, an extraneous current flow is created on the outside of the coax shield. This
is called a “common-mode” current, as it is in the same direction as the signal on the center conductor.
This common-mode current has three disadvantages. First, it radiates a signal that can distort the radiation
pattern of the antenna. For example, the symmetrical “figure eight” pattern of a dipole can be distorted into
a highly asymmetric blob who’s performance is difficult or impossible to predict. Second, this radiation
subtracts from the useful RF energy radiated to the receiving station. Third, the RF on the outside of the
shield can be conducted back into the transmitter, causing problems such as distorted transmit audio.
The term “balun” stands for “bal
anced-unbalanced”. A balun is a matching transformer designed to

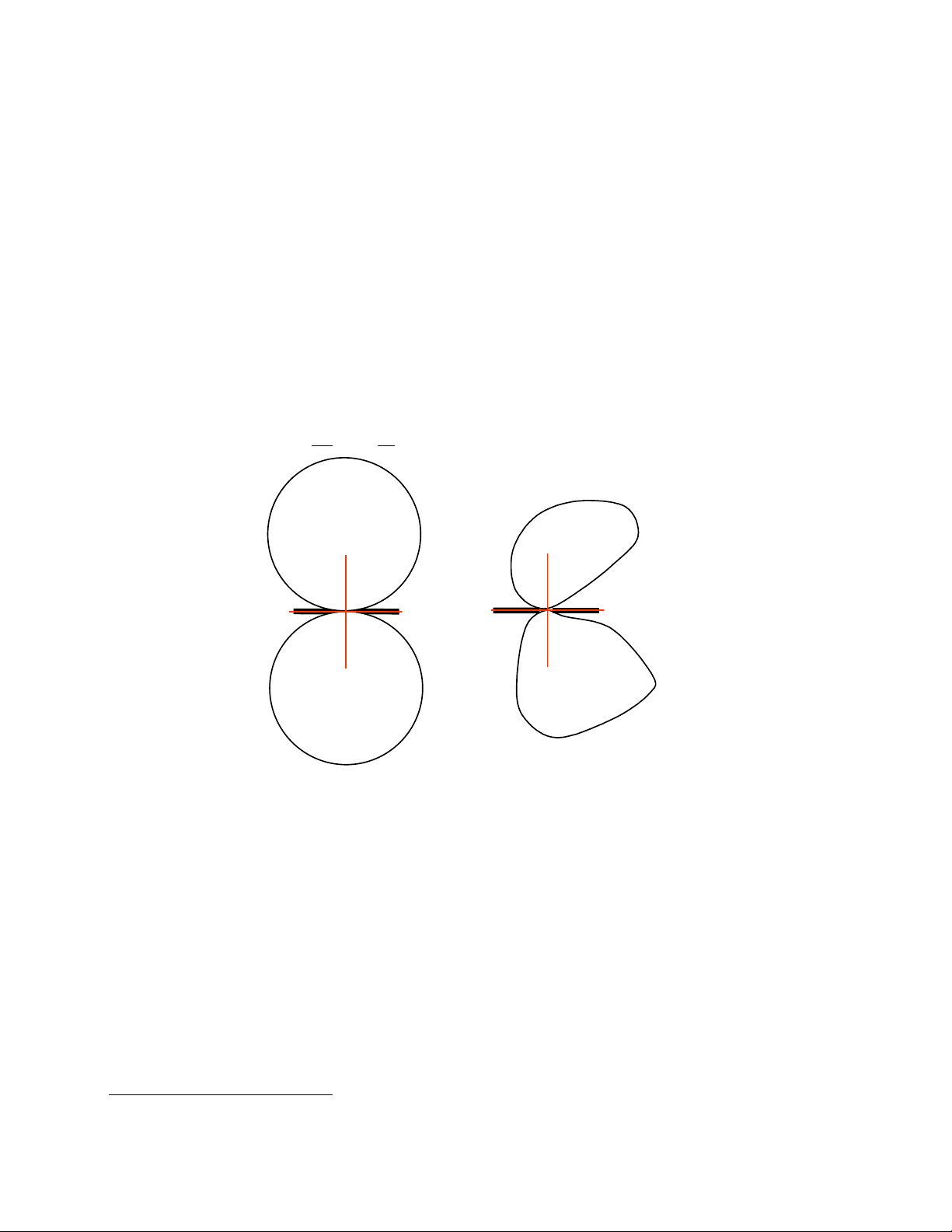

0
270
180
Normal dipole
“figure eight”
radiation pattern
90
270
Distorted radiation
0
90
180
pattern due to
common-mode
coax radiation
interface between unbalanced transmission lines and balanced antennas, or between the unbalanced output
section of a transmitter or tuner and a balanced transmission line. Some baluns also act as an impedance
matching transformer, converting the lower impedance of the transmitter to the higher impedance of
certain transmission lines. In principal, you should use a balun at the feedpoint of a dipole where the coax
is attached. However, in practice, the diameter of the coax is usually such a small fraction of the feedline
length that the effects can be largely ignored
2
.
A more significant problem is using ladder line to feed a high-impedance antenna such as a folded dipole
or loop. Ladder line has several advantages over coax that recommend it in some applications. However,
the transition from the unbalanced output section of the transmitter or tuner to the balanced transmission
1
The so-called “skin effect” confines RF currents to the surface of conductors.
2
It is common to address this problem by making a choke at the feedpoint by coiling the coax.
5
Page 6
line can create significant problems. A balun must be used in this case, both to make the unbalanced-to-
d
balanced transition, and also to match the higher impedance if needed.
There are two general classes of balun: voltage and current. Voltage baluns place an inductance across the
load, and present an equal RF voltage on both sides of the balanced output. This creates a balanced RF
current in each side of the load in the degree that they are electrically equal. Current baluns do not place an
inductance across the load, and present an equal current in each side of the balanced output over a
somewhat wider range of conditions. Current baluns also have a somewhat wider bandwidth. The LDG
RBA-1:1 is a current balun, while the RBA-4:1 is a voltage balun.

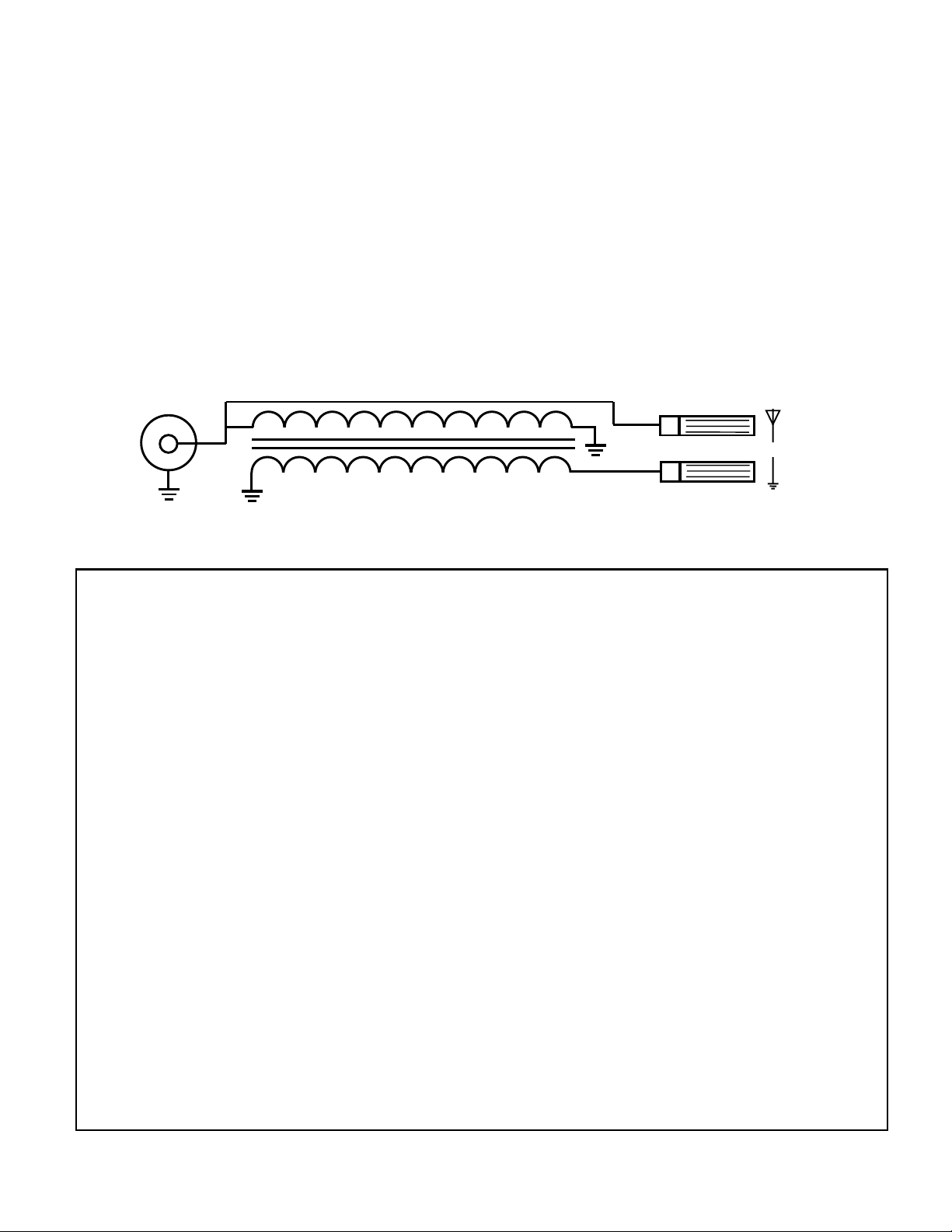

Your LDG balun consists of two bi-filar windings of heavy insulated wire on a toroid core of highpermeability ferrite. These windings form a low-loss transformer that performs the balanced-to-unbalanced
conversion, and in the case of the RBA-4:1, acts as a 4:1 impedance matching transformer as well.
UnBalanced
RBA-4:1
Balance
Bifilar turns #18
SO-239
wire on FT-125 toroid
connector
Care and Maintenance
Your LDG balun is essentially maintenance-free; just be sure to observe the power limits discussed in this
manual. Avoid getting the balun wet, unless you have waterproofed it as discussed above. The outer case
may be cleaned as needed with a soft cloth slightly dampened in household cleaning solution. LDG
strongly recommends that you use a good quality, properly installed lightning arrestor in the antenna lead.
Technical Support
We are happy to help you with your LDG balun. Telephone technical support is available at 410-586-2177
weekdays from 9 am to 5 pm Eastern Time. Inquiries by Fax at 410-586-8475 are welcome, and prompt email support is available at ldg@ldgelectronics.com.
Warranty and Service
Your LDG balun is warranted against defects in parts or workmanship for two years from purchase. The
warranty does not cover damage due to abuse or exceeding specifications. This warranty applies to the
original purchaser only; it is not transferable. A copy of the receipt showing the purchaser’s name and the
date of purchase must accompany units returned for warranty service. All returns must be shipped to us
pre-paid; we will not accept units with postage due. A return form is provided on our web site for your
convenience.
If you need to return your LDG balun to us for service, package it carefully, keeping in mind that we will
re-use your packaging to return the unit to you. A self-addressed return-shipping label, while not required,
will help insure speedy and accurate delivery of your repaired unit. Include a full description of the
problem, along with your name, address and a phone number or e-mail address where we can reach you
with any questions. Repairs average about 2 to 4 weeks.
We will be glad to service your balun after the warranty period has ended. We will notify you of repair
charges by phone or e-mail, and bill you after repairs are completed.
Binding
connectors
