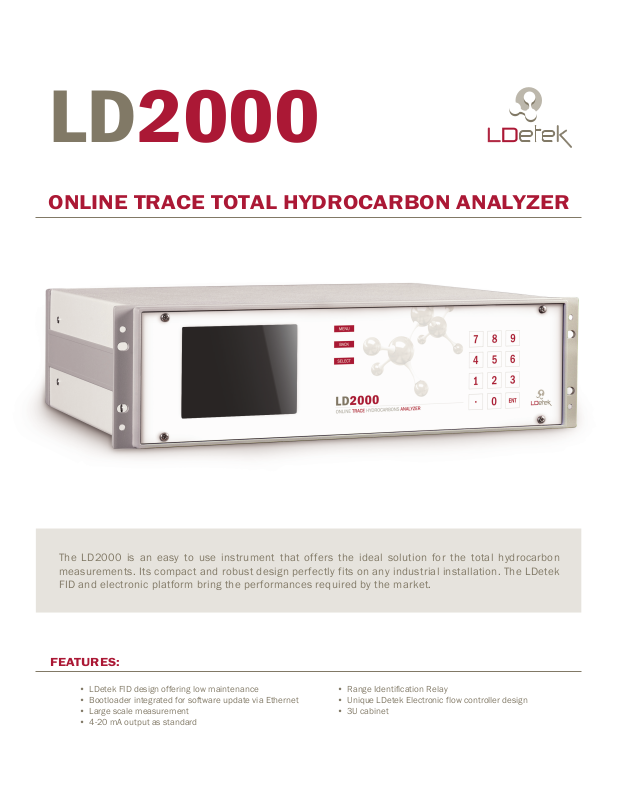

LD2000
ONLINE TRACE TOTAL HYDROCARBON ANALYZER
The LD2000 is an easy to use instrument that offers the ideal solution for the total hydrocarbon
measurements. Its compact and robust design perfectly fits on any industrial installation. The LDetek
FID and electronic platform bring the performances required by the market.
FEATURES:
• LDetek FID design offering low maintenance
• Bootloader integrated for software update via Ethernet
• Large scale measurement
• 4-20 mA output as standard
• Range Identification Relay
• Unique LDetek Electronic flow controller design
• 3U cabinet
Page 2
APPLICATIONS:
• Air separation unit
• Cryogenic truck loading station
• Speciality gas laboratories
• Process control
• Steel Industries
• Chemical plants
• Welding gas control
• Gas management system
• Quality control for truck fills and gas cylinders
SPECIFICATIONS:
DETECTOR TYPE Flame Ionisation Detector
RANGE 0–10 ppm
0–100 ppm
0–1000 ppm
other range possible
REPEATABILITY < 1% full scale
ACCURACY Better than ±1% full scale
STANDARD FEATURES
• Manual or autoranging (user selectable)
• Microprocessor controlled
• 5.6” TFT intelligent LCD module with Touch Screen
• Self diagnosis system with auto-resolve alarm
• 4-20 mA isolated output
• Alarm Historic
• Digital ouputs for remote monitoring: (all dry relay contacts)
- System status (1 output)
- Range in use (3 output)
- Calibration in use (1 output)
• Safety
• Product validation
• Scrubber & oxidizer efficiency
• Carbon bed breakthrough detection
• Well logging
• Industrial hygiene & safety monitoring
• Fence line (perimeter) monitoring around industrial sites
• CEMS (continuous emission monitoring systems)
OPTIONS
GAS CONNECTIONS
CALIBRATION GAS
SAMPLE FLOW REQUIREMENTS
AIR FLOW REQUIREMENTS
FUEL FLOW REQUIREMENTS
RECOMMENDED MAXIMUM
OPERATING PRESSURE
RECOMMENDED MINIMUM
OPERATING PRESSURE
OPERATING TEMPERATURE
SUPPLY
POWER CONSUMPTION
DRIFT
• Serial port: RS-232 / 422 / 485 / Profibus
• 2 alarm outputs (user programmable set point)
Sample: 1/8’’ compression fittings
Vent: 1/8’’ compression fitting
Zero: LDP1000 purified gas (Getter)
Span: 80%-90% of full scale of methane
50 to 200 sccm
200 to 600 sccm
40 to 150 sccm
40 PSIG
10 PSIG
10 °C to 45 °C
115 VAC
50 – 60 Hz or 220 VAC
50 – 60 Hz
Maximum 50 watts
< ± 1% over 24 hours
WEIGHT
27 lbs (12 kg)
Page 3
ORDERING INFORMATION:

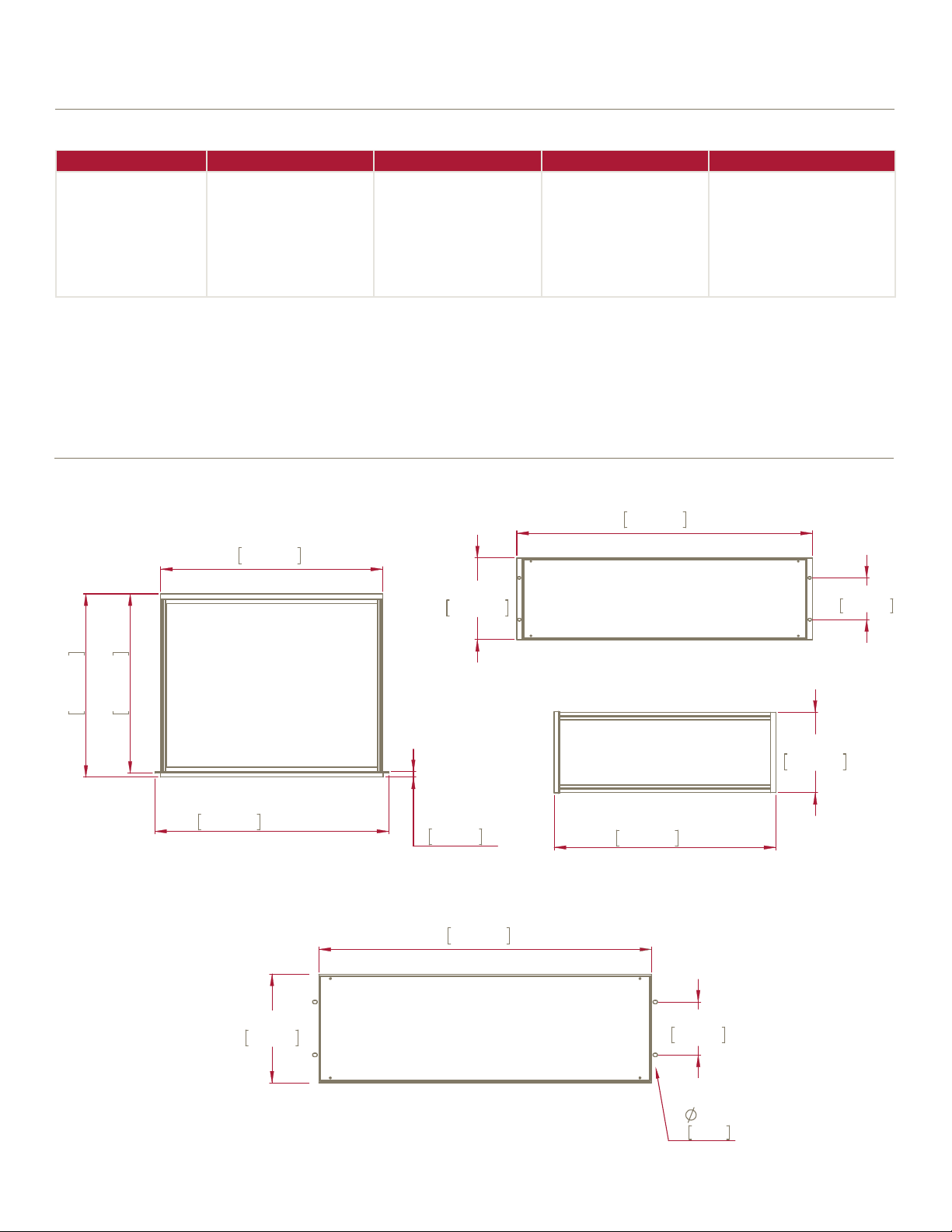

DIMENSIONS:
-X -XXX -X -XXXLD2000
Ar:
H:
O:
N:
A:
Argon
Helium
Oxygen
Nitrogen
Air
446 mm
17.56 in
Operating Voltage:
120: 120 volts
220: 220 volts
132.5 mm
5.22 in
--
A: Alarm option
482 mm
18.98 in
FRONT VIEW
Serial communication
RS2: RS-232
RS4: RS-485
PFB: Profibus
58.5 mm
2.3 in
14.74 in
374.5 mm
14.07 in
357.5 mm
482 mm
18.98 in
TOP VIEW
136.5 mm
5.37 in
13 mm
0.51 in
450 mm
17.72 in
CUT OUT DIMENSIONS
FOR RACK MOUNTING
SIDE VIEW
374.5 mm
14.74 in
132.5 mm
5.22 in
58.5 mm
2.3 in
8 mm
0.31
Page 4
Where innovation leads to success
271 St-Alphonse Sud, Thetford Mines, (Qc), Canada, G6G 3V7
Phone: 418 755-1319 • Fax: 418 755-1329 • [email protected] www.ldetek.com
©Copyright 2014 LDetek inc.
PRINTED IN CANADA
