Page 1
Instruction Manual
Air boat
User manual and video please visit:WWW.LDARC.COM
180731
Page 2
TINY Q*1 KIT+Motor*1
Package List
FC : F3(Betaflight SPRACINGF3)
VTX : 25mW/16CH
Camera : 199C(800TVL 150
。
)
Prop : 31mm-4Blade & 40mm-4Blade
Motor :
820 Brushed (16000KV)
716 Brushed (17600KV)
Battery : 3.8V 550mAh 50C
Charger : 1-Way 4.2V/4.35V Charger
Weight : 44.6g(not include battery and receiver)
Receiver : NO RX,FM800,DSM2,RX2A PRO,
AC900(S-FHSS+D16)
TINY Q
1-Way 4.2V/4.35V
Charger*1
Battery*1
Tiny Meter 1S*1
Prop Tool*131mm Prop
(Color random)*2Pairs
40mm Prop
(Color random)*2Pairs
Plastic Carrying Case*1
-1-
Wire*2 Paper Sticker*1
108mm
114mm
70mm
Page 3
Motor (Pay attention to the direction of motor and prop)
1-Way 4.2V/4.35V Charger
Note:
Use 4.35V high voltage to charge the 4.2V battery will damage the battery
Frequency Table
4.2V/4.35V Switchable(Default 4.35V)
-2-
40mm-4Blade
820 Motor
31mm-4Blade
716 Motor
Red & Blue wire
Clockwise motor(CW)
Black & White wire
Counterclockwise motor(CCW)
Molex 1.25
PH 2.0
Page 4

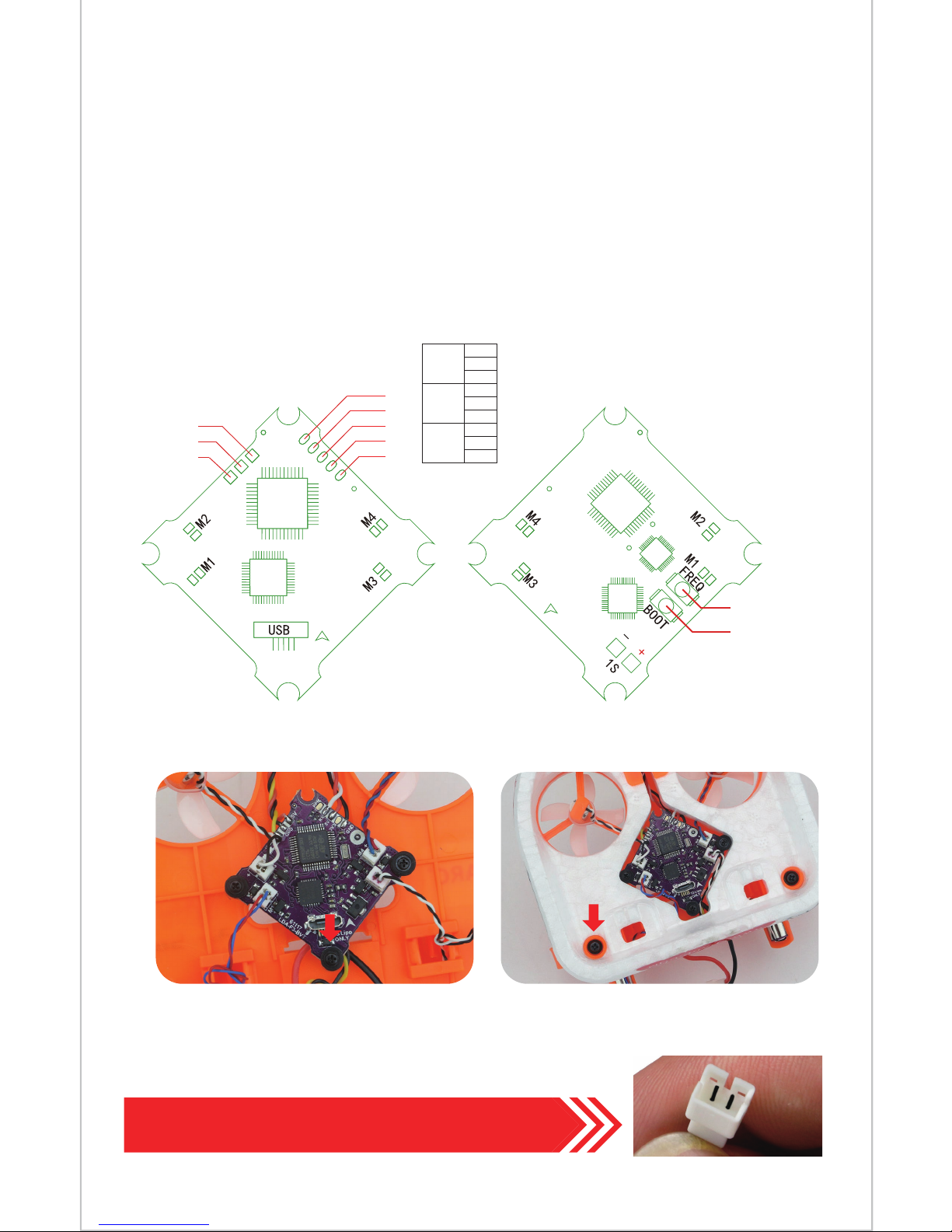

FC & VTX
5V
GND
VIDEO
PPM
RX
5V
3.3V
GND
Click change
frequency point
FC BOOT
Back Front
-3-
1.Install FC(Screw ST1.2*4) 2.Install EPO(Screw ST2*6)
Please replace the power plug when power
plug changed black.
Configuration :
FC : F3(Betaflight SPRACINGF3)
VTX : 25mW/16CH
ESC : Four-way Brushed ESC, Motor Socket Use 1.25mm-2p
Voltage : 1S Lipo
Weight : 3.2g
Mounting Hole Size：26*26mm
Whole Size：29.3*29.3mm
RX
3.3V
GND
DSM2
RX
5V
GND
S.bus
PPM
5V
GND
FS PPM
Page 5
BIND:Power on the receiver while pressing the key,green LED fast blink meaning already in bind mode,user can release the key,
then set your TX into bind mode.Green LED turn off and red LED solid mean bind finished,exit TX from bind mode,receiver’s
green LED solid mean working normally.
FAILSAFE:Support 2 failsafe mode,press the key and hold 3s while receiver working normally can switch failsafe mode.Please
make sure failsafe is working correctly before use the receiver!
Failsafe mode 1: After 1s when lost transmitter signal,S.BUS keep output,throttle will 988us,all other channels will 1500us.
Failsaft mode 2: After 1s when lost transmitter signal,S.BUS not output,user should setting related parameters to ensure
flight controller handle failsafe.

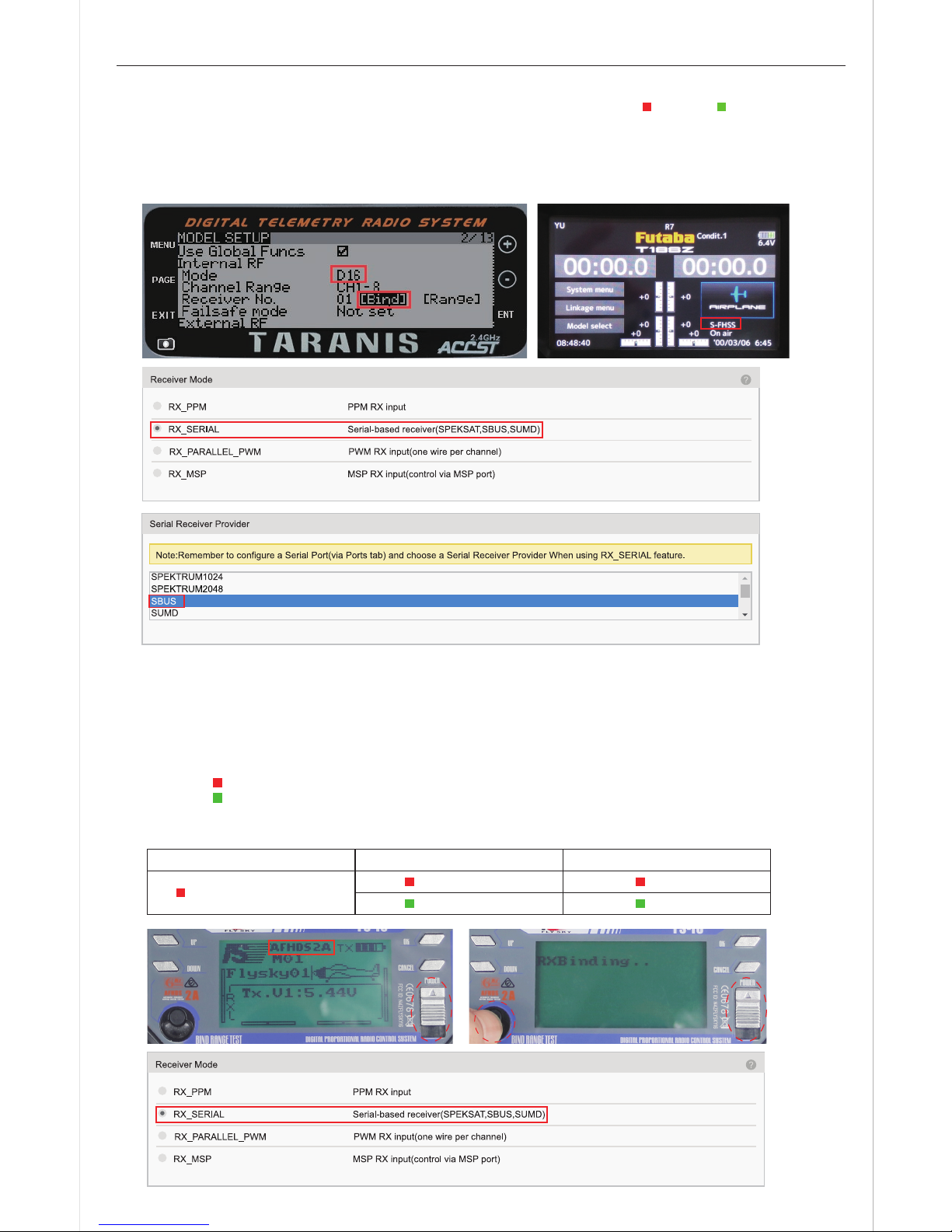

Receiver Bind
AC900(S-FHSS+D16) bind,transmitter(FRSKY X9D/Futaba T18SZ)
RX2A PRO Bind(S.BUS),transmitter(FLYSKY FS-i6)
-4-
STATUS LED：LED of RX2A-PRO blink twice then solid when power on,the meaning as follow
First blink(air system) Second blink(failsafe mode) Then solid(signal status)
AFHDS2A air system
Failsafe mode 1
Failsafe mode 2
No signal
Signal received
Bind:Check receiver mode before bind,the first blink after power on indicate the setting, is S-FHSS, is D16
FUTABA S-FHSS BIND:Turn on the TX then power on AC900 while pressing the key, green LED fast blink meaning already in bind
mode, user can release the key. Bind procedure is completed and the receiver is working normally when green LED is solid
FRSKY D16(NO Telemetry) BIND:Power on AC900 while pressing the key, green LED fast blink meaning already in bind mode,
user can release the key, then set your TX into D16 bind mode. red LED solid meaning bind finished, exit TX from bind mode,
receiver’s green LED solid meaning working normally
Page 6

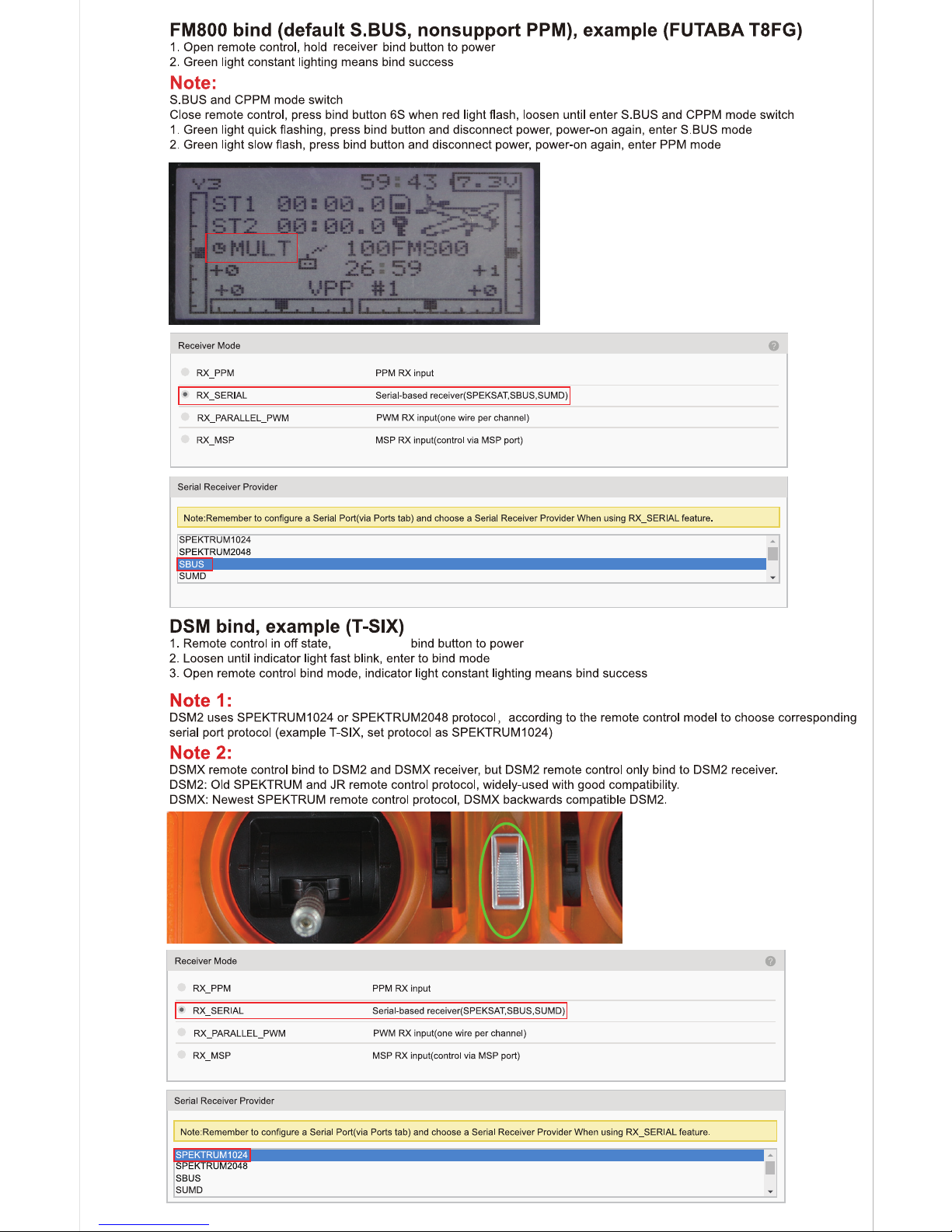

-5-
Page 7

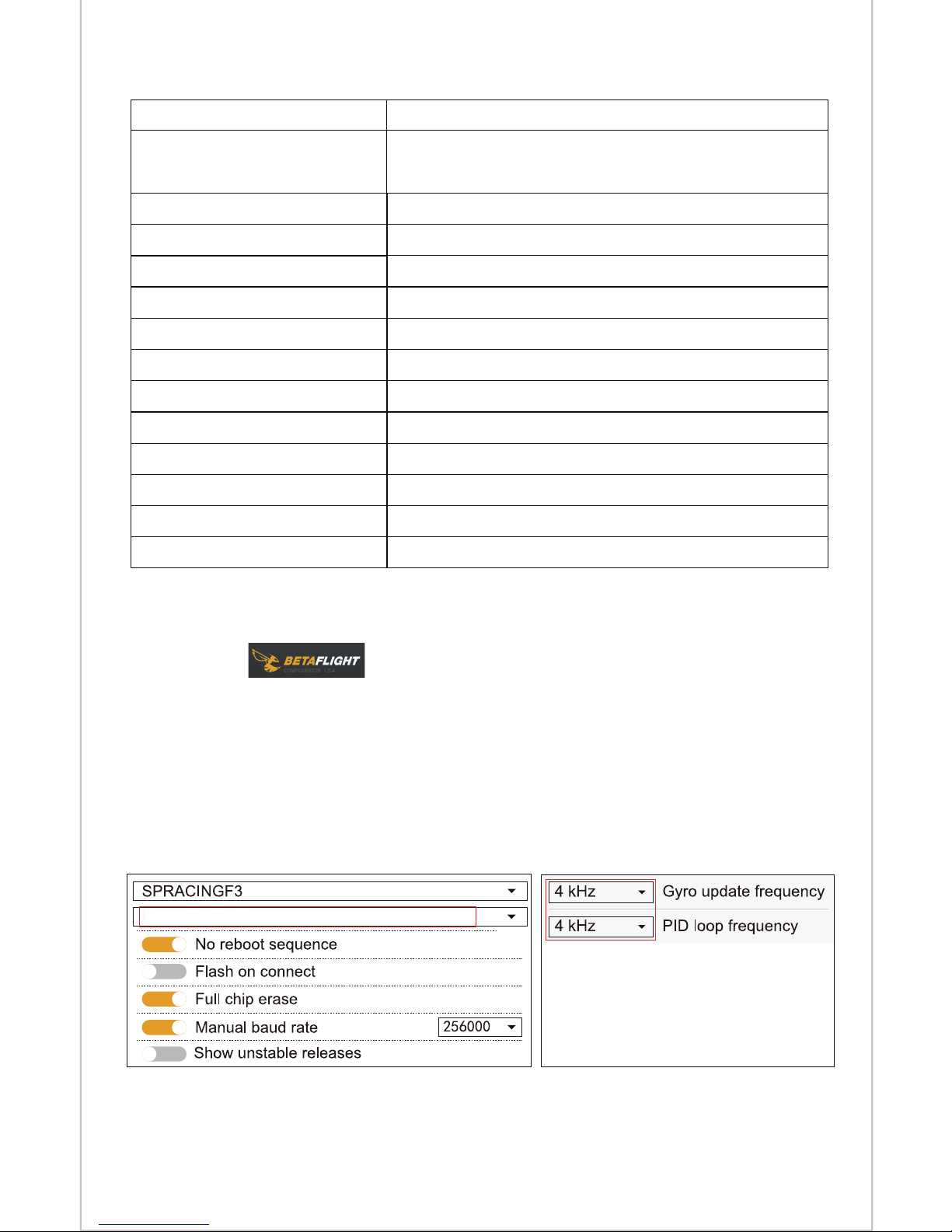

Firmware Version and Setting
1.Software
2.Firmware version(Pic 1)
3.Default 4K(Pic 2)

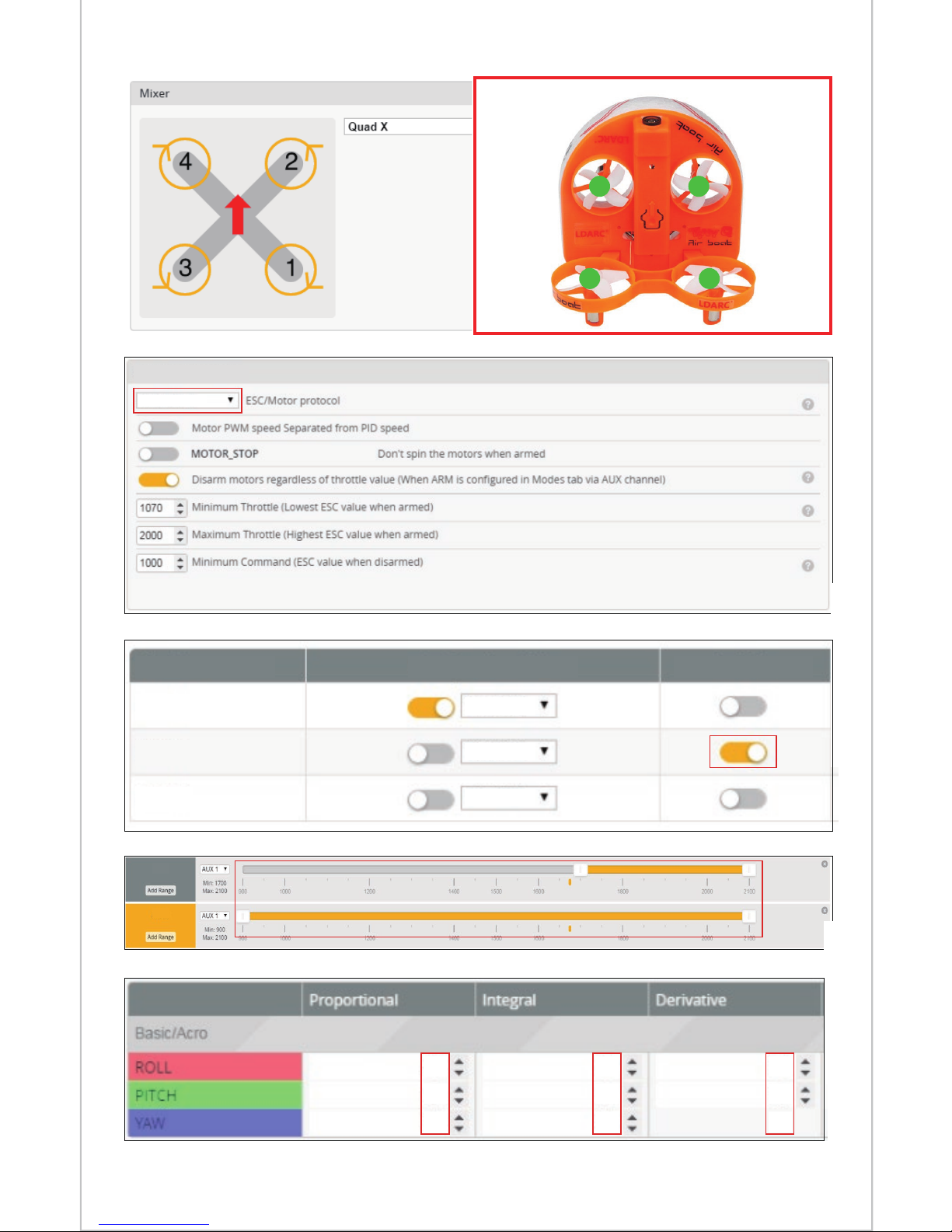

4.Setting Mixer is X,the motor mode is brushed(Pic 3-1,3-2)
5.Receiver setting,open UART2 switch(Pic 4)
6.Default setting ARM function use AUX1 channel(Pic 5)
7.PID setting(Pic 6)
Pic 1
Pic 2
-6-
Product and Factory Code
TINY Q PNP
TINY Q KIT
716 Motor(CW+CCW)
820 Motor(CW+CCW)
199C Camera
FC+VTX+Brushed ESC AIO PIC
31mm-4Blade Prop(0.8mm)
40mm-4Blade Prop(1mm)
1-Way 4.2V/4.35V Charger
Plastic Carrying Case
Battery 3.8V 550mAh 50C
Tiny Meter
Prop Tool
PNP.TINY Q
(NO RX/FM800/DSM2//RX2A PRO/AC900(S-FHSS+D16))
KIT.TINY Q
MOTOR.716(CW+CCW)
MOTOR.820(CW+CCW)
CAM.199C
TINY PDB.FC+VTX+BRUSHED ESC AIO PCB
PROP.31MM.4(0.8MM)
PROP.40MM.4(1MM)
CHARGER.1-WAY 4.2V/4.35V
RT.PLASTIC CARRYING CASE
BAT.3.8V 550MAH 50C
CHARGER.TINY METER
PART.PROP TOOL
Factory CodeName
3.2.2-SPRACINGF3-12-11-2017 05:20(stable)
Page 8
Pic 5
ARM
ANGLE
Pic 3-2
ESC/Motor Features
BRUSHED
UART2
UART1
UART3
Identifier Configuration/MSP Serial RX
115200
115200
115200
Pic 4
Pic 6
40
58
70
40
50
45
30
35
-7-
13
2
4
Pic 3-1
Page 9
-8-
After Sale Service
1.Provide free reparation service when find the product defect after purchase.
2.Provide pay-needed reparation service when product damage because improper
operation.
3.China customers please contact with the after-sales service,overseas client please
contact the dealer.
PNP/RTF Test report ID :
Flight test
Transmitter functions properly
Flying in good condition
Camera OK
VTX OK
QC:
Package check
PNP
RTF
Frame
Transmitter
ID is the same
All parts of the installation
Insulating sleeves have been installed manual
Complete accessories,total packages
