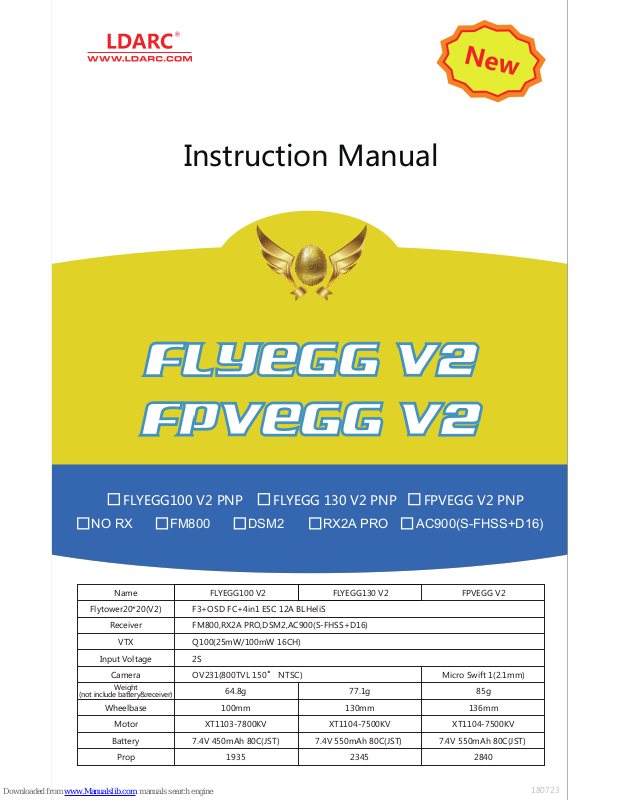

Page 1
NO RX FM800 DSM2 RX2A PRO AC900(S-FHSS+D16)
FLYEGG100 V2 PNP FLYEGG 130 V2 PNP FPVEGG V2 PNP
New
180723
Instruction Manual
FLYEGG100 V2 FLYEGG130 V2 FPVEGG V2
2SInput Voltage
Wheelbase
Motor
Prop
Battery
Weight
(not include battery&receiver)
100mm
XT1103-7800KV
1935
7.4V 450mAh 80C(JST)
64.8g
130mm
XT1104-7500KV
2345
77.1g
136mm
XT1104-7500KV
2840
7.4V 550mAh 80C(JST) 7.4V 550mAh 80C(JST)
85g
Flytower20*20(V2) F3+OSD FC+4in1 ESC 12A BLHeliS
Q100(25mW/100mW 16CH)VTX
OV231(800TVL 150
。
NTSC)
Receiver FM800,RX2A PRO,DSM2,AC900(S-FHSS+D16)
Name
Camera
Micro Swift 1(2.1mm)
Page 2
PNP*1
Battery*1
Rubber×２
-1-
FLYEGG100 V2 Configuration
Wheelbase：100mm
Flytower 20*20(V2)：
F3+OSD
4in1 12A BLheliS
VTX：Q100(25mW/100mW 16CH)
Camera：OV231(800TVL 150
。
)
Motor：XT1103-7800KV
Prop：1935
Battery：7.4V 450mAh 80C
Weight：64.8g(not include battery
and receiver)
Receiver：AC900(S-FHSS+D16),FM800,
RX2A PRO,DSM2
FLYEGG100 V2
FLYEGG100 V2 Package List
1935 Prop*4Pairs
(color random)
Protective cover*4
Unloading
paddle*1
Motor protective
seat*4
Page 3
Rubber×２
PNP*1
Battery*1
-2-
2840 Prop*4Pairs
(color random)
Protective cover*4
Unloading
paddle*1
Motor protective
seat*4
FLYEGG130 V2 Configuration
Wheelbase：130mm
Flytower 20*20(V2)：
F3+OSD
4in1 12A BLheliS
VTX：Q100(25mW/100mW 16CH)
Camera：OV231(800TVL 150
。
)
Motor：XT1104-7500KV
Prop：2840
Battery：7.4V 550mAh 80C
Weight：77.1g(not include battery
and receiver)
Receiver：AC900(S-FHSS+D16),FM800,
RX2A PRO,DSM2
FLYEGG130 V2
FLYEGG130 V2 Package List
Page 4
FPVEGG V2 Package List
PNP*1
Rubber×２
Battery*1
Wheelbase：136mm
Flytower 20*20(V2)：
F3+OSD
4in1 12A BLheliS
VTX：Q100(25mW/100mW 16CH)
Camera：Micro Swift 1(2.1mm)
(600TVL CCD 160
。
NTSC)
Motor：XT1104-7500KV
Prop：2840
Battery：7.4V 550mAh 80C
Weight：85g(not include battery
and receiver)
Receiver：AC900(S-FHSS+D16),FM800,
RX2A PRO,DSM2
FPVEGG V2
-3-
2840 Prop*4Pairs
(color random)
Protective cover*4
Unloading
paddle*1
Motor protective
seat*4
FPVEGG V2 Configuration
Page 5
-4-

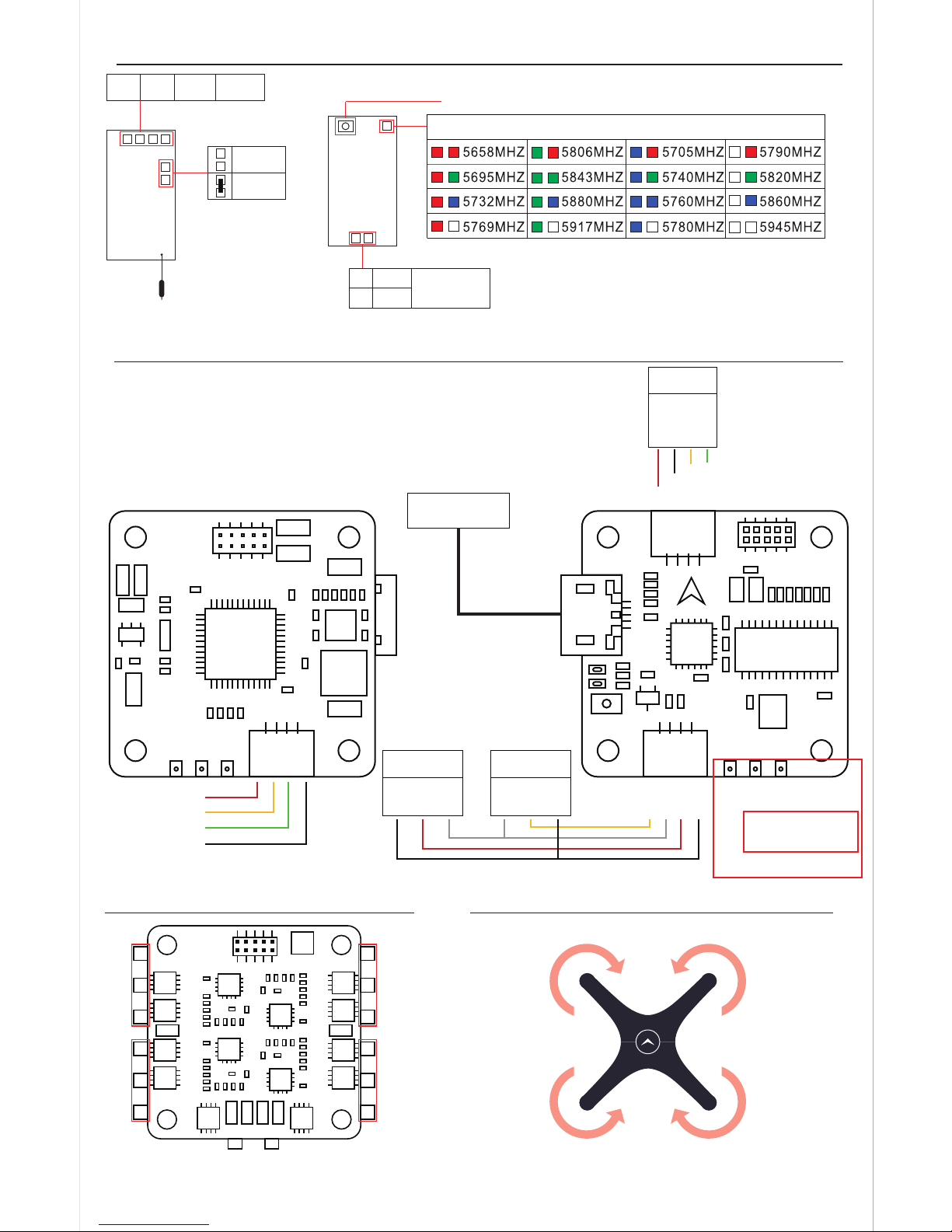

VTX
4.0V VIN GND VIDEO
25mW
100mW
- +
-
+ VIN
2S-4S Lipo
7V-18V
GND
LED Frequency table
Click the key change frequency point
Please attention ventilation cooling
Antenna
Q100-Mini 25mW/100mW 16CH VTX (2S-4S Lipo 7V-18V)
L=28mm,W=11mm,Weight=2.5g(Without camera and wire)
ESC Motor
FC
M4(CW) M2(CCW)
M3(CCW)
Note:Pay attention to the direction of rotation of the motor
when installing the prop
M1(CW)
+ -
M1
M2
M3
M4
BUZZER-
GND
LED STRIP
5V(BUZZER+)
CAM
5V
GND
VIDEO
AUDIO
VCC
GND
SIGNAL
AUDIO
5V
GND
RC IN
3V3
SPEK(DSMX)
GND
3.3V
SIN
SBUS PPM
SIN
5V
GND
BETAFLIGHT
USB
S
VIDEO include OSD
signal output
Connect these 3 pads to
VTX when use 2layer
tower(FC+ESC)
5
5V
GND
G
Page 6
-5-

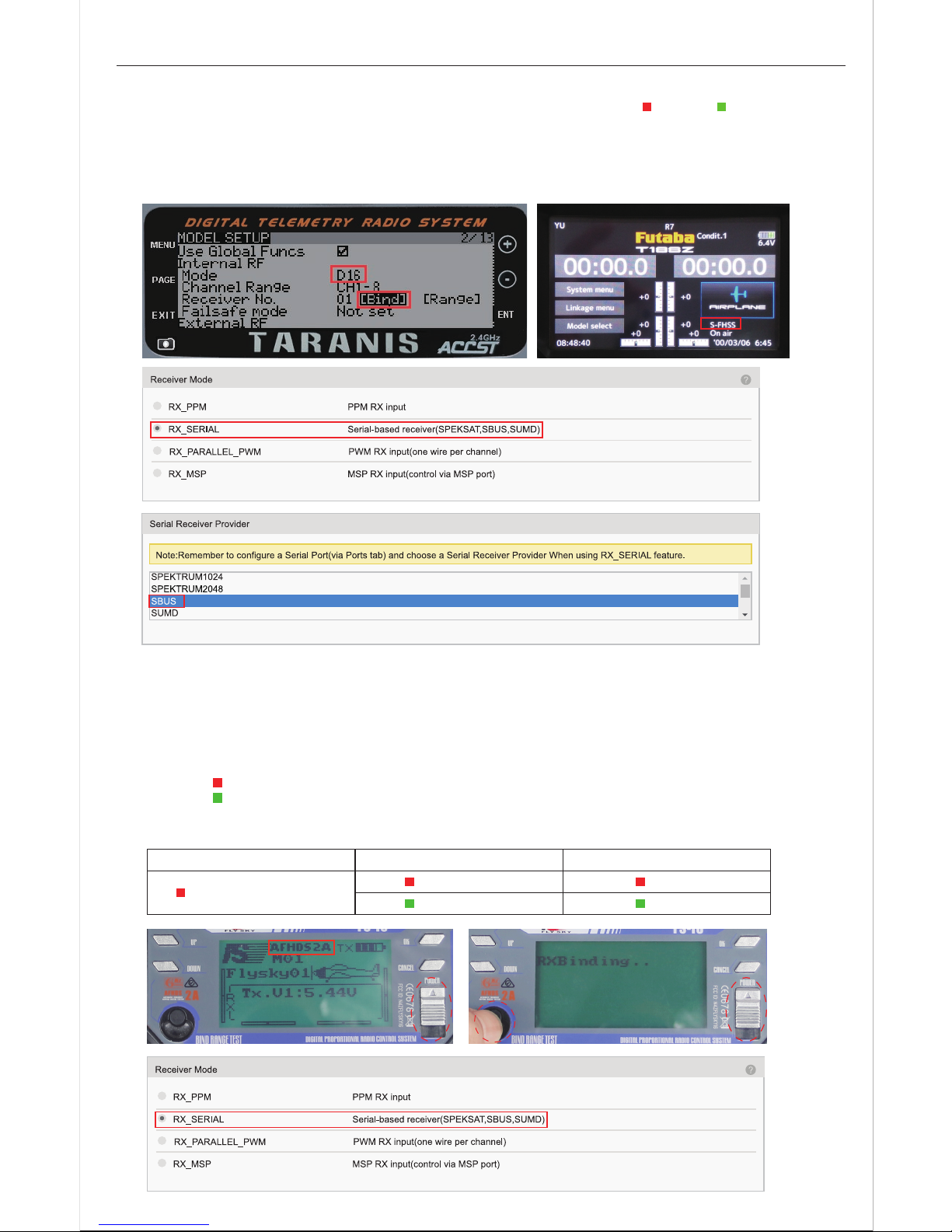

BIND:Power on the receiver while pressing the key,green LED fast blink meaning already in bind mode,user can release the key,
then set your TX into bind mode.Green LED turn off and red LED solid mean bind finished,exit TX from bind mode,receiver’s
green LED solid mean working normally.
FAILSAFE:Support 2 failsafe mode,press the key and hold 3s while receiver working normally can switch failsafe mode.Please
make sure failsafe is working correctly before use the receiver!
Failsafe mode 1: After 1s when lost transmitter signal,S.BUS keep output,throttle will 988us,all other channels will 1500us.
Failsaft mode 2: After 1s when lost transmitter signal,S.BUS not output,user should setting related parameters to ensure
flight controller handle failsafe.
Receiver Bind
AC900(S-FHSS+D16) bind,transmitter(FRSKY X9D/Futaba T18SZ)
RX2A PRO Bind(S.BUS),transmitter(FLYSKY FS-i6)
STATUS LED：LED of RX2A-PRO blink twice then solid when power on,the meaning as follow
First blink(air system) Second blink(failsafe mode) Then solid(signal status)
AFHDS2A air system
Failsafe mode 1
Failsafe mode 2
No signal
Signal received
Bind:Check receiver mode before bind,the first blink after power on indicate the setting, is S-FHSS, is D16
FUTABA S-FHSS BIND:Turn on the TX then power on AC900 while pressing the key, green LED fast blink meaning already in bind
mode, user can release the key. Bind procedure is completed and the receiver is working normally when green LED is solid
FRSKY D16(NO Telemetry) BIND:Power on AC900 while pressing the key, green LED fast blink meaning already in bind mode,
user can release the key, then set your TX into D16 bind mode. red LED solid meaning bind finished, exit TX from bind mode,
receiver’s green LED solid meaning working normally

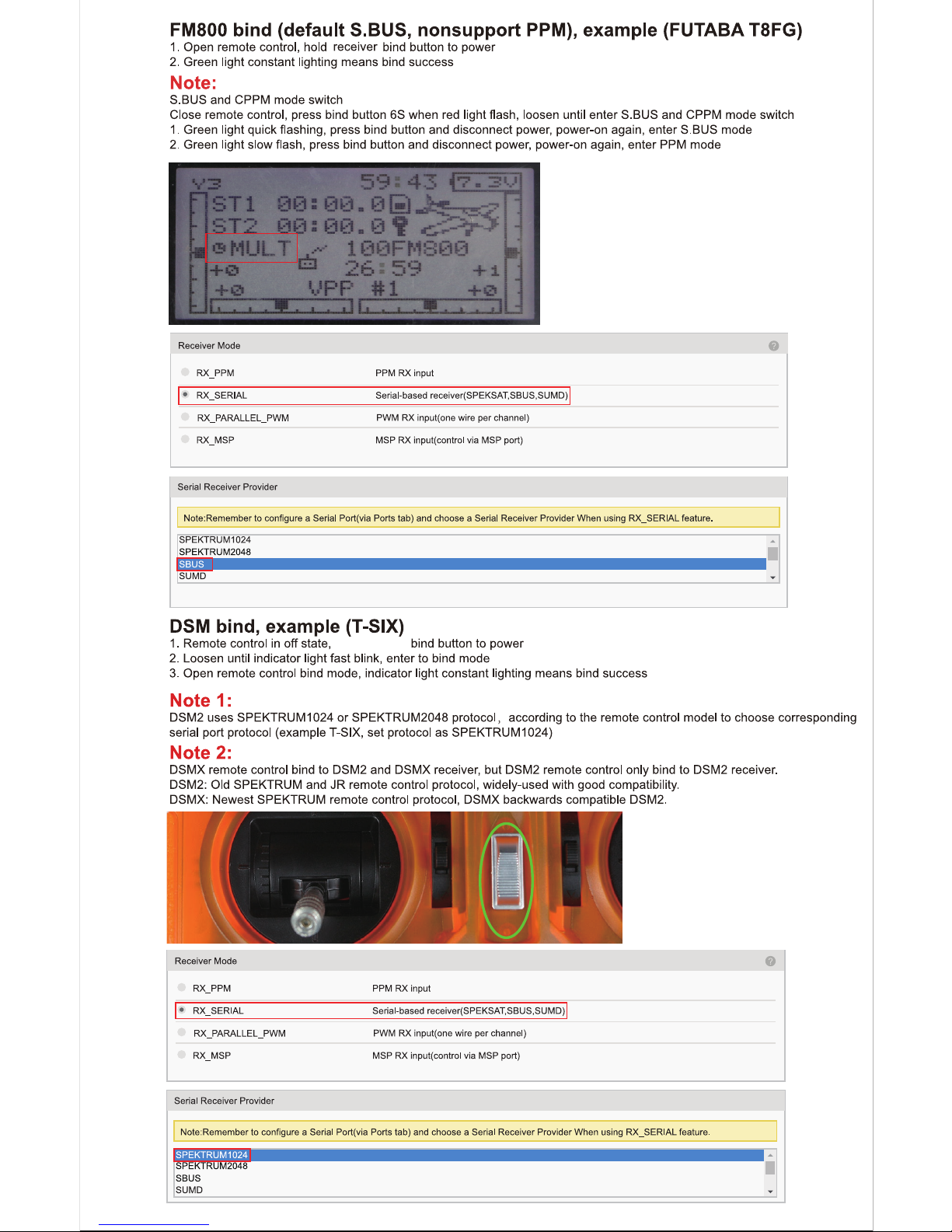

Page 7
-6-
Page 8
Camera
FPVEGG V2
FLYEGG V2
-7-

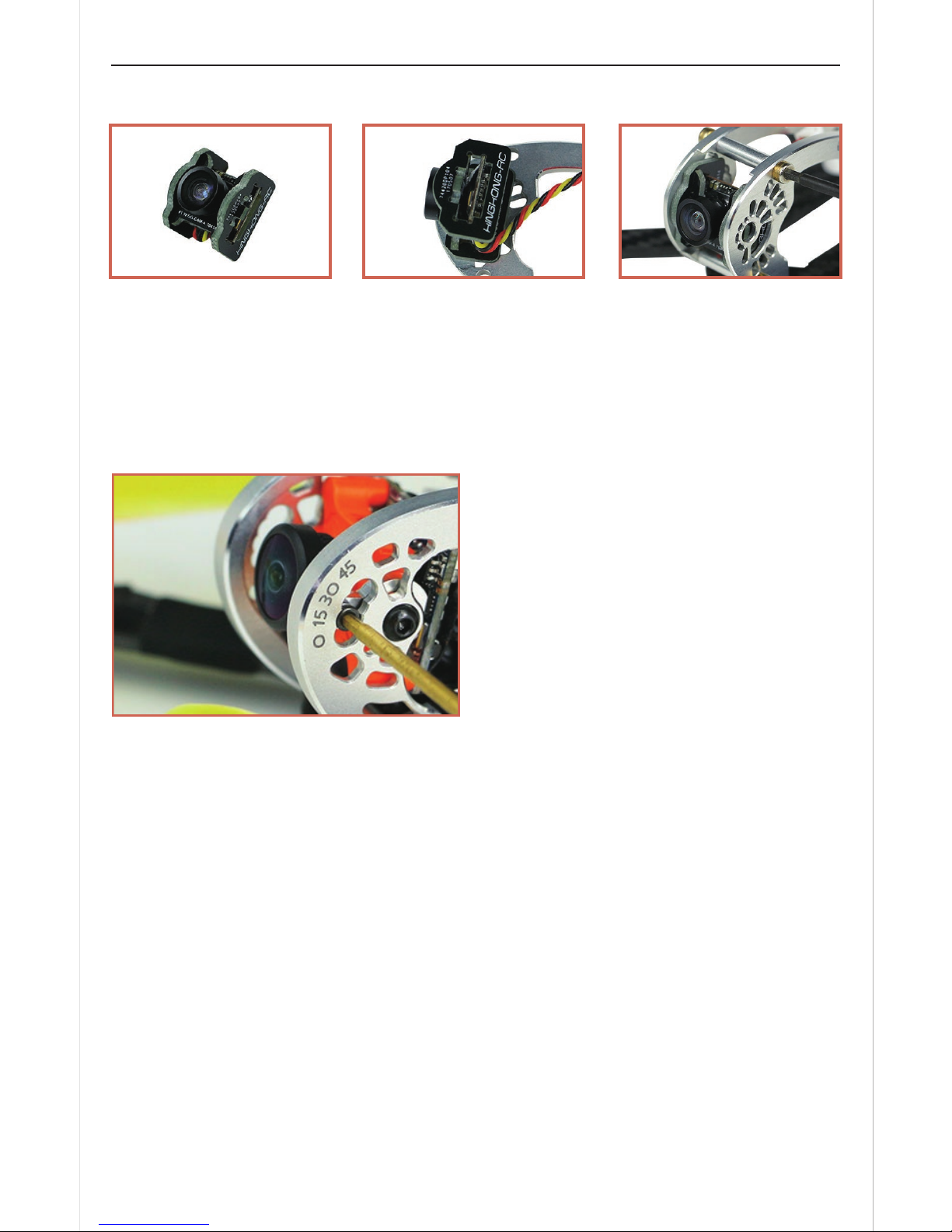

1.Assemble the camera
seat.
2.Determine angle. 3.Fixed camera.
Custom camera angle
Camera：RunCam Micro Swift 1
Image Sensor：1/3”SONY SUPER HAD 2 CCD
Signal System：NTSC
Page 9
-8-

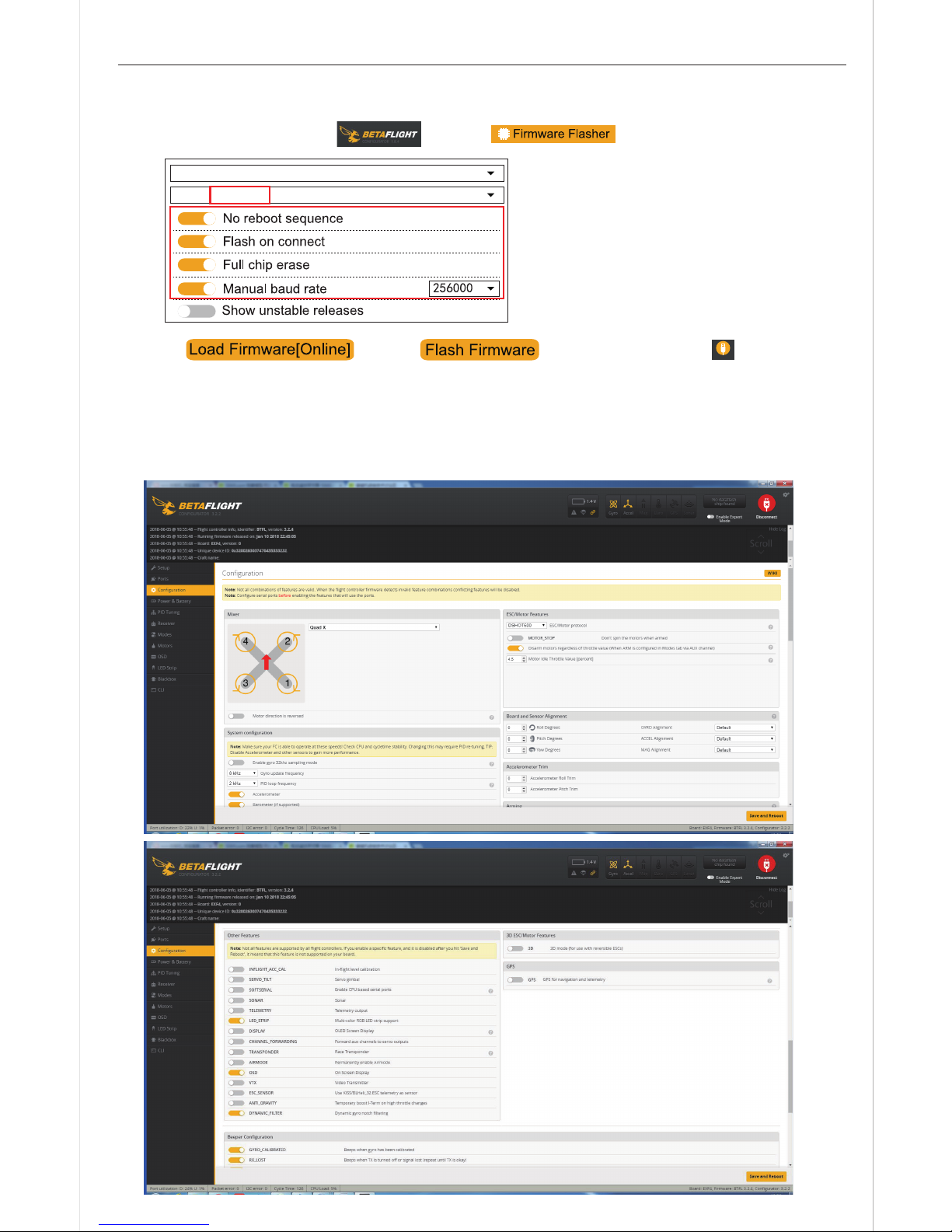

Firmware update
BETAFLIGHT firmware allready flash before leave the factory,user just need
connect PC to adjust the parameter.
Connect
OMNIBUS
3.1.7-OMNIBUS -10-04-2017 18:36(stable)
1.Open betaflight configuration ,then click ,select FW version
2.Click ,then click to download FW to FC, click after FW
updating finish into setting menu
3.Calibration“Calibrate Accelerometer”
4.Selected UART3,then open“Serial RX”switch and saved
5.Configuration，select ESC protocol“DSHOT600”，Set up the receiver protocol，then openLED,OSD and
DYNAMIC_FILTER
Page 10
18
18
38
18
18
38
20
22

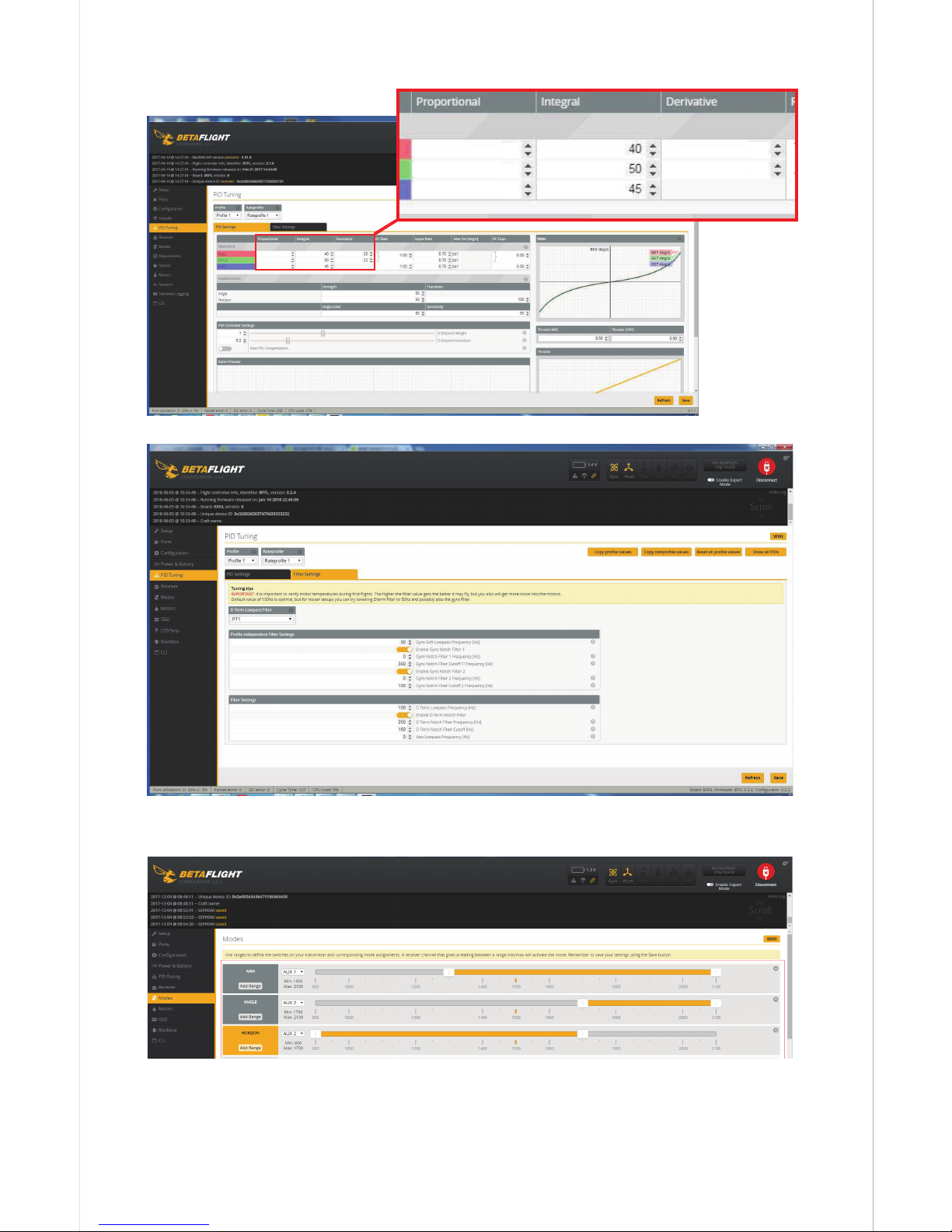

6.PID setting
-9-
7.Default setting of receiver is 5th channel ARM(AUX1),6th channel mode switching(AUX2)
Page 11
-10-
Product and Factory Code
After Sale Service
1.Provide free reparation service when find the product defect after purchase.
2.Provide pay-needed reparation service when product damage because improper operation.
3.China customers please contact with the after-sales service,overseas client please contact the dealer.
PNP/RTF Test report ID :
Flight test
Transmitter functions properly
Flying in good condition
Camera OK
VTX OK
QC:
Package check
PNP
RTF
Frame
Transmitter
ID is the same
All parts of the installation
Insulating sleeves have been installed manual
Complete accessories,total packages
QC:
FPV EGG V2 Name
FPV EGG V2 PNP NO RX
FPV EGG V2 PNP AC900
FPV EGG V2 PNP FM800
FPV EGG V2 PNP RX2A PRO
FPV EGG V2 PNP DSM2
FPV EGG KIT
Carbon fiber plate(FPVEGG Part)
Factory Code
PNP.FPV EGG V2.NO RX
PNP.FPV EGG V2.AC900
PNP.FPV EGG V2.FM800
PNP.FPV EGG V2.RX2A PRO
PNP.FPV EGG V2.DSM2
KIT.FPV EGG
PART. BOTTOM PLATE.FPV EGG
Universal motor black cover
propection for 11 series motors
2.8 inch black propeller protector
(half surround)
2.3 inch black propeller protector
(half surround)
Factory Code
MOTOR.XT1103-7800KV
MOTOR.XT1104-7500KV
FLYTOWER.20*20(V2)
ESC.KK TOWER 12A
FC.F3+OSD(FLYTOWER 20*20 V2)
CAM.OV231
VTX.Q100
PART.11 COVER.BLACK
PART.2.8 PROTERTOR HALF.BLACK
PART.2.3 PROTERTOR HALF.BLACK
BAT.7.4V 450MAH 80C
BAT.7.4V 550MAH 80C
PROP.1935.3.WHITE
PROP.2840.3.WHITE
PART.FLYEGG7075 ALUMINUM FRAME
PART.FPV EGG 7075 ALUMINUM FRAME
CAM.MICRO SWIFT 1
Part Name
XT1103-7800KV
XT1104-7500KV
Flytower20*20(V2)
4in1 ESC 12A(KKTower Part)
F3+OSD飞控(V2)
OV231 Camera
Q100(VTX)
Battery 7.4V 450mAh 80C
Battery 7.4V 550mAh 80C
1935 Prop
2840 Prop
FLYEGG 7075 Aluminum frame
FPVEGG 7075 Aluminum frame
Micro Swift 1
FLYEGG130 V2 Name
FLYEGG130 V2 PNP NO RX
FLYEGG130 V2 PNP AC900
FLYEGG130 V2 PNP FM800
FLYEGG130 V2 PNP RX2A PRO
FLYEGG130 V2 PNP DSM2
FLYEGG130 KIT
Carbon fiber plate(FLYEGG130 Part)
Factory Code
PNP.FLYEGG130 V2.NO RX
PNP.FLYEGG130 V2.AC900
PNP.FLYEGG130 V2.FM800
PNP.FLYEGG130 V2.RX2A PRO
PNP.FLYEGG130 V2.DSM2
KIT.FLYEGG130
PART. BOTTOM PLATE.FLYEGG130 PART
FLYEGG100 V2 Name
FLYEGG100 V2 PNP NO RX
FLYEGG100 V2 PNP AC900
FLYEGG100 V2 PNP FM800
FLYEGG100 V2 PNP RX2A PRO
FLYEGG100 V2 PNP DSM2
FLYEGG100 KIT
Carbon fiber plate(FLYEGG100 Part)
Factory Code
PNP.FLYEGG100 V2.NO RX
PNP.FLYEGG100 V2.AC900
PNP.FLYEGG100 V2.FM800
PNP.FLYEGG100 V2.RX2A PRO
PNP.FLYEGG100 V2.DSM2
KIT.FLYEGG100
PART. BOTTOM PLATE.FLYEGG100 PART
