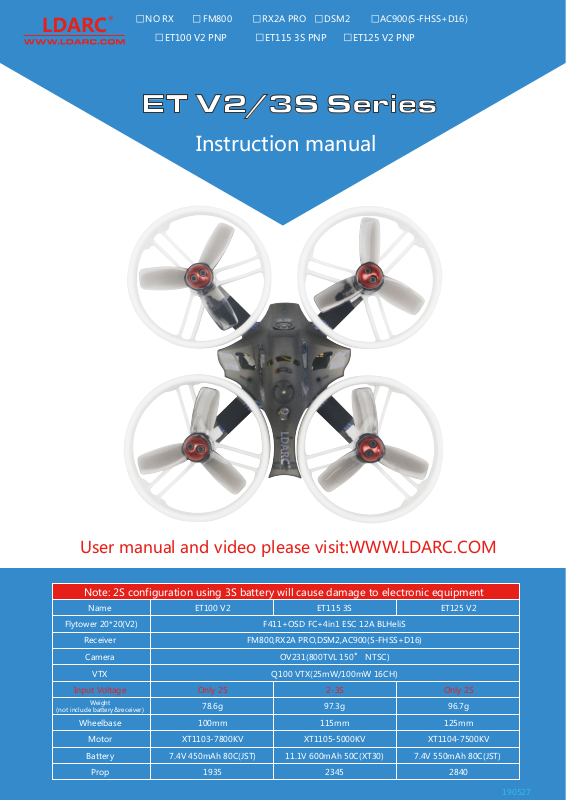

LDARC ET V2, ET 3S Instruction Manual
NO RX |
FM800 |
RX2A PRO DSM2 |
AC900(S-FHSS+D16) |
ET100 V2 PNP |
ET115 3S PNP |
ET125 V2 PNP |
|
ET
V2/3S Series
Instruction manual
User manual and video please visit:WWW.LDARC.COM
Note: 2S configuration using 3S battery will cause damage to electronic equipment
Name |
ET100 V2 |
ET115 3S |
ET125 V2 |
|
Flytower 20*20(V2) |
|
F411+OSD FC+4in1 ESC 12A BLHeliS |
|
|
Receiver |
FM800,RX2A PRO,DSM2,AC900(S-FHSS+D16) |
|||
Camera |
|
OV231(800TVL 150 NTSC) |
|
|
VTX |
|
Q100 VTX(25mW/100mW 16CH) |
|
|
Input Voltage |
Only 2S |
2-3S |
Only 2S |
|
Weight |
78.6g |
97.3g |
96.7g |
|
(not include battery&receiver) |
||||
|
|
|
||
Wheelbase |
100mm |
115mm |
125mm |
|
Motor |
XT1103-7800KV |
XT1105-5000KV |
XT1104-7500KV |
|
Battery |
7.4V 450mAh 80C(JST) |
11.1V 600mAh 50C(XT30) |
7.4V 550mAh 80C(JST) |
|
Prop |
1935 |
2345 |
2840 |
|
190527
ET100 V2 Configuration
Wheelbase 100mm
Flytower 20*20(V2)
F411+OSD
4in1 12A BLheliS
VTX Q100(25mW/100mW 16CH)
Camera OV231(800TVL 150 NTSC)
Motor XT1103-7800KV
Prop 1935
Battery 7.4V 450mAh 80C(JST)
Voltage 7.4V
Weight 78.6g(not include battery and receiver)
Receiver FM800,RX2A PRO,DSM2
AC900(S-FHSS+D16)
Package List
|
|
|
|
|
|
|
PNP*1 |
|
Suitcase*1 |
|
1935 Prop*4Pairs |
|
7.4V 450mAh 80C*1(JST) |
|
|
(Color random) |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
ET Canopy× |
|
ET100 V2/115 3S |
|
ET100 V2/115 3S |
|
Paper Stickers*1 |
|
Red Canopy× |
|
Clear Black Canopy× |
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
-1-
ET115 3S Configuration
Wheelbase 115mm
Flytower 20*20(V2)
F411+OSD
4in1 12A BLheliS
VTX Q100(25mW/100mW 16CH)
Camera OV231(800TVL 150 NTSC)
Motor XT1105-5000KV
Prop 2345
Battery 11.1V 600mAh 50C(XT30)
Voltage 11.1V
Weight 97.3g(not include battery and receiver)
Receiver FM800,RX2A PRO,DSM2
AC900(S-FHSS+D16)
Package List
|
|
|
|
|
|
|
PNP*1 |
|
Suitcase*1 |
|
2345 Prop*4Pairs |
|
11.1V 600mAh 50C*1(XT30) |
|
|
(Color random) |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
ET Canopy× |
|
ET100 V2/115 3S |
|
ET100 V2/115 3S |
|
Paper Stickers*1 |
|
Red Canopy× |
|
Clear Black Canopy× |
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
-2-
ET125 V2 Configuration
Wheelbase 125mm
Flytower 20*20(V2)
F411+OSD
4in1 12A BLheliS
VTX Q100(25mW/100mW 16CH)
Camera OV231(800TVL 150 NTSC)
Motor XT1104-7500KV
Prop 2840
Battery 7.4V 550mAh 80C(JST)
Voltage 7.4V
Weight 96.7g(not include battery and receiver)
Receiver FM800,RX2A PRO,DSM2
AC900(S-FHSS+D16)
Package List
|
|
|
|
|
|
|
PNP*1 |
|
Suitcase*1 |
|
2840 Prop*4Pairs |
|
7.4V 550mAh 80C*1(JST) |
|
|
(Color random) |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
ET Canopy× |
|
ET125 V2 |
|
ET125 V2 |
|
Paper Stickers*1 |
|
Red Canopy× |
|
Clear Black Canopy× |
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
VTX
4.0V |
VIN |
GND |
VIDEO |
Click the key change frequency point |
|
|
|
|
|
LED Frequency table
25mW |
100mW |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
+ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Antenna |
|
+ |
|
VIN |
2S-4S Lipo |
Q100-Mini 25mW/100mW 16CH VTX (2S-4S Lipo 7V-18V) |
|||||||||||||||||||
|
|
|
||||||||||||||||||||||||
|
|
- |
|
GND |
7V-18V |
L=28mm,W=11mm,Weight=2.5g(Without camera and wire) |
||||||||||||||||||||
|
|
|
|
|
||||||||||||||||||||||
Please attention ventilation cooling
-3-
