User's Manual
Digital Audio Matrix
Model: LDA ZES-22
Page 2
USER'S M A NUAL: L D A ZES- 2 2
LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com
Page 3
USER'S MA N UAL: L D A ZES-2 2
Table of Content
2.1 CONECTION.................................................................................................................................2
2.1.1 ANALOG CONNECTION ....................................................................................................3
2.1.1.1 UNBALANCED SOURCE INPUT....................................................................................3
2.1.1.2 BALANCED SOURCE INPUT..........................................................................................4
2.1.1.3 BALANCED OUTPUT TO DESTINATION.....................................................................4
2.1.1.4 UNBALANCED OUTPUT TO DESTINATION................................................................4
WARNING:
The device should not be exposed to any dripping or splashing of water and no objects
filled with liquids such as vases or glasses should be placed next to the device.
LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com
Page 4
USER'S M A NUAL: L D A ZES- 2 2
LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com
Page 5
1 TECHNICAL DESCRIPTION
LDA ZES-22 is an audio DSP matrix based on the COBRANET
TM.
over Ethernet market standards. The ZES-22 has 4 channels of audio input and 4 channels of audio output being these configured by software as channel input or output. It may have up to four channels of input or output so be able to send the audio over Ethernet using the COBRANET
TM.
Standard.
2 FUNCTIONING DESCRIPTION
The ZES-22 allows both, the injection and extraction of analog audio channel in a network of Ethernet COBRANETTM. COBRANETTM allows up to 65536 “bundles” (where a ´bundle´is a package with up to 8 channels of digital audio). A ZES-22 can get up to 4 input channels and 4 output channels within the COBRANETTM network. These channels can be connected to any of the analog channels using the internal array. Also, it has a digital system integrated with the signals (DSP) being able to make signal gain adjustments, equalization, filtering, limitations, etc.

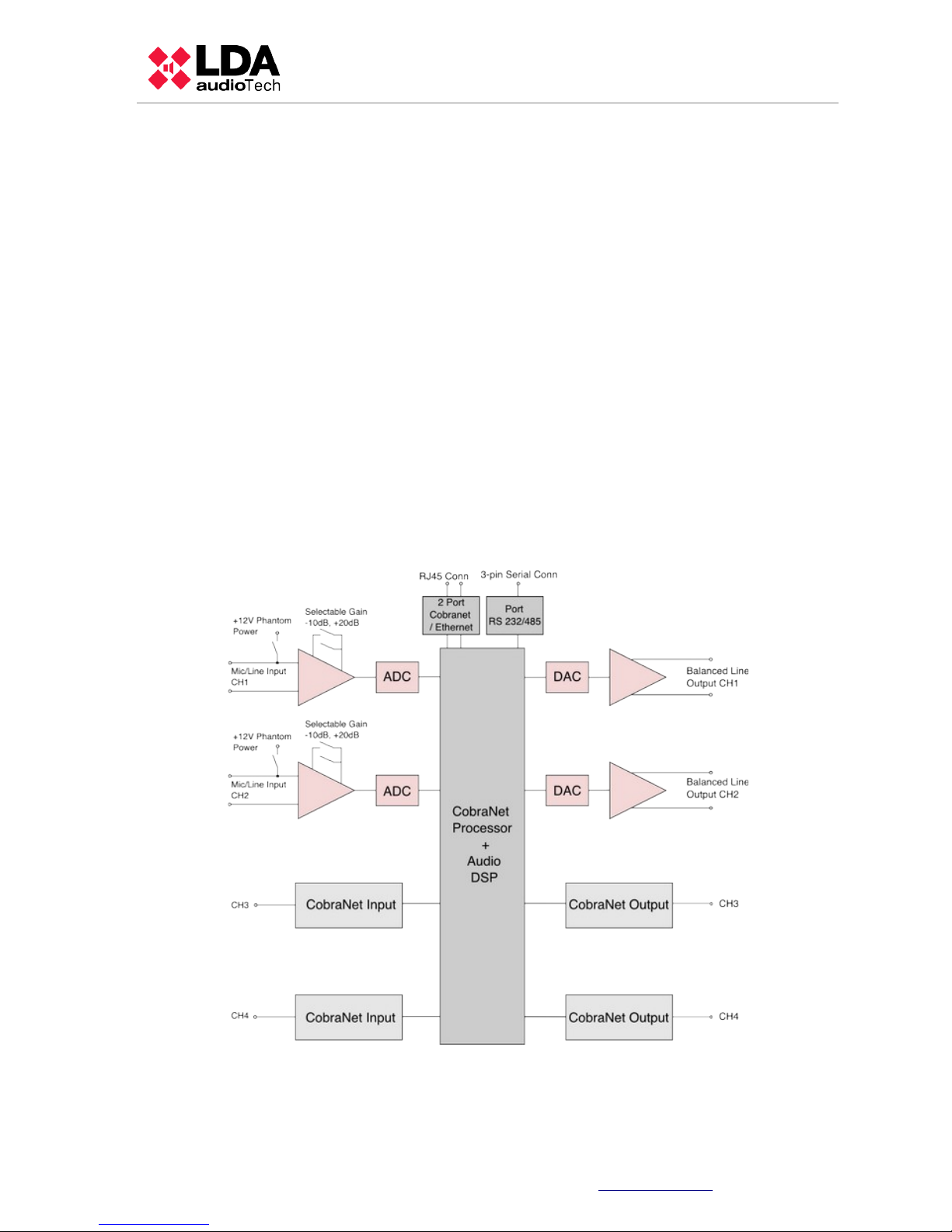

Figure 1: Internal Diagram (Default)
LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com 1
USER'S MANUAL: LDAZES-22
Page 6
2.1 CONECTION

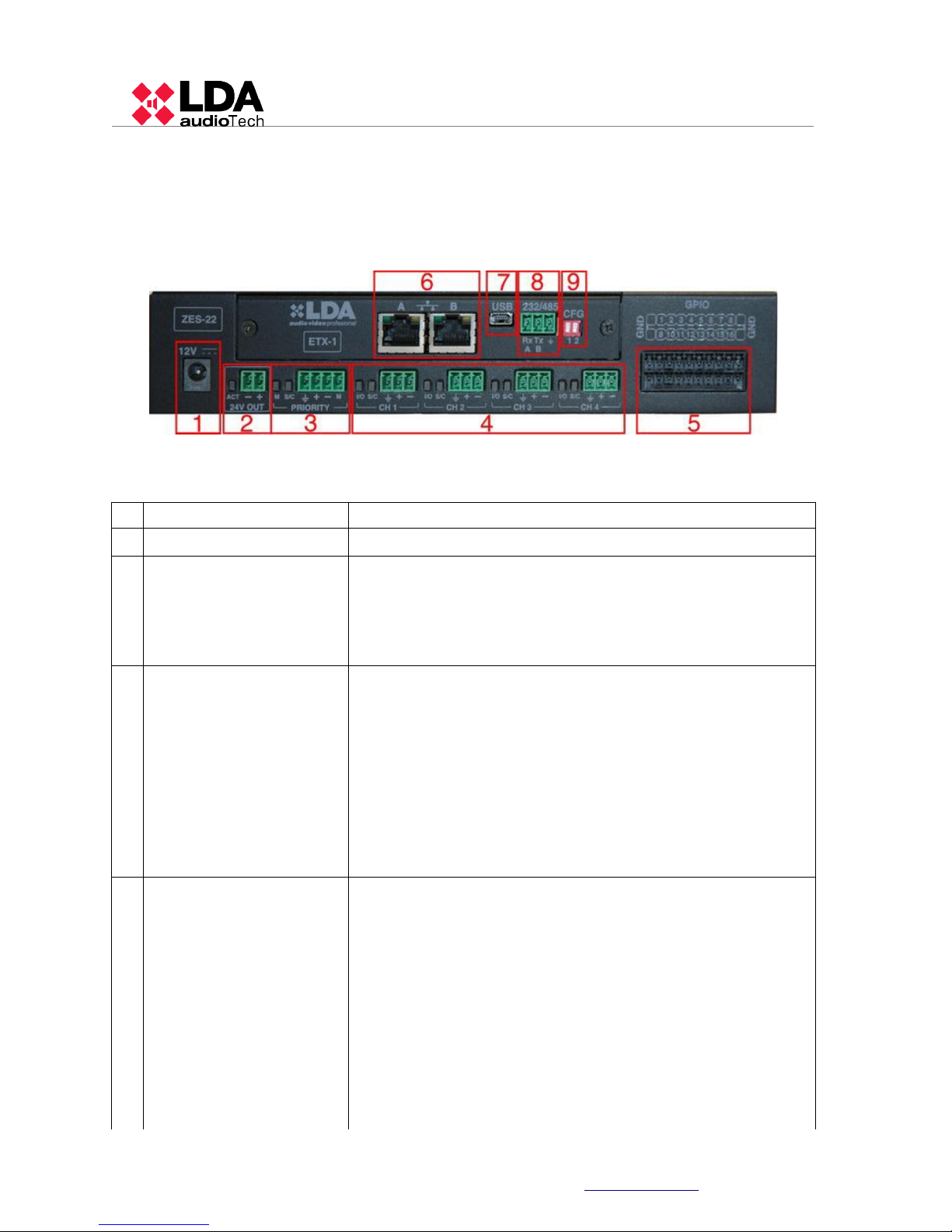

In the image below you can view the back of the system and its different types of
connections.
Nº ELEMENT DESCRIPTION
1 Power Connector Power Connector 12VDC 2 Maneuver for attenuators
and sirens
Output caused by software to control the atenuators or sirens powered at 24V max 1A: Description of the output led: Orange- Open Circuit / Short Circuit Green- Line Ok.
3
Priority Input
Input of priority Description of the pins: 1- GND 2- Audio+ 3- Audio­ 4- Maneuver (C.C. or 5V TTL) Description of the led indicators: Led M- active maneuver Led in Orange→ Led S/C- Maneuver Input VU meter (Orange/Green/Red) (O/G/R).
4 Audio Channels 4 configurable audio channels through the software as
audio inputs or audio outputs. Description of the pins: 1- GND 2- Audio+ 3- Audio­Description of the led indicators: Led I/O Blue Channel selected as audio Input→ → Led I/O Orange Channel selected as audio output.→ → Led S/C VU meter of input signal or of output signal → (O/G/R)
2 LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com
USER'S MANUAL: LDAZES-22
Page 7
5 GPIO Interface E/S configurable through software for signal interface TTL
(0-5V) with the system.
6 Cobranet/ Ethernet
Connectors
Cobranet or Ethernet configurable connectors. The configuration is done through the selector switch. See
section 9. 7 Mini-USB Connector Mini-Usb Female Connector Type AB. 8 Interface 232/485 Interface 232/485
Description of the pins:
1- Rx-A
2- TX-B
3- GND 9 Switch selector of
Cobranet/ Ethernet connectors.
Description of the selection:
PORT A ETH PORT B ETH
INFORMATION AUDIO
INFORMATION
(VLAN1) +
AUDIO (VLAN2)
INFORMATION
(VLAN1) + AUDIO
(VLAN2)
redundant
INFO + AUDIO INFO + AUDIO
redundant
SWITCH MODE SWITCH MODE
2.1.1 ANALOG CONNECTION
The ZES22 accepts and manages the devices of balanced and unbalanced audio.
The following diagrams explain how to connect different types of audio devices.
2.1.1.1 UNBALANCED SOURCE INPUT
To be able to connect an unbalanced source of 2 wires to the ZES22, you have to connect the positive output of the unbalanced source to the positive I/O input of the ZES22. Connect the ground input source with ZES22 main source, and unite the negative input with the ground source of the ZES22 input. See Figure 3.
LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com 3
USER'S MANUAL: LDAZES-22
Page 8
Figure 3

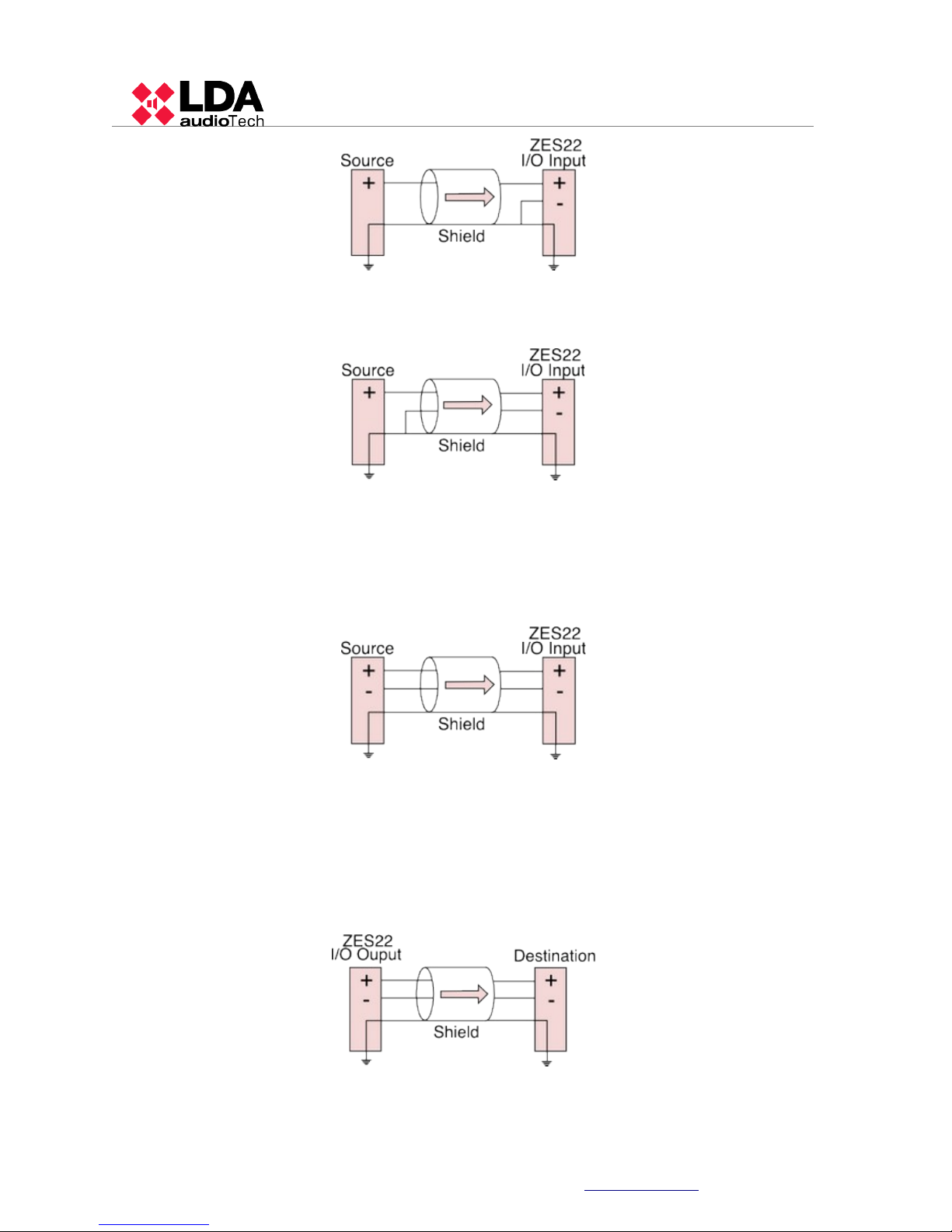

To connect an unbalanced source with 3 wires to the ZES22, unite the negative conductor and the shield of the source. See Figure 4:
Figure 4
2.1.1.2 BALANCED SOURCE INPUT
To connect a balanced source to ZES22 connect the positive power of the source to the positive power of the ZES22 and unite the ground through the cable shield. See figure 5.
Figure 5
2.1.1.3 BALANCED OUTPUT TO DESTINATION
To connect to a balanced input from a destination device, connect the positive, negative and ground connections of the ZES22 and the destination device. See Figure 6.
Figure 6
4 LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com
USER'S MANUAL: LDAZES-22
Page 9
2.1.1.4 UNBALANCED OUTPUT TO DESTINATION

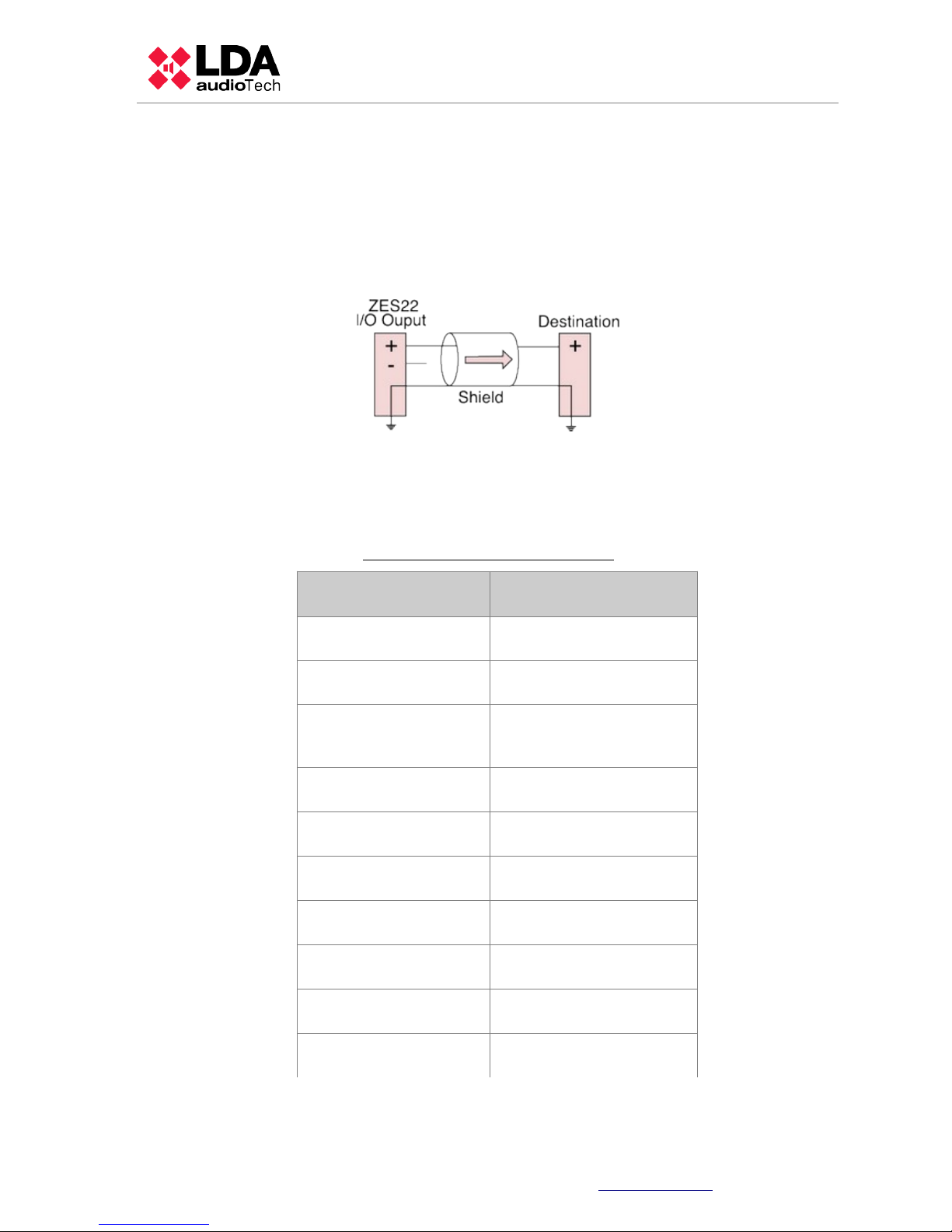

To connect the output of the ZES22 to a unbalanced input of 2 wire, connect the positive output to the positive input of the destination device. Unite the ground of the ZES22 and the destination device through the shield cable. See Figure 7.
Figure 7
3 TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
MODEL LDAZES22S01
Power: 12Vdc 50Hz
Consumption: < 20 W
Phantom Power
12V (configurable in all the inputs)
Frequency Response 20Hz-20KHz +/- 0,05dB
Input Sensibility 1Vp, 0,707Vrms
Audio Input Analog, Balanced
Sensibility Adjustment +20dB / 0dB / -10dB
S/N >94dB @ 1Vrms
Audio Connectors Connectors type Euroblock
DSP Resolution 48KHz 24bits
LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com 5
USER'S MANUAL: LDAZES-22
Page 10
4 NOTES:
6 LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com
USER'S MANUAL: LDAZES-22
Page 11
LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com 7
USER'S MANUAL: LDAZES-22
Page 12
8 LDA Audio Tech - 31 st Severo Ochoa St.- 29590 MÁLAGA, SPAIN. Tl: +34 952028805. www.lda-audiotech.com
USER'S MANUAL: LDAZES-22
Ver. 0.1
