LCT LCTSD318, LCTSD326, LCTSD336 User Manual
LCT0804/ver.1.0 www.hrcctv.com
ALLARMED SPEED DOME
User Manual
LCTSD318
LCTSD326
LCTSD336
User Manual
LCTSD318-326-336
pag.
2
www.hrcctv.com
NORME GENERALI DI SICUREZZA -
General safety recommendations
Sicurezza delle persone - Safety warnings
Leggere e seguire le istruzioni - Tutte le
istruzioni per la sicurezza e per l'operatività
devono essere lette e seguite prima che il
prodotto sia messo in funzione.
Precauzioni particolari - Rispettare
tassativamente l'ordine delle istruzioni di
installazione e collegamento descritte nel
manuale. Verificare le indicazioni riportate sulla targa di
identificazione: esse devono corrispondere alla vostra rete
elettrica di alimentazione ed al consumo elettrico. Conservate le
istruzioni per una consulta futura.
Read and follow the instructions - Read the installation
instructions before connecting the system to its power source.
Follow these guidelines to ensure general safety.
In order to prevent injury, burns or electrical shock to yourself
and others, follow the connection instruction plan carefully.
Sicurezza del prodotto - Product Safety
Non posizionare in prossimità di liquidi oppure in un ambiente ad
umidità eccessiva.
Non lasciare penetrare del liquido o corpi estranei all'interno
dell'apparecchiatura.
Non ostruire le griglie di aerazione.
Non sottoporre all'esposizione dei raggi solari oppure in prossimità
di fonti di calore.
Do not use the product in a wet location.
Never push a foreign object through an opening inside the
product.
Slots and openings are provided for ventilation and should never
be covered.
Do not place under direct sunlight or heat sources.
INFORMAZIONI SULL’AMBIENTE ENVIRONMENT INFORMATION
Note per lo smaltimento del prodotto
valide per la Comunità Europea
Questo prodotto è stato progettato e
assemblato con materiali e componenti
di alta qualità che possono essere
riciclati e riutilizzati. Non smaltire il
prodotto come rifiuto solido urbano ma
smaltirlo negli appositi centri di
raccolta. E’ possibile smaltire il
prodotto direttamente dal distributore
dietro l’acquisto di uno nuovo,
equivalente a quello da smaltire. Abbandonando il prodotto
nell’ambiente si potrebbero creare gravi danni all’ambiente
stesso. Nel caso il prodotto contenga delle batterie è
necessario rimuoverle prima di procedere allo smaltimento.
Queste ultime debbono essere smaltite separatamente in
altri contenitori in quanto contenenti sostanze altamente
tossiche.
Il simbolo rappresentato in figura rappresenta il bidone dei
rifiuti urbani ed è tassativamente vietato riporre
l’apparecchio in questi contenitori.
L’immissione sul mercato dopo il 1° luglio 2006 di prodotti
non conformi al DLgs 151 del 25-07-05 (Direttiva RoHS
RAEE) è amministrativamente sanzionato.
Disposal of waste products for European Union
This products was designed to minimize their impact on the
environment by reducing or eliminating hazardous
materials and designing for recyclables.
This product should be handed over to a designated
collection point, e.g., on an authorized one -for-one basis
when you buy a new similar product or to an authorized
collection site for recycling waste electrical and electronic
equipment. Improper handling of this kind of waste could
have a possible negative impact on the environment and
human health due to potentially hazardous substances.
This symbol indicates that this product has not to be
disposed of with your household waste, according to the
WEEE Directive.
For more information about where you can drop off your
waste equipment for recycling, please contact your local
city waste authority, or your household waste disposal
service.
GARANZIA - Warranty
Questa garanzia ha validità di 2 anni a partire dalla data
di acquisto assicurata solo dietro presentazione della
fattura o scontrino rilasciati al cliente dal rivenditore.
L’assistenza gratuita non è prevista per i guasti causati da:
-Uso improprio del prodotto, immagazzinamento
inadeguato, cadute o urti, usura, sporcizia, acqua, sabbia,
manomissione da personale non autorizzato del prodotto
rispetto a quanto previsto nei manuali d’uso inclusi.
-Riparazioni, modifiche o pulizia effettuate da centri
assistenza non autorizzati da HR EUROPE.
-Danni o incidenti le cui cause non possono essere attribuite
alla HR EUROPE, comprendenti e non limitati a fulmini,
eventi naturali, alimentazione e ventilazione inadeguata.
This warranty is valid for 2 years from the date of
purchase obtained only against presentation of the
original invoice/ cash ticket issued to the customer by
the retailer.
Warranty repair service is excluded if damage or defects
have been caused by:
-Improper use, incorrect storage, dropping or shocks,
corrosion, dirt, water, handing or operation of the product
as referred to in the users’ manuals.
User Manual
LCTSD318-326-336
www.hrcctv.com pag.3
SUMMARY
1. Introduction............................................................................................................................... 4
1.1 Technical specific ............................................................................................ 4
LCTSD318......................................................................................................................................4
LCTSD326......................................................................................................................................4
LCTSD336......................................................................................................................................4
1.2 Side identification............................................................................................. 5
2. Installation................................................................................................................................. 6
2.1 Preparations ..................................................................................................... 6
2.2 Brackes assembling ............................................................................................ 6
2.3 Connection....................................................................................................... 6
2.4 Switch adjustment ............................................................................................ 8
3. Menu Configuration................................................................................................................ 10
3.1 Menu Operation................................................................................................. 10
3.2 Boot-up Screen ................................................................................................. 11
3.3 Menu explanation .............................................................................................. 12
3.4 System Setup .................................................................................................... 13
3.5 Lens – Optics setup............................................................................................. 14
3.6 CAMERA – Camera Setup ...................................................................................... 15
3.7 PAN/TILT – PTZ setup .......................................................................................... 16
3.8 Auto running – Automated setup........................................................................... 16
3.9 Privacy mask – Privacy Aree setup ......................................................................... 18
3.10 Alarm - Alarm setup ......................................................................................... 19
4. APPENDIX ............................................................................................................................... 21
User Manual
LCTSD318-326-336
pag.
4
www.hrcctv.com
1. Introduction
1.1 Technical specific
Specifics Details
Preset 220
Tour 4 – max 27 Preset
Cruise 4
Pattern 4
Horizontal Movimento 360° ; speed 300°/sec.
OSD password Ok
Proportional Pan/Tilt Ok
Day/night Auto, Color, Night (select)
S/N Ratio >50dB
Electronics shutter 1/1 - 1/10,000 sec., 22 steps
White bilance Auto, ATW, Inside, Outside, One-Push, Manual
Gain Auto/Manual ( -3dB , 28dB, 2dB steps)
AE control Auto, Manual, Priority Mode, Bright, EV compensation, Back light compensation
Back Light Compensation On/Off
Privacy Zone 8
Input / output Alarm 8 / 1
Autorunnig ok
Auto Flip 180° Tilt
Video Output VBS: 1.0Vp-p (sync negative), Y/C output
Security grade IP66
Environmental temperature -10° ~ 50°C ; 95% UR
Power – Uptake 24VAC nominal (18-30VAC) - 10VA min / 90VA max heating up
Language Italian - English - French – Spanish
Weight 3,1 Kg
Size (With Wall brachet LCTST300M) 325mm (H) x 220mm (Ø) x 290mm (P)
LCTSD318
camera Module Sony FCB-EX480CP
Image Sensor 1/4 type EXview HAD CCD
Pixels Approx. 440,000 pixels
Lens 18x Zoom, f=4.1mm (wide) to 73.8 mm (tele), F1.4 to F3.0
Digital Zoom 12x (216x with optical zoom)
Vision (horizontal) 48° (wide end) to 2.8° (tele end)
Min. functioning distance 35mm (wide end) to 800mm (tele end)
Min. Lighting 0.7 lx (typical) (50 IRE)
LCTSD326
camera Module Sony FCB-EX980P
Image Sensor 1/4 type EXview HAD CCD
Pixels Approx. 440,000 pixels
Lens 26x Zoom, f=3.5 (wide) to 91.0 mm (tele), F1.6 to F3.8
Digital Zoom 12x (312x with optical zoom)
Vision (horizontale) 55° (wide end) to 2.3° (tele end)
Min. functioning distance 320mm (wide end) to 1500mm (tele end)
Min. Lighting 1.0 lx (typical) (50 IRE)
LCTSD336
camera Module Sony FCB-EX1000P
Image Sensor 1/4 type EXview HAD CCD
Pixels Approx. 440,000 pixels
Lens 36x optical zoom, f=3.4 mm (wide) to 122.4 mm (tele), F1.6 to F4.5
Digital Zooml 12x (432x with optical zoom)
Vision (horizzontale) 57.8° (wide end) to 1.7 ° (tele end)
Min. functioning distance 1.5 m at tele end
Min. Lighting 1/60s. mode: 1.4 lux typical (F1.6, 50 IRE) / 1/4 s mode: 0.1 lux typical (F1.6, 50 IR
User Manual
LCTSD318-326-336
www.hrcctv.com pag.5
1.2 Side identification
1. Bracket of wall to fix
2. Threaded inside attack
3. Drip
4. Inside custody
5. Security hook
6. Fan
7. Heating up plate
8. Hook-up lever and quick shell out
9. Hook tack on of security
10. Speed Dome block off
11. Objective
12. camera module
13. Transparent cover
14. Connection card
15. Inside shell blot out
8
14
User Manual
LCTSD318-326-336
pag.
6
www.hrcctv.com
2. Installation
2.1 Preparations
Precautions
• Qualified and experienced person can carry out the installation. In many countries and areas licensed people is required.
• Before the installation and connection put off the camera .
• Do not putin the camera near to the air vent of the air conditioner.
• To wall montage, lay up for LCTST300M bracket.
• Installation surface.
• Precaution: disassemble can only be carried out by qualified people.
• For fixing to wall make the necessary article of tool shop (ad es. plug, anchorage screw, etc.) .
2.2 Bracket assembling
Used screw ,darts or apt to similar to fix the bracket on the surface of installation.
1. Use bracket to marke the mounting position on wall (fig.1)
2. Fix bracket on the wall and put cables through the wall inside the bracket (fig.2).
Fig.1 Fig.2

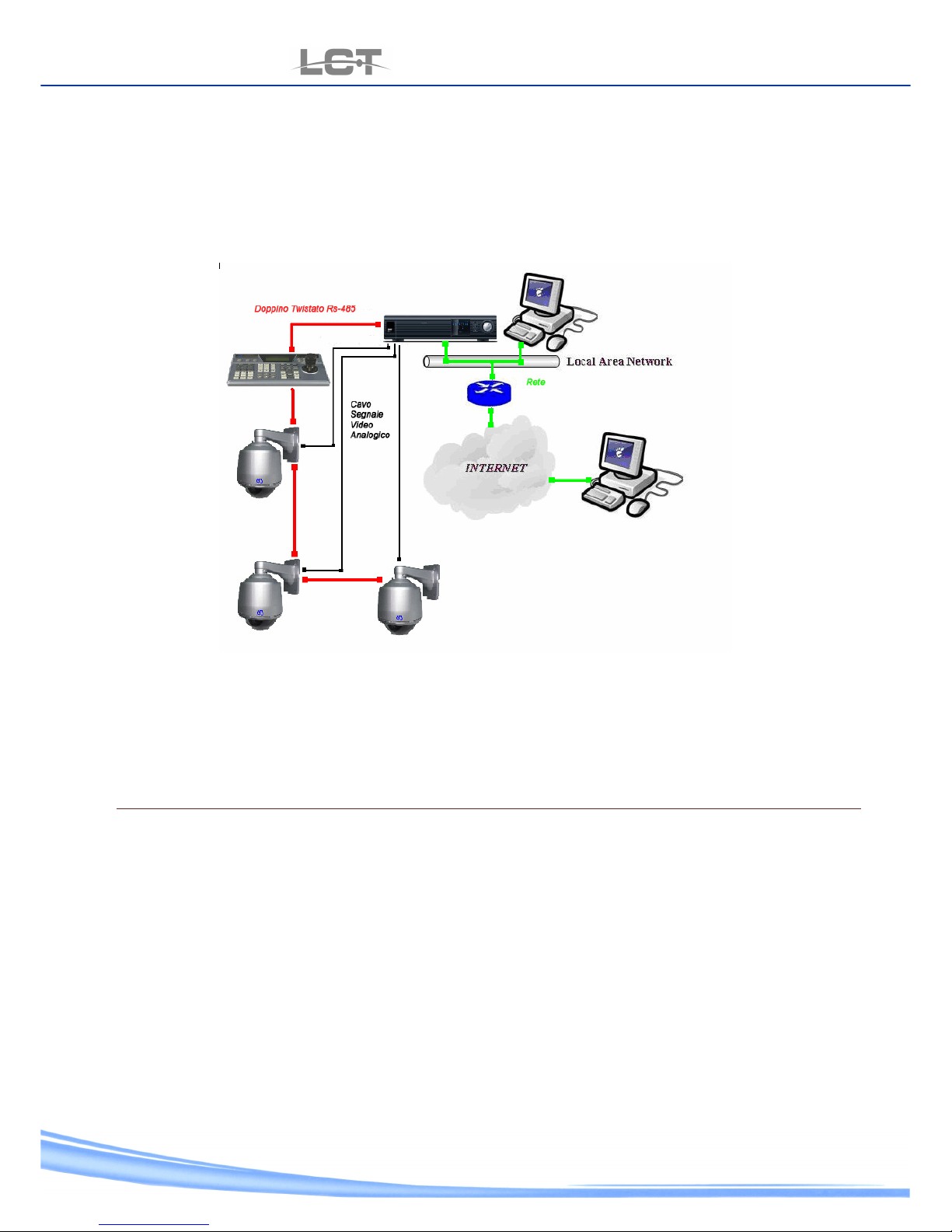

2.3 Connection
All series LCTSD Speed Dome camera have got one cable for video signal which end female BNC connector terminal box to
connect power PTZ and auxiliary alarms.
Be needed 3 types of wiring for structure set up of Speed Dome :
• Power 24V to alternate current .
• Video signal. the camera makes one commun composite video signal . Use the RG59 coaxial cable for distance 120 m ,while
for higher distances use video balun to transport the video signal up the UTP cable (LCT202T-LCT202R-LCT302T-LCT302R).
• PTZ. The LCTSD series camera use one RS485 serial BUS connection with twisted cable. Use only twisted cable RS485 Bus
can stringently to 1200 m of length and she connected to falls device. The section of the cable depends of the connection
length: one section of 0.5 mmq is sufficient for a short distance, while to use section higher of 1 mmq or 2.5 mmq is necessary
link up long distance (max. 1200 m.) . use screen cable in the wiring execution. Go to connect the camera and console in
cascade that is entering and exting from the RS485A and RS485B. do not invert the cable (A-B) during the equipment
connection . on the first and last device is necessary to connect the resistance for the correct functioning of the RS485. the
resistance value to use is 120Ohm.
proceed:
1. open the access door of connection inside of the custody (fig 3.)
2. screw the custody to the bracket to conduct cables through the hole on top of the housing (fig 4).
User Manual
LCTSD318-326-336
www.hrcctv.com pag.7
Fig.3 Fig.4
3. connect cables.
Connect these cables into the relative connector relative:
A. Video signal - BNC female connector.
B. RS485+A and RS485-B terminal box.
Open the screw of clamps put in the cables and close .Attention to the polarity electric wires( RS485+A (RX+) and RS485-B
(RX-)) in the connection with the control device (control keyboard , DVR).
C. Power cable 24VAC. Open the screw of the clamps put in the cable and close the screw.
C
A
B
D
User Manual
LCTSD318-326-336
pag.
8
www.hrcctv.com
D. IN/OUT alarm clamps
8 in put with 1 common of reference ( the in put must to pilot
at clean contacts).
1 output alarm to relay (Common, NC e NO); max. 30V, 1A.
2.4 Switches adjustment
For access to the 2 DIP-SWITCHES reverse the block of Speed dome ( pag 5) .
The DIP-SWITCH have two functions. Use for setup the switch value (Baud Rate and Protocol) and use for unit address .
Put out the camera before switches adjustment, then put on .Next table show the switch position and function .
The switch 7 and 8 of DIP Swicth 1 (SW1) be useful to setup speed of the BUS that has be common at all RS485 connect
devices:
SW 1
Baud Rate
DIP 7-8
parameter choice
Switch position
Baud Rate Data bit Parity Stop bit
2400 8 No one 1
4800
(Default)
8 No one 1
9600 8 No one 1
19200 8 No one 1
The factory start up is: 4800.
1-6 Protocol
7-
8 Baud Rate
1-8 address
SW2 SW1
Loading...
