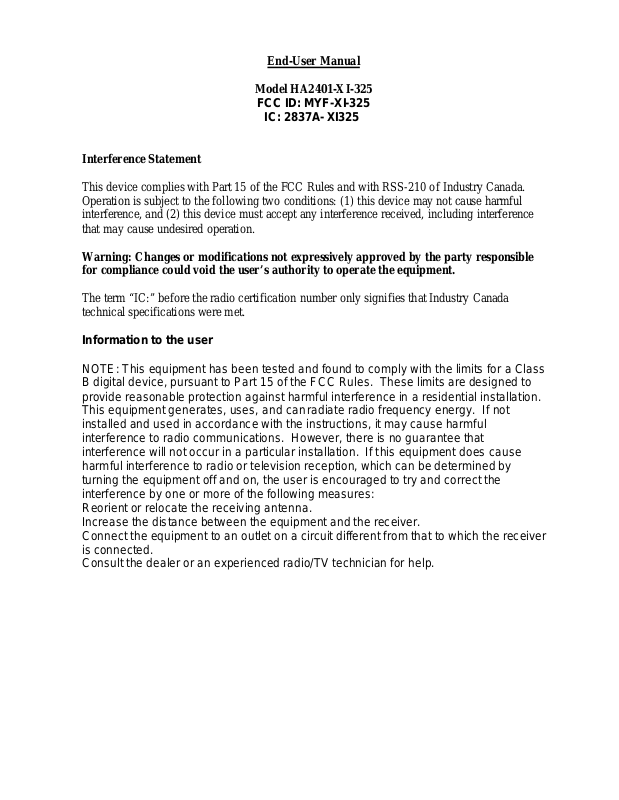

L Com XI-325 Users Manual

End-User Manual

Model HA2401-XI-325

FCC ID: MYF-XI-325

IC: 2837A- XI325

Interference Statement

This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.

Warning: Changes or modifications not expressively approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

The term “IC:” before the radio certification number only signifies that Industry Canada
technical specifications were met.

Information to the user

NOTE: This equipment has been tested and foun d to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy. If not
installed and used in accordance with the instructions, it may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the distance between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications of equipment not expressly approved by the
manufacturer could void the user’s authority to operate the equipment and the
company’s warranty.

The device and its antenna and must not be co-located or operating in
conjunction with any other antenna or transmitter.

When this device is installed either as a fixed-mount or mobile application there
is a minimum required separation distance of 20 cm from users.

For further information contact:
Hyperlink Technologies, Inc.

Technical Support Department
1201 Clint Moore Road
Boca Raton, FL 33487
Email: [e-mail]

When locating the antenna or operating this device you must observe the following
exposure limits:

When this device is installed either as a fixed-mount or mobile application there
is a minimum required separation distance of 20 cm from users.

Non-Amplified Systems:

For non-amplified systems simply plug the antenna connector into the antenna port on
the PC card and proceed to PC Card and Software Installation on the next page.

Amplified Systems:
Amplifier connections are clearly labeled on the amplifier unit as shown below.

1. Connect the antenna to the amplifier output labeled “ANTENNA”.

2. Connect the PC Card to the Amplifier input labeled “TO RADIO / DC INJECTOR”
using the pigtail cable.

3. Plug the AC adapter into the amplifier’s DC power jack and wall outlet.
Proceed to PC Card and Software Installation on the next page.
