L-com WLKIT-G, WLKIT-GI User Manual

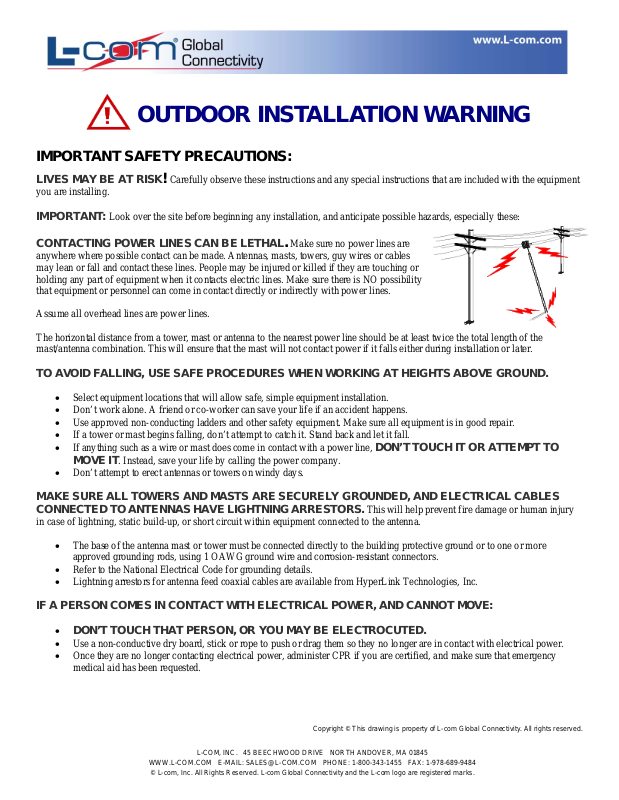

OUTDOOR INSTALLATION WARNING

IMPORTANT SAFETY PRECAUTIONS:

LIVES MAY BE AT RISK! Carefully observe these instructions and any special instructions that are included with the equipment

you are installing.

IMPORTANT: Look over the site before beginning any installation, and anticipate possible hazards, especially these:
CONTACTING POWER LINES CAN BE LETHAL. Make sure no power lines are

anywhere where possible contact can be made. Antennas, masts, towers, guy wires or cables
may lean or fall and contact these lines. People may be injured or killed if they are touching or
holding any part of equipment when it contacts electric lines. Make sure there is NO possibility
that equipment or personnel can come in contact directly or indirectly with power lines.

Assume all overhead lines are power lines.

The horizontal distance from a tower, mast or antenna to the nearest power line should be at least twice the total length of the
mast/antenna combination. This will ensure that the mast will not contact power if it falls either during installation or later.

TO AVOID FALLING, USE SAFE PROCEDURES WHEN WORKING AT HEIGHTS ABOVE GROUND.

• Select equipment locations that will allow safe, simple equipment installation.

• Don’t work alone. A friend or co-worker can save your life if an accident happens.

• Use approved non-conducting ladders and other safety equipment. Make sure all equipment is in good repair.

• If a tower or mast begins falling, don’t attempt to catch it. Stand back and let it fall.

• If anything such as a wire or mast does come in contact with a power line,

MOVE IT

• Don’t attempt to erect antennas or towers on windy days.

. Instead, save your life by calling the power company.

DON’T TOUCH IT OR ATTEMPT TO

MAKE SURE ALL TOWERS AND MASTS ARE SECURELY GROUNDED, AND ELECTRICAL CABLES
CONNECTED TO ANTENNAS HAVE LIGHTNING ARRESTORS.

in case of lightning, static build-up, or short circuit within equipment connected to the antenna.

• The base of the antenna mast or tower must be connected directly to the building protective ground or to one or more
approved grounding rods, using 1 OAWG ground wire and corrosion-resistant connectors.

• Refer to the National Electrical Code for grounding details.

• Lightning arrestors for antenna feed coaxial cables are available from HyperLink Technologies, Inc.

This will help prevent fire damage or human injury

IF A PERSON COMES IN CONTACT WITH ELECTRICAL POWER, AND CANNOT MOVE:

• DON’T TOUCH THAT PERSON, OR YOU MAY BE ELECTROCUTED.

• Use a non-conductive dry board, stick or rope to push or drag them so they no longer are in contact with electrical power.

• Once they are no longer contacting electrical power, administer CPR if you are certified, and make sure that emergency

medical aid has been requested.

Copyright © This drawing is property of L-com Global Connectivity. All rights reserved.

WWW.L-COM.COM E-MAIL: [e-mail] PHONE: [phone] FAX: [phone]

© L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks.

L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845

End-User Manual

Model HA2401-XI-325

FCC ID: MYF-XI-325

IC: 2837A - XI 325

Interference Statement

This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.

Warning: Changes or modifications not expressively approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

The term “IC:” before the radio certification number only signifies that Industry Canada
technical specifications were met.

Information to the user

NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy. If not
installed and used in accordance with the instructions, it may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the distance between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.

Copyright © This drawing is property of L-com Global Connectivity. All rights reserved.

WWW.L-COM.COM E-MAIL: [e-mail] PHONE: [phone] FAX: [phone]

© L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks.

L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845

Any changes or modifications of equipment not expressly approved by the
manufacturer could void the user’s authority to operate the equipment and the
company’s warranty.

The device and its antenna and must not be co-located or operating in
conjunction with any other antenna or transmitter.

When this device is installed either as a f ix e d-mount or mobile application there
is a minimum required separation distance of 20 cm from users.

For further information contact:
Hyperlink Technologies, Inc.

Technical Support Department
1201 Clint Moore Road
Boca Raton, FL 33487
Email: [e-mail]
