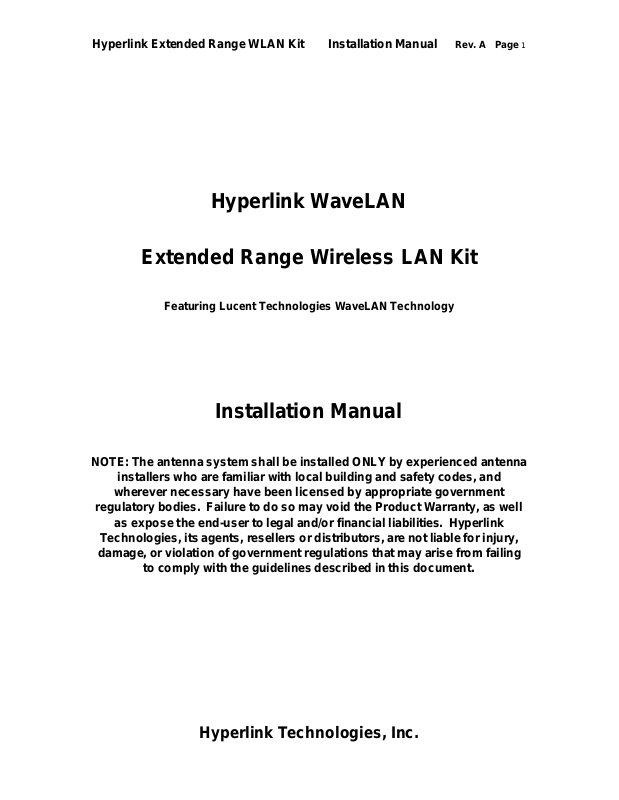

L Com WL2401 Original Manual

Hyperlink Extended Range WLAN Kit Installation Manual Rev. A Page 1

Hyperlink WaveLAN

Extended Range Wireless LAN Kit

Featuring Lucent Technologies WaveLAN Technology

Installation Manual

NOTE: The antenna system shall be installed ONLY by experienced antenna

installers who are familiar with local building and safety codes, and

wherever necessary have been licensed by appropriate government

regulatory bodies. Failure to do so may void the Product Warranty, as well

as expose the end-user to legal and/or financial liabilities. Hyperlink

Technologies, its agents, resellers or distributors, are not liable for injury,

damage, or violation of government regulations that may arise from failing

to comply with the guidelines described in this document.

Hyperlink Technologies, Inc.

Hyperlink Extended Range WLAN Kit Installation Manual Rev. A Page 2

Disclaimer: The diagrams used in this manual are for illustrative purposes only.
They should not be confused with the PC card operating in standalone mode. When
these diagrams are used the PC card transceiver will be installed in conjunction with
the specific DC Injector/Lightning Protector, Amplifier, cables and antennas listed in
this manual.

Copyright © 2000, Hyperlink Technologies, Inc.. All rights reserved. No part of the
contents of this document may be transmitted or reproduced in any form or by any
means without the written permission of Hyperlink Technologies, Inc.

Portions Copyright © Lucent Technologies, Inc. All rights reserved
HyperGain and HyperAmp are trademarks of Hyperlink Technologies, Inc.
WaveLAN, WavePOINT and Orinoco are registered trademarks of Lucent

Technologies, Inc.

Hyperlink Technologies, Inc.

Hyperlink Extended Range WLAN Kit Installation Manual Rev. A Page 3

Contents

FCC Radio Interference Statement 4
Radiation and EIRP Information 5
Introduction 6
System Features 6

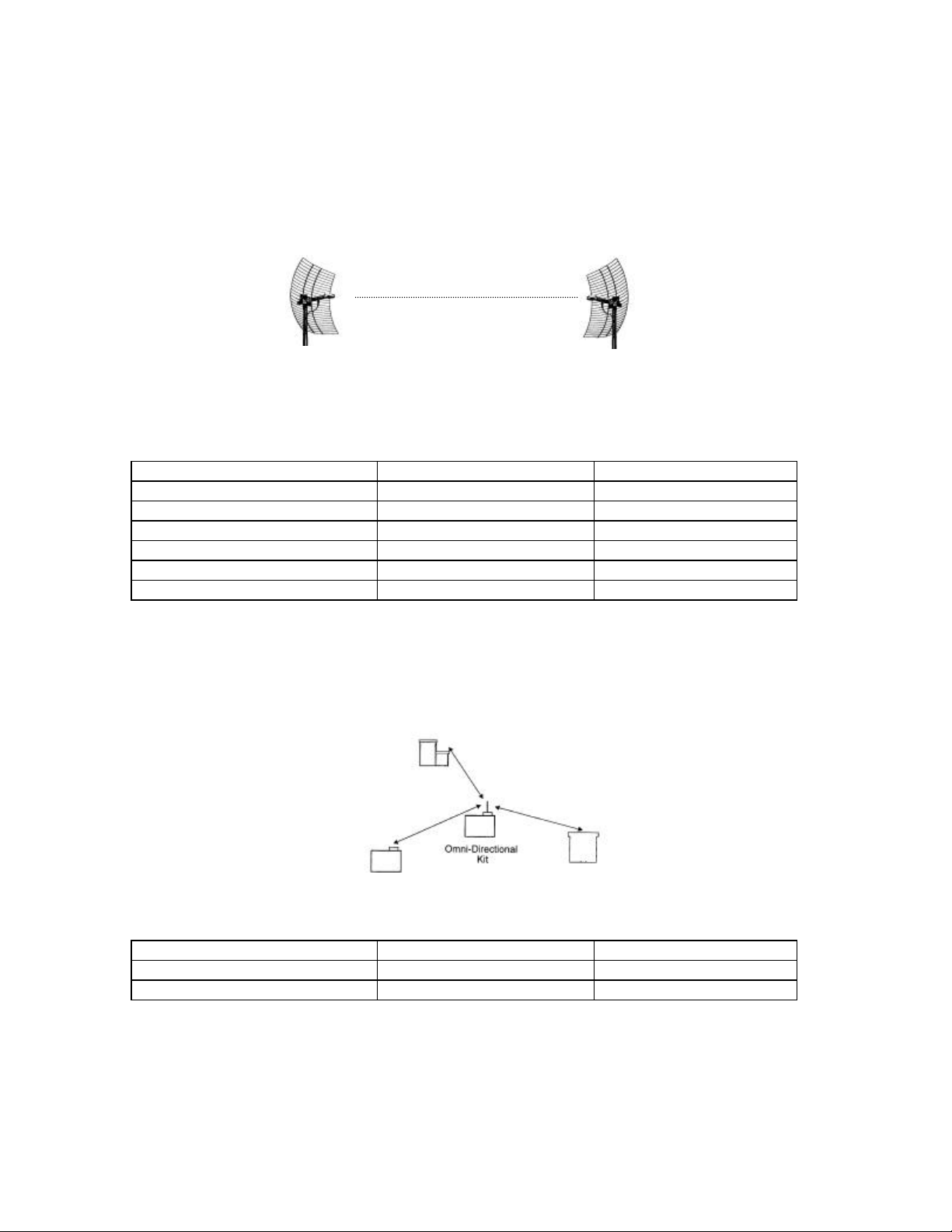

Types of Installations 7

System Requirements 8
Kit Contents 8
Tools Required 8
WaveLAN Card Features 8

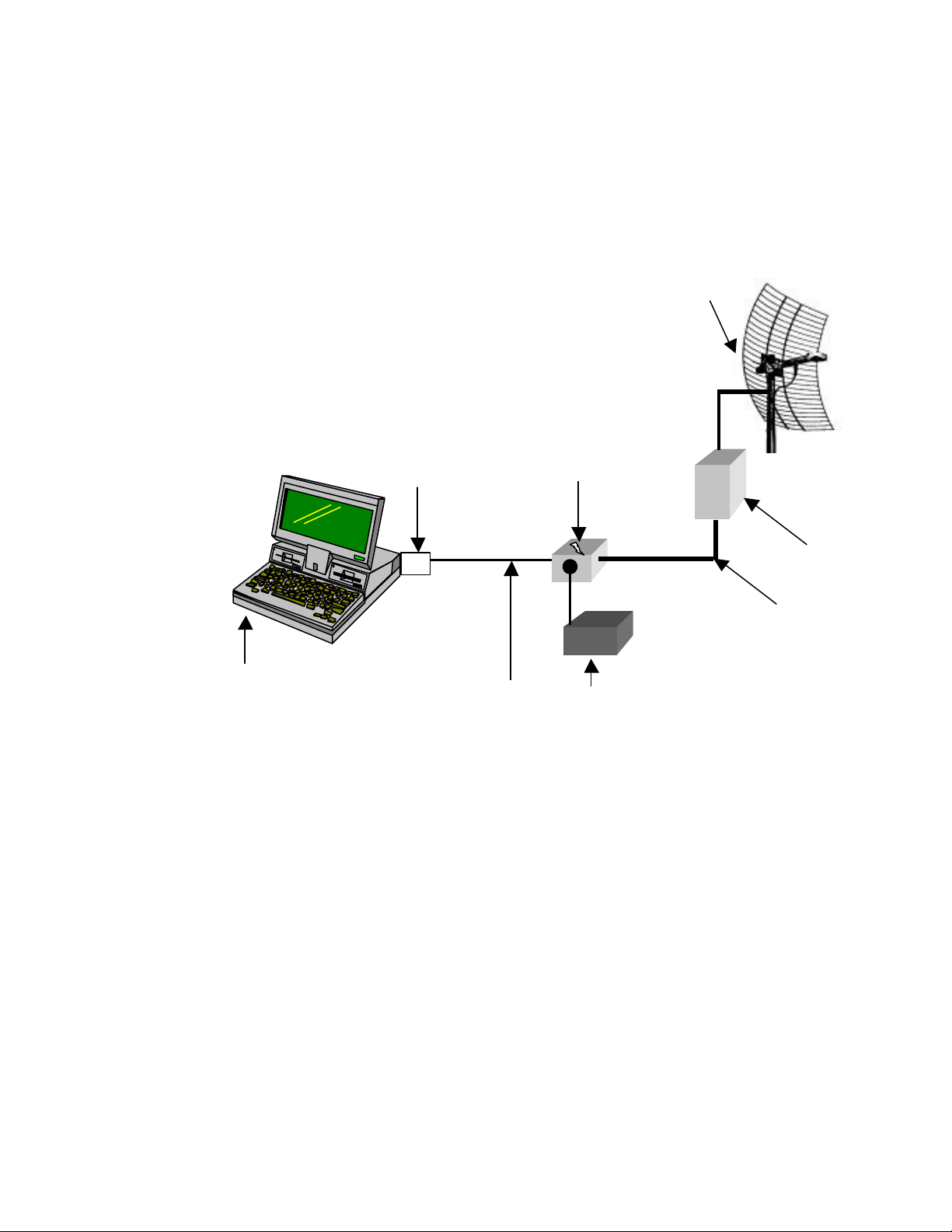

Overall System Configuration 9

Antenna System Connection 10
Surveying the Antenna Site 10
Preparing for System Installation 11
Connections & Features of the Amplifier 12
The DC Power Injector/Lightning Protector 13
Mounting & Cabling the Amplified Antenna System 14

Installing the WaveLAN PC Card 16
Channel Settings 16
Basic System Checks 17
WaveLAN Antenna Alignment Diagnostics 17

System Specifications 18

APPENDICES
Antenna Mounting Instructions Appendix A

Hyperlink Technologies, Inc.

Hyperlink Extended Range WLAN Kit Installation Manual Rev. A Page 4

USA- Federal Communications Commission (FCC)

Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

Information to the user

NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy. If not installed and used in accordance with the instructions, it
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try and
correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications of equipment not expressly approved by the
manufacturer could void the user’s authority to operate the equipment and the
company’s warranty.

NOTE: The antenna system shall be installed ONLY by experienced antenna
installers who are familiar with local building and safety codes, and
wherever necessary have been licensed by appropriate government
regulatory bodies. Failure to do so may void the Product Warranty, as well
as expose the end-user to legal and/or financial liabilities. Hyperlink
Technologies, its agents, resellers or distributors, are not liable for injury,
damage, or violation of government regulations that may arise from failing
to comply with the guidelines described in this document.

Hyperlink Technologies, Inc.

Hyperlink Extended Range WLAN Kit Installation Manual Rev. A Page 5

Caution: Exposure to Radio Frequency Radiation.

The radiated output power of this product is below the FCC radio exposure limits.
Nevertheless, this product shall be used in such a manner that the potential for
human contact during normal operation is minimized.

Antenna shall be mounted in such a manner as to minimize the potential for
human contact during normal operation. In order to avoid the possibility of
exceeding the FCC radio frequency exposure limits, human proximity to the
antenna shall not be less than 20 cm (8 inches) during normal operation.

Hyperlink Technologies is not responsible for any radio or television interference
caused by unauthorized modification of this device or the substitution or attachment
of connecting cables and equipment other than specified by Hyperlink
Technologies. The correction of interference caused by such unauthorized
modification, substitution or attachment will be the responsibility of the user.

Antenna

Type

HG2408P 7.5 24 31.5 10.6
HG2408U 8.0 24 32.0 11.2
HG2412P 12.0 20 32.2 11.5

HG2415Y 14.5 20 34.7 15.3

HG2415U 15.0 20 35.2 16.2
HG2415G 15.0 20 35.2 16.2
HG2419G 19.0 17 36.0 17.8
HG2424G 23.5 11 35.1 16.0

WARNING: It is the respons ibility of the professional installer to ensure that when
using the outdoor antenna kits in the United States (or where the FCC rules apply),
only these antenna configurations shown in the table above and which are
described in this document are used. The use of any other than those listed is
expressly forbidden in accordance to FCC rules CFR47 part 15.204.

Specified

Antenna Gain

(dBi)

Maximum Output

Power at Antenna

Terminal (dBm)

Total EIRP

(dBm)

Minimum RF

Exposure

Separation

Distance (cm)

Hyperlink Technologies, Inc.

Hyperlink Extended Range WLAN Kit Installation Manual Rev. A Page 6

Introduction

The Hyperlink Extended Range Wireless LAN Kit is a direct sequence spread
spectrum wireless transceiver providing 11 Mbit/sec data rate to support wireless
connections in an IEEE 802.3 LAN. Equipped with a Hyperlink Extended Range
Amplified Antenna System, this product offers a high-performance long-range
building-to-building wir eless networking solution.

This kit incorporates Lucent Technologies WaveLAN technology. WaveLAN uses a
state-of-the-art direct sequence spread spectrum technology to implement robust
11 Mbps transmission, and offers true “Plug and Play ” installation.

System Features:

This system has the following features:

• IEEE 802.11 Compatibility.

• Wireless 11 Mbps data rate.

• State-of-the-art spread spectrum technology provides

reliable, secure, long range, radio link operation.

• True “Plug and Play” installation for compatibility with all

802.3 and Ethernet II LAN devices, all operating systems
and all protocol stacks.

• PCMCIA Form Factor

• User-selectable channels of operation.

• Remote mounted bi-directional amplifier to optimize

transmit powe r and eliminate the effects of system cable
losses.

• Limited 2 year Warranty.
