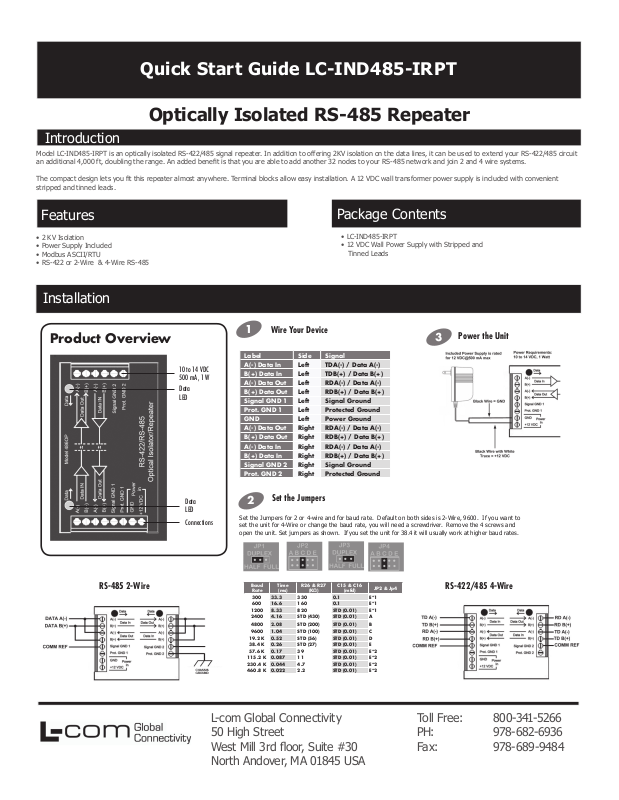

Quick Start Guide LC-IND485-IRPT

Optically Isolated RS-485 Repeater

Introduction

Model LC-IND485-IRPT is an optically isolated RS-422/485 signal repeater. In addition to offering 2KV isolation on the data lines, it can be used to extend your RS-422/485 circuit

an additional 4,000 ft, doubling the range. An added benet is that you are able to add another 32 nodes to your RS-485 net work and join 2 and 4 wire systems.

The compact design lets you t this repeater almost anywhere. Terminal blocks allow easy installation. A 12 VDC wall transformer power supply is included with convenient

stripped and tinned leads.

Features

• 2 KV Isolation

• Power Supply Included

• Modbus ASCII/RTU

• RS-422 or 2-Wire & 4-Wire RS-485

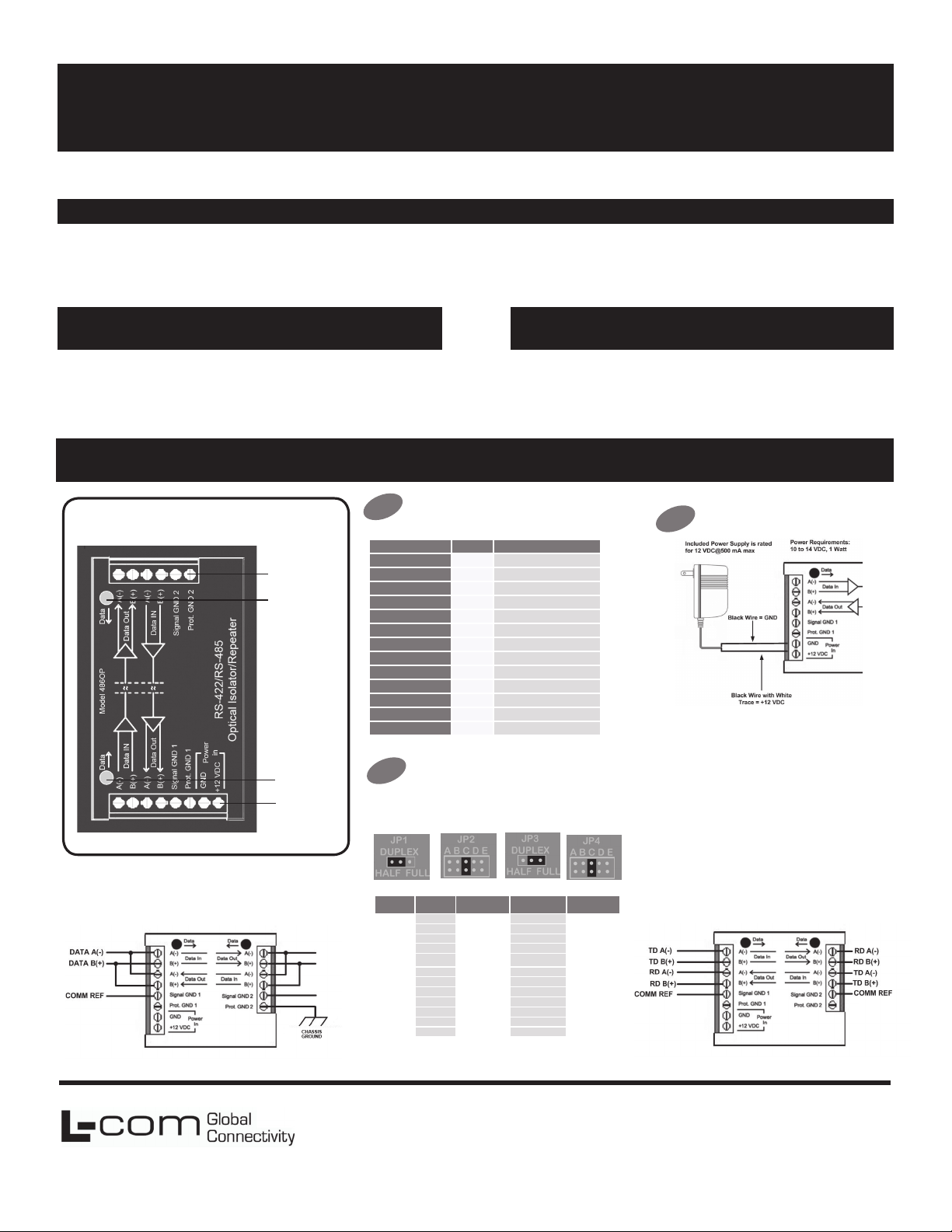

Installation

Product Overview

10 to 14 VDC 500 mA , 1 W

Data LED

Connections

Package Contents

• LC-IND485-IRPT

• 12 VDC Wall Power Supply with Stripped and

Tinned Leads

Wire Your Device

Label Side Signal A(-) Data In Left TDA(-) / Data A(-) B(+) Data In Left TDB(+) / Data B(+) A(-) Data Out Left RDA(-) / Data A(-) B(+) Data Out Left RDB(+) / Data B(+) Signal GND 1 Left Signal Ground Prot. GND 1 Left Protected Ground GND Left Power Ground A(-) Data Out Right RDA(-) / Data A(-) B(+) Data Out Right RDB(+) / Data B(+) A(-) Data In Right RDA(-) / Data A(-) B(+) Data In Right RDB(+) / Data B(+) Signal GND 2 Right Signal Ground Prot. GND 2 Right Protected Ground

Set the Jumpers

Set the Jumpers for 2 or 4-wire and for baud rate. Default on both sides is 2-Wire, 9600. If you want to set the unit for 4-Wire or change the baud rate, you will need a screwdriver. Remove the 4 screws and open the unit. Set jumpers as shown. If you set the unit for 38.4 it will usually wor k at higher baud rate s.

Power the Unit

Baud

Time

RS-485 2-Wire RS-422/485 4-Wire

Rate

300 33.3 330 0.1 E*1

600 16.6 160 0.1 E*1 1200 8.33 820 STD (0.01) E*1 2400 4.16 STD (430) STD (0.01) A

4800 2.08 STD (200) STD (0.01) B

9600 1.04 STD (100) STD (0.01) C

19.2 K 0.52 STD (56) STD (0.01) D

38.4 K 0.26 STD (27) STD (0.01) E

57.6 K 0.17 39 STD (0.01) E*2

115.2 K 0.087 11 STD (0.01) E*2

230.4 K 0.044 4.7 STD (0.01) E*2

460.8 K 0.022 2.2 STD (0.01) E*2

(ms)

R26 & R27

L-com Global Connectivity

50 High Street

West Mill 3rd oor, Suite #30

(KΩ)

C15 & C16

(mfd)

JP2 & Jp4

Toll Free: 800-341-5266 PH: 978-682-6936

Fax: 978-689-9484

North Andover, MA 01845 USA
