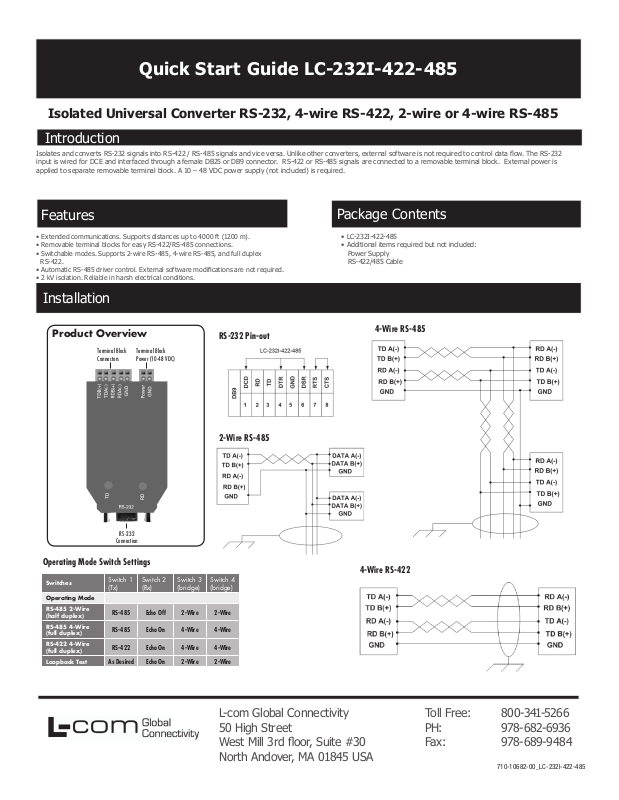

Quick Start Guide LC-232I-422-485
Isolated Universal Converter RS-232, 4-wire RS-422, 2-wire or 4-wire RS-485
Introduction
Isolates and converts RS-232 signals into RS-422 / RS-485 signals and vice versa. Unlike other conver ters, ex ternal sof tware is not required to control data ow. The RS-232
input is wired for DCE and interfaced through a female DB25 or DB9 connector. RS-422 or RS-485 signals are connected to a removable terminal block. External power is
applied to separate removable terminal block. A 10 – 48 VDC power supply (not included) is required.
Features
• Extended communications. Supports distances up to 4000 ft (1200 m).
• Removable terminal blocks for easy RS- 422/RS-485 connections.
• Switchable modes. Supports 2-wire RS- 485, 4-wire R S-485, and full duplex
RS-422.
• Automatic RS- 485 driver control. External software modications are not require d.
• 2 kV isolation. Reliable in harsh electrical conditions.

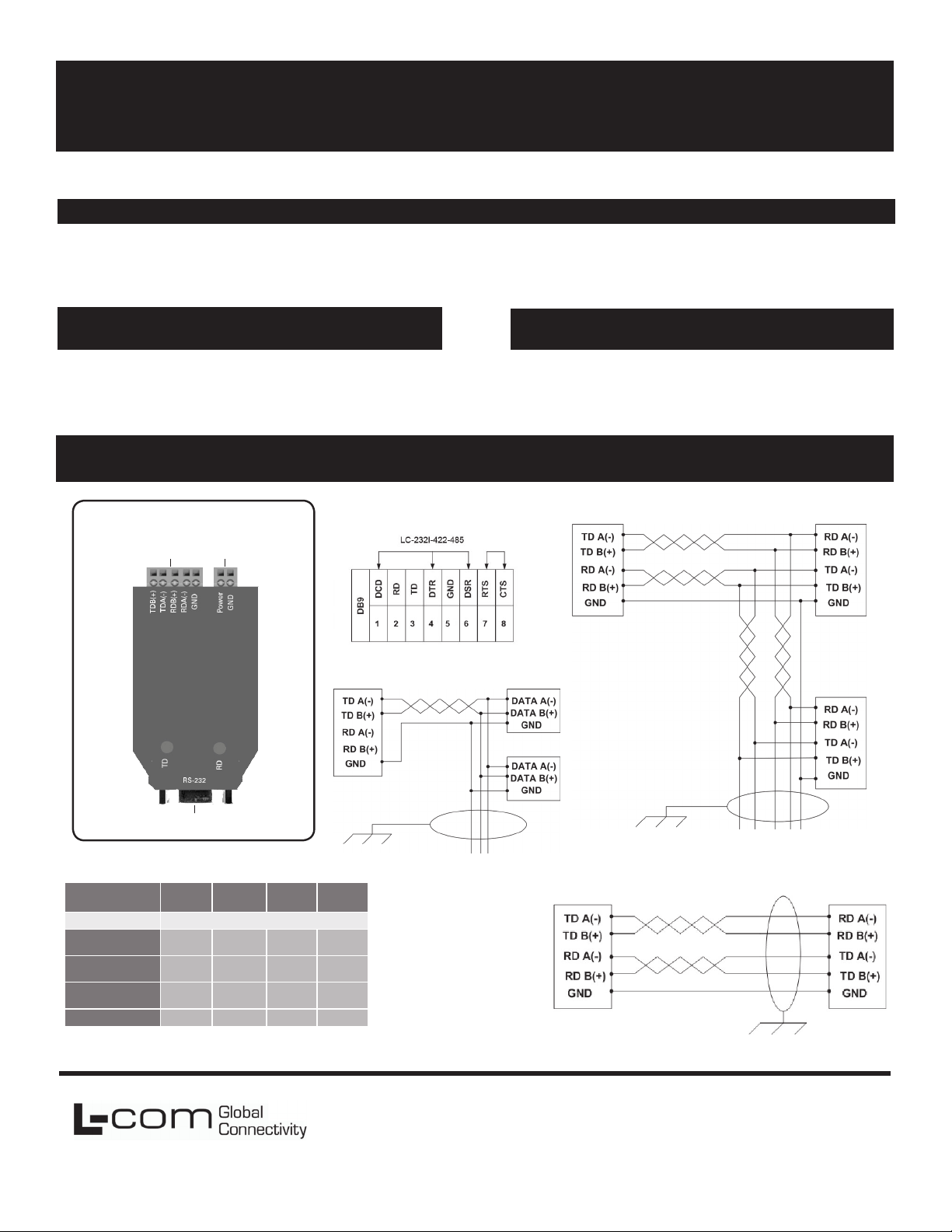

Installation
Product Overview
Terminal Block
Connectors
Terminal Block
Power (10-48 VDC)
RS-232 Pin-out
2-Wire RS-485
Package Contents
• LC-232I-422-4 85
• Additional items required but not included:
Power Supply
RS-422/485 Cable
4-Wire RS-485
RS-2 32
Connection
Operating Mode Switch Settings
Switches
Operating Mode
RS-485 2-Wire
(half duplex)
RS-485 4-Wire
(full duplex)
RS-422 4-Wire
(full duplex)
Loopback Test
Switch 1
(Tx)
As Desired Echo On 2-Wire 2-Wire
Switch 2
(Rx)
RS-485 Echo Off 2-Wire 2-Wire
RS-485 Echo On 4-Wire 4-Wire
RS-422 Echo On 4-Wire 4-Wire
Switch 3
(bridge)
Switch 4
(bridge)
L-com Global Connectivity
50 High Street
West Mill 3rd oor, Suite #30
North Andover, MA 01845 USA
4-Wire RS-422
Toll Free: 800-341-5266
PH: 978-682-6936
Fax: 978-689-9484
