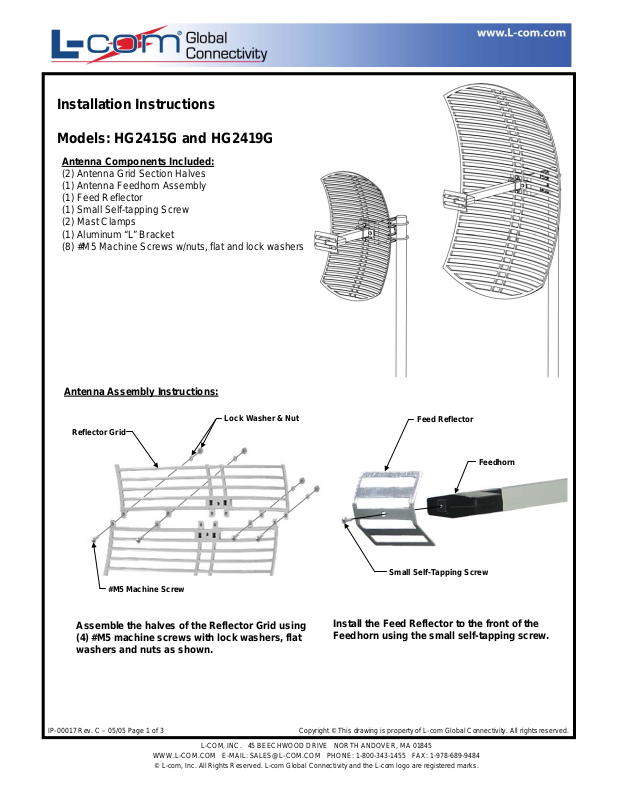

Installation Instructions
Models: HG2415G and HG2419G
Antenna Components Included:
(2) Antenna Grid Section Halves
(1) Antenna Feedhorn Assembly
(1) Feed Reflector
(1) Small Self-tapping Screw
(2) Mast Clamps
(1) Aluminum “L” Bracket
(8) #M5 Machine Screws w/nuts, flat an d lock washers
Antenna Assembly Instructions:
Lock Washer & Nut
Reflector Grid
#M5 Machine Screw
Assemble the halves of the Reflector Grid using
(4) #M5 machine screws with lock washers, flat
washers and nuts as shown.
Feed Reflector
Feedhorn
Small Self-Tapping Screw
Install the Feed Reflector to the front of the
Feedhorn using the small self-tapping screw.
IP-00017 Rev. C – 05/05 Page 1 of 3
WWW.L-COM.COM E-MAIL: SALES@L-COM.COM PHONE: 1-800-343-1455 FAX: 1-978-689-9484
© L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks.
Copyright © This drawing is property of L-com Global Connectivity. All rights reserved.
L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845
HG2415G and HG2419G Installation Instructions
Determine the polarity which will be chosen
for the antenna installation. The antenna can
be installed either vertically or horizontally
polarized.
The two polarities are illustrated below:
Feed Reflector
Position the “L” Bracket to the back of the Grid Assembly,
noting the orientation required for the desired polarity.
Position the Feedhorn to the front of the Grid Assembly,
again noting the orientation required for the desired polarity .
Secure the Feedhorn & “L” Bracket to the Grid Assembly
using (4) #M6 machine screws with lock washers, flat
washers and nuts.
“L” Bracket
Horizontal
Polarity
Important Note: Feed Reflector must be orientated to
grid as shown for optimal antenna performance.
Vertical
Polarity
Feedhorn
Grid Assembly
Install the (2) Mast Clamps on the U-Bolts as shown
and fasten to the “L” Bracket using (4) lock washers
and (4) Nuts.
“L” Bracket
Mast
OPTIONAL TILTED MOUNTING
Fixed Tilt Positions
Tilt Slot
Mast Clamps
IP-00017 Rev. C – 05/05 Page 2 of 3
WWW.L-COM.COM E-MAIL: SALES@L-COM.COM PHONE: 1-800-343-1455 FAX: 1-978-689-9484
© L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks.
To mount antenna assembly in a tilted position,
U-Bolts
attach (1) U-Bolt assembly to either the fixed tilt
positions or to the tilt slot (as shown) on the
“L” Bracket.
Copyright © This drawing is property of L-com Global Connectivity. All rights reserved.
L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845
IMPORTANT SAFETY PRECAUTIONS:
LIVES MAY BE AT RISK! Carefully observe these instructions and any special instructions that are included with
the equipment you are installing.
IMPORTANT: Look over the site before beginning any installation, and anticipate possible hazards, especially these:
CONTACTING POWER LINES CAN BE LETHAL. Make sure no power
lines are anywhere where possible contact can be made. Antennas, masts,
towers, guy wires or cables may lean or fall and contact these lines. People
may be injured or killed if they are touching or holding any part of equipment
when it contacts electric lines. Make sure there is NO possibility that equipment
or personnel can come in contact directly or indirectly with power lines.
Assume all overhead lines are power lines.
The horizontal distance from a tower, mast or antenna to the nearest power line should be at least twice the total
length of the mast/antenna combination. This will ensure that the mast will not contact power if it falls either during
installation or later.
TO AVOID FALLING, USE SAFE PROCEDURES WHEN WORKING AT HEIGHTS ABOVE GROUND.
• Select equipment locations that will allow safe, simple equipment installation.
• Don’t work alone. A friend or co-worker can save your life if an accident happens.
• Use approved non-conducting ladders and other safety equipment. Make sure all equipment is in good repair.
• If a tower or mast begins falling, don’t attempt to catch it. Stand back and let it fall.
• If anything such as a wire or mast does come in contact with a power line,
MOVE IT
. Instead, save your life by calling t he power company.
• Don’t attempt to erect antennas or towers on windy days.
DON’T TOUCH IT OR ATTEMPT TO
MAKE SURE ALL TOWERS AND MASTS ARE SECURELY GROUNDED, AND ELECTRICAL CABLES
CONNECTED TO ANTENNAS HAVE LIGHTNING ARRESTORS.
human injury in case of lightning, static build-up, or short circuit within equipment connected to the antenna.
• The base of the antenna mast or tower must be connected directly to the building protective ground or to one or
more approved grounding rods, using 1 OAWG ground wire and corrosion-resistant connectors.
• Refer to the National Electrical Code for grounding details.
• Lightning arrestors for antenna feed coaxial cables are available from HyperLink Technologies, Inc.
This will help prevent fire damage or
IF A PERSON COMES IN CONTACT WITH ELECTRICAL POWER, AND CANNOT MOVE:
• DON’T TOUCH THAT PERSON, OR YOU MAY BE ELECTROCUTED.
• Use a non-conductive dry board, stick or rope to push or drag them so they no longer are in contact with electrical
power.
• Once they are no longer contacting electrical power, administer CPR if you are certified, and make sure that
emergency medical aid has been requested.
IP-00017 Rev. C – 05/05 Page 3 of 3
