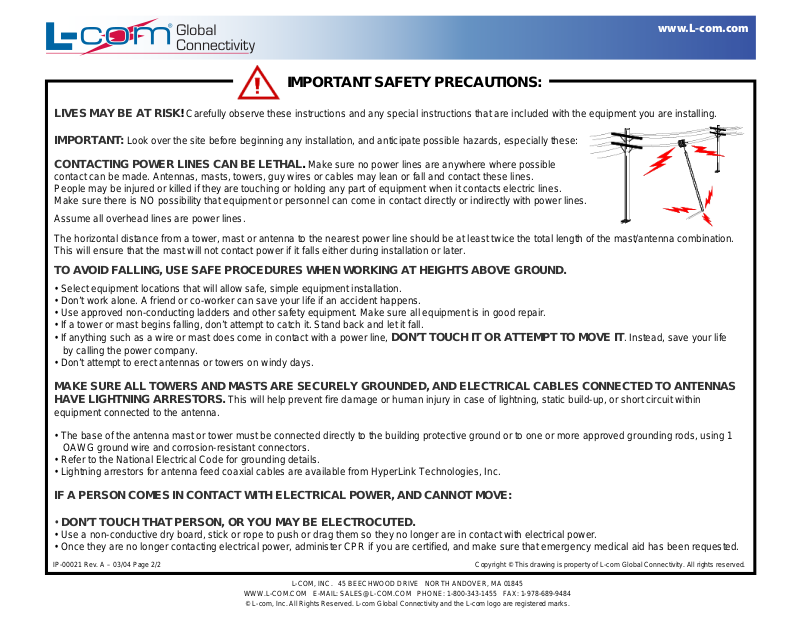

IMPORTANT SAFETY PRECAUTIONS:
LIVES MAY BE AT RISK! Carefully observe these instructions and any special instructions that are included with the equipment yo u are inst alling.
IMPORTANT:
Look over the site before beginning any installation, and anticipate possible hazards, especially these:
CONTACTING POWER LINES CAN BE LETHAL. Make sure no power lines are anywhere where possible
contact can be made. Antennas, masts, towers, guy wires or cables may lean or fall and contact these lines.
People may be injured or killed if they are touching or holding any part of equipment when it contacts electric lines.
Make sure there is NO possibility that equipment or personnel can come in contact directly or indirectly with power lines.
Assume all overhead lines are power lines.
The horizontal distance from a tower, mastorantenna to the nearest power line should be at least twice the total length of the mast/antenna combination.
This will ensure that the mast will not contact power if it falls either during installation or later.
TO AVOID FALLING, USE SAFE PROCEDURES WHEN WORKING AT HEIGHTS ABOVE GROUND.
• Select equipment locations that will allow safe, simple equipment installation.
•Don’t work alone. A friend or co-worker can save your life if an accident happens.
• Use approved non-conducting ladders and other safety equipment. Make sure all equipment is in good repair.
•If atower or mast begins falling, don’t attempt to catch it. Stand back and let it fall.
• If anything such as a wire or mast does come in contact with a power line,
DON’T TOUCH IT OR ATTEMPT TO MOVE IT. Instead, save your life
by calling the power company.
• Don’t attempt to erect antennas or towers on windy days.
MAKE SURE ALL TOWERS AND MASTS ARE SECURELY GROUNDED, AND ELECTRICAL CABLES CONNECTED TO ANTENNAS
HAVE LIGHTNING ARRESTORS.
equipment connected to the antenna.
This will help prevent fire damage or human injury in case of lightning, static build-up, or short circuit within
• The base of the antenna mast or tower must be connected directly to the building protective ground or to one or more approved grounding rods, using 1
OAWG ground wire and corrosion-resistant connectors.
• Refer to the National Electrical Code for grounding details.
• Lightning arrestors for antenna feed coaxial cables are available from HyperLink Technologies, Inc.
IF A PERSON COMES IN CONTACT WITH ELECTRICAL POWER, AND CANNOT MOVE:
• DON’T TOUCH THAT PERSON, OR YOU MAY BE ELECTROCUTED.
• Use a non-conductive dry board, stick or rope to push or drag them so they no longer are in contact with electrical power.
• Once they are no longer contacting electrical power, administer CPR if you are certified, and make sure that emergency medical aid has been requested.
IP-00021 Rev. A – 03/04 Page 2/2
L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845
WWW.L-COM.COM E-MAIL: SALES@L-COM.COM PHONE: 1-800-343-1455 FAX: 1-978-689-9484
© L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks.
Copyright © This drawing is property of L-com Global Connectivity. All rights reserved.
INSTALLATION INSTRUCTIONS: HG2418P
www.L-com.com
Figure A
Vertical Polarized Position
(As shippe
d from factory
)
Open Drain Hole
on
botto
m
Vertical or Horizontal Polarized Mounting
1. This antenna can be vertica
polarized moun
po
larized position.
2.
To mount the an
ted (F
tenna i
the position shown in Figure B. Note
3. Remove the drain hole pl
shown.
4. Attach antenna to L-Bracket using the (4) pan head screws.
IP-00021 Rev. A – 03/04 Page 1/2
l polarized mounted (Figure A) or horizontal
igure B). It is shipped from the factory in the vertical
n the horizonta
ug from curr
l polarized positi
tion label on rear of antenna.
orienta
ent location and replace into position
WWW.L-COM.COM E-MAIL: SALES@L-COM.COM PHONE: 1-800-343-1455 FAX: 1-978-689-9484
© L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks.
L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845
Drain Hole Plug
on, rotate antenna i
nto
Drain Hole Plug
Horizontal Pol
Figure B
arized Positi
on
Open Drain Hole
on bottom
Mounting
1.
Mount the ante
nna as sho
tightened to prevent antenna shift in high wind.
2. The antenna can be mounted in a up or down tilt position from 0-60°.
See below for mounting options.
0°
10°
Fixed
Mounting
20°
30°
40°
50°
60°
L-Bracket shown for down-tilt mounting. For up-tilt,
rotate brack
Copyright © This drawing is property of L-com Global Connectivity. All rights reserved.
et 180 degrees when attach
wn,
uring U-Bolt nuts are securely
ens
L-Bracket Mounting Options
Variab
le
Mounting
0°-60°
Fixed 0° Mounting
ing
to antenn
a.
