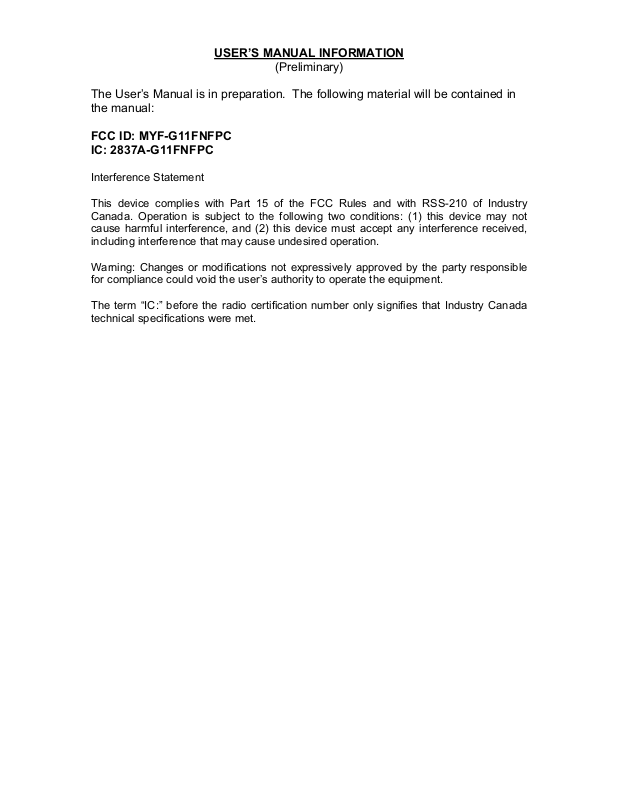

USER’S MANUAL INFORMATION
(Preliminary)
The User’s Manual is in preparation. The following material will be contained in
the manual:
FCC ID: MYF-G11FNFPC
IC: 2837A-G11FNFPC
Interference Statement
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Warning: Changes or modifications not expressively approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
The term “IC:” before the radio certification number only signifies that Industry Canada
technical specifications were met.
Information to the User / Installer
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy. If not installed
and used in accordance with the instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try and correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications of equipment not expressly approved by the manufacturer
could void the user’s authority to operate the equipment and the company’s warranty.
NOTE: THE ANTENNA SYSTEM SHALL BE INSTALLED ONLY BY EXPERIENCED
ANTENNA INSTALLERS WHO ARE FAMILIAR WITH LOCAL BUILDING AND
SAFETY CODES, AND WHEREVER NECESSARY HAVE BEEN LICENSED BY
APPROPRIATE GOVERNMENT REGULATORY BODIES. FAILURE TO DO SO MAY
VOID THE PRODUCT WARRANTY, AS WELL AS EXPOSE THE END-USER TO
LEGAL AND/OR FINANCIAL LIABILITIES. HYPERLINK TECHNOLOGIES, IT’S
AGENTS, RESELLERS OR DISTRIBUTORS, ARE NOT LIABLE FOR INJURY,
DAMAGE, OR VIOLATION OF GOVERNMENT REGULATIONS THAT MAY ARISE
FROM FAILING TO COMPLY WITH THE GUIDELINES DESCRIBED IN THIS
DOCUMENT.
NOTE: FIXED, POINT-TO-POINT OPERATION EXCLUDES THE USE OF POINT-TOMULTIPOINT SYSTEMS, OMNIDIRECTIONAL APPLICATIONS, AND MULTIPLE COLOCATED INTENTIONAL RADIATORS TRANSMITTING THE SAME INFORMATION.
THE INSTALLER IS RESPONSIBLE FOR ENSURING THAT THE SYSTEM IS USED
EXCLUSIVELY FOR FIXED, POINT-TO-POINT OPERATIONS. (I.E. THE DEVICE
AND ITS ANTENNA MUST NOT BE CO-LOCATED OR OPERATING IN
CONJUNCTION WITH ANY OTHER ANTENNA OR TRANSMITTER). (REFERENCE
FCC PART 15.247(B)(4)(III))
The table on the following page identifies which antennas are considered “fixed” and
which are “mobile”. When this device is installed as a fixed-mount application there is a
minimum required separation distance of one (1) meter between the antenna and all
persons during normal operation. For mobile mounted antennas, the required
separation distance is a minimum of twenty (20) cm between the antenna and all
persons during normal use.
AN/AN/AN/A
AN/AN/AN/A
AN/AN/A
For Amplifier(s): HA2401GI-XXX, HA2401G-XXX, where XXX stands for the amplifier power rating labeled in mW (see below)
FCC / IC Compliant Configurations - Channels of Operation
Antenna Model Antenna Type Gain (dBi) 29.2 29 28 27 26 24 23 20 18 17 14 17.5 (dBm)
1000 800 630 500 400 250 200 100 60 50 25 (mW) - as labeled
HG2401U whip/monopole 1 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 -
HG2402RD whip/monopole 2 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 -
HG2403RD whip/monopole 3 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 -
HG2403UR whip/monopole 3 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 - Channel
HG2404CU whip/monopole 3 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 - 1
RE05E whip/monopole 5 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 - 2
RE05U whip/monopole 5 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 1-11 3
HG2405 whip/monopole 5 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 - 4
HG2406U whip/monopole 6 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 - 5
HG2407U whip/monopole 7 N/A 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 - 6
HG2408U whip/monopole 8 N/A 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 - 7
HG2409U whip/monopole 8.5 N/A 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 - 8
HGV-2409U whip/monopole 8.5 N/A 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 - 9
HG2410U whip/monopole 10 N/A N/A 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 - 10
HG2412U whip/monopole 12 N/A N/A N/A 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 - 11
HG2415U-PRO whip/monopole 15 N/
HG2409P patch 8 N/A 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 -
HG2408P patch 8 N/A 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 -
HG2412P patch 12 N/A N/A 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 -
HG2414P patch 14 N/A N/A N/A 4-6 4-6 4-6 4-6 4-6 4-6 4-6 4-6 -
HG2416P patch 16 N/
HG2409Y Yagi-Uda 9 N/A 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 -
HG2412Y Yagi-Uda 12 N/A N/A 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 -
HG2415Y Yagi-Uda 14.5 N/
Configurations in BLACK can be used in either MOBILE OR FIXED MOUNTED Installations (FILTER REQUIRED)
Configurations in BLUE can be used in either MOBILE OR FIXED MOUNTED Installations (NO FILTER REQUIRED)
Configurations in RED can only be used in FIXED MOUNTED Installations (FILTER REQUIRED)
Configurations with N/A are NOT PERMISSIBLE, via. FCC 15.247(b)(4)(i)
Configurations with "-" are NOT PERMISSIBLE as they do not meet the FCC Part 15 restricted band limits
Amplifier Power Rating
4-8 4-8 4-8 4-8 4-8 4-8 4-8 -
4-6 4-6 4-6 4-6 4-6 4-6 4-6 -
4-8 4-8 4-8 4-8 4-8 4-8 4-8 4-8 -
Card Alone
Frequency (MHz)
2412
2417
2422
2427
2432
2437
2442
2447
2452
2457
2462
Important Information
Your wireless system has been installed and configured by an RF professional to comply
with FCC Part 15 regulations. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the installation and configuration
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
end user will be required to correct the interference at their own expense.
Modifications to this system including changing the antenna, power setting or transmit
channel may result in a non-compliant system, and should only be undertaken by
professional installers after reading the Installation Guide for this system.
For further information contact:
Hyperlink Technologies
Technical Support Dept.
1201 Clint Moore Road
Boca Raton, FL 33487
Email: support@hyperlinktech.com
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment when
installed as directed. When this device is installed as
a fixed-mount application there is a minimum required
separation distance of one (1) meter between the
antenna and all persons during normal operation. For
mobile mounted antennas, the required separation
distance is a minimum of twenty (20) cm between the
antenna and all persons during normal use.
Installer: Please post this notice in a prominent location near the transmitter.
SAFETY NOTICE
