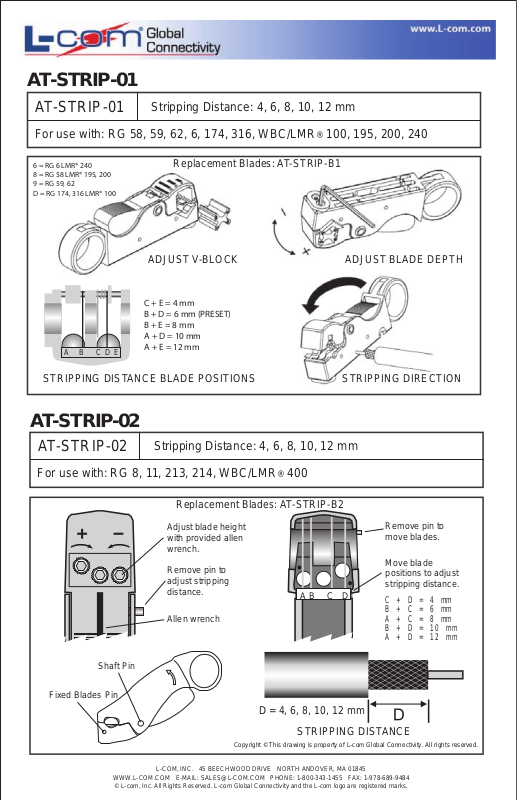

L-com AT-STRIP-02 User Manual

AT-STRIP-01

For use with: RG 58, 59, 62, 6, 174, 316, WBC/LMR® 100, 195, 200, 240

Stripping Distance: 4, 6, 8, 10, 12 mm

6 = RG 6 LMR® 240 8 = RG 58 LMR® 195, 200 9 = RG 59, 62 D = RG 174, 316 LMR® 100

Replacement Blades: AT-STRIP-B1

ADJUST V-BLOCK

C + E = 4 mm B + D = 6 mm (PRESET) B + E = 8 mm A + D = 10 mm

A B C D E

A + E = 12 mm

STRIPPING DISTANCE BLADE POSITIONS

AT-STRIP-02

For use with: RG 8, 11, 213, 214, WBC/LMR® 400

Stripping Distance: 4, 6, 8, 10, 12 mm

Replacement Blades: AT-STRIP-B2

Adjust blade height with provided allen wrench.

Remove pin to adjust stripping distance.

Allen wrench

ADJUST BLADE DEPTH

STRIPPING DIRECTION

A B C D

Remove pin to move blades.

Move blade positions to adjust stripping distance.

C + D = 4 mm B + C = 6 mm A + C = 8 mm B + D = 10 mm A + D = 12 mm

Shaft Pin

Fixed Blades Pin

D = 4, 6, 8, 10, 12 mm

L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845

WWW.L-COM.COM E-MAIL: SALES@L-COM.COM PHONE: 1-800-343-1455 FAX: 1-978-689-9484

STRIPPING DISTANCE
