L-com AL-CAT5W User Manual

www.L-com.com

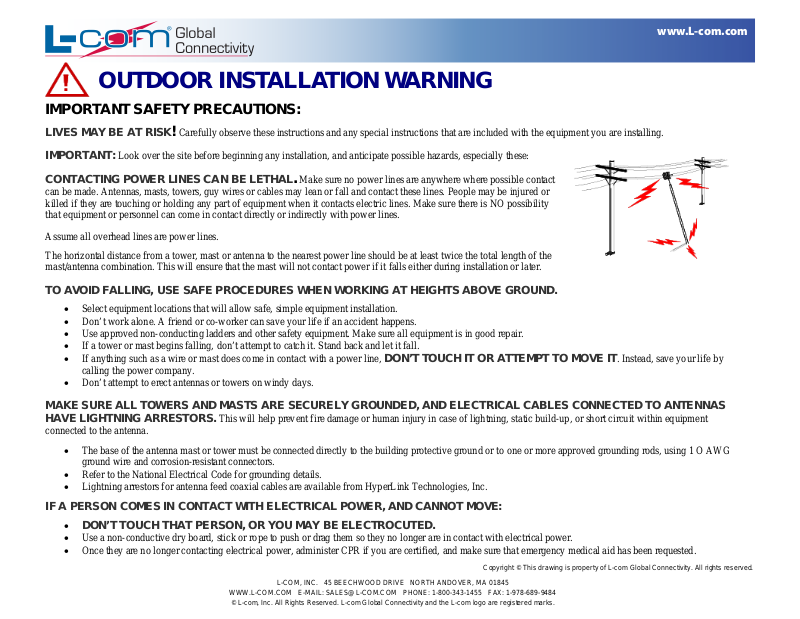

OUTDOOR INSTALLATION WARNING

IMPORTANT SAFETY PRECAUTIONS:

LIVES MAY BE AT RISK! Carefully observe these instructions and any special instructions that are included with the equipment you are installing.
IMPORTANT:

CONTACTING POWER LINES CAN BE LETHAL.

can be made. Antennas, masts, towers, guy wires or cables may lean or fall and contact these lines. People may be injured or
killed if they are touching or holding any part of equipment when it contacts electric lines. Make sure there is NO possibility
that equipment or personnel can come in contact directly or indirectly with power lines.

Assume all overhead lines are power lines.
The horizontal distance from a tower, mast or antenna to the nearest power line should be at least twice the total length of the

mast/antenna combination. This will ensure that the mast will not contact power if it falls either during installation or later.

Look over the site before beginning any installation, and anticipate possible hazards, especially these:

Make sure no power lines are anywhere where possible contact

TO AVOID FALLING, USE SAFE PROCEDURES WHEN WORKING AT HEIGHTS ABOVE GROUND.

• Select equipment locations that will allow safe, simple equipment installation.

• Don’t work alone. A friend or co-worker can save your life if an accident happens.

• Use approved non-conducting ladders and other safety equipment. Make sure all equipment is in good repair.

• If a tower or mast begins falling, don’t attempt to catch it. Stand back and let it fall.

• If anything such as a wire or mast does come in contact with a power line,

calling the power company.

• Don’t attempt to erect antennas or towers on windy days.

DON’T TOUCH IT OR ATTEMPT TO MOVE IT. Instead, save your life by

MAKE SURE ALL TOWERS AND MASTS ARE SECURELY GROUNDED, AND ELECTRICAL CABLES CONNECTED TO ANTENNAS
HAVE LIGHTNING ARRESTORS.

connected to the antenna.

This will help prevent fire damage or human injury in case of lightning, static build-up, or short circuit within equipment

• The base of the antenna mast or tower must be connected directly to the building protective ground or to one or more approved grounding rods, using 1 O AWG
ground wire and corrosion-resistant connectors.

• Refer to the National Electrical Code for grounding details.

• Lightning arrestors for antenna feed coaxial cables are available from HyperLink Technologies, Inc.

IF A PERSON COMES IN CONTACT WITH ELECTRICAL POWER, AND CANNOT MOVE:

DON’T TOUCH THAT PERSON, OR YOU MAY BE ELECTROCUTED.

•

• Use a non-conductive dry board, stick or rope to push or drag them so they no longer are in contact with electrical power.

• Once they are no longer contacting electrical power, administer CPR if you are certified, and make sure that emergency medical aid has been requested.

Copyright © This drawing is property of L-com Global Connectivity. All rights reserved.

WWW.L-COM.COM E-MAIL: [e-mail] PHONE: [phone] FAX: [phone]

© L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks.

L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845

www.L-com.com

AL-CAT5W Connection Diagram

LINE SIDE

Application Note:

This unit will not work with Cisco®
Power Over Ethernet Injectors.

Terminal Strip*

RJ-45 Jack*

To Ground

RJ-45 Jack*

Terminal Strip*

*Unit provides protection
to both sides equally.

EQUIPMENT SIDE

We recommend HyperLink Technologies'
Cisco® compatible BT-CAT5-P1R DC Injector.

AIP-00040 Rev. D – 09/06 Page 2/5

WWW.L-COM.COM E-MAIL: [e-mail] PHONE: [phone] FAX: [phone]

© L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks.

CAT5 Cables

(Terminated or Unterminated)

Copyright © This drawing is property of L-com Global Connectivity. All rights reserved.

L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

www.L-com.com

1. Position the suppressor with the strain reliefs down
when mounting.

2. The data cable can be connected to the suppressor
via the RJ45 jacks or terminal strips.

For use with Terminal Strip: Install the data cable
through the strain reliefs, strip back cable jackets as
needed and terminate the data wires to the screw down
terminal blocks (Pinouts located next to terminal strip).
Terminal strips can be removed to ease wiring.

For use with RJ45 jacks: Install the data cable through
the strain reliefs and then terminate with RJ45 connectors.
Pinouts for jacks are as follows:

CAT5 Pinout: 1 - Data 1 +
2 - Data 1 ­ 3 - Data 2 +
6 - Data 2 ­ 4 - DC 1
5 - DC 1
7 - DC 2
8 - DC 2

RJ-45

LINE SIDE

TERMINAL

STRIP

AL-CAT5W Installation Instructions

DIODE CLAMP

ARRAY

RJ-45

EQUIPMENT
SIDE

TERMINAL

STRIP

3. Adjust the cable inside the of the unit to ensure proper closing
of cover, then secure by tightening strain reliefs onto cables.

4. Attach cover using the provided hardware.

5. To ensure proper operation of suppressor,
install an earth ground to the external ground
lug on the unit.

Note: This unit provides Bi-Directional Protection,
input and output cables may be interchanged.

AIP-00040 Rev. D – 09/06 Page 3/5

L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845

WWW.L-COM.COM E-MAIL: [e-mail] PHONE: [phone] FAX: [phone]

© L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks.

EARTH GROUND

Application Note:
This unit will not work with Cisco® Power Over Ethernet Injectors.
We recommend HyperLink Technologies' Cisco® compatible
BT-CAT5-P1R DC Injector.

Copyright © This drawing is property of L-com Global Connectivity. All rights reserved.

CAT5 (EIA 568-B) Cable

www.L-com.com

CAT5 Cable Reference

RJ45 Pin/Color

1 WHT/ORG
2 ORG
3 WHT/GRN
6 GRN
5 WHT/BLU
4 BLU
7 WHT/BRN
8 BRN

RJ45 Pin/Color

1 WHT/GRN
2 GRN

LINE

DATA PAIR 1 +
DATA PAIR 1 ­DATA PAIR 2 +
DATA PAIR 2 ­DC 1
DC 1
DC 2
DC 2

EQUIPMENT

DATA PAIR 1 +
DATA PAIR 1 ­DATA PAIR 2 +
DATA PAIR 2 ­DC 1
DC 1
DC 2
DC 2

AL-CAT5W Lightning Protector

CAT5 (EIA 568-A) Cable

LINE

DATA PAIR 1 +
DATA PAIR 1 -

EQUIPMENT

DATA PAIR 1 +
DATA PAIR 1 -

RJ45 Pin/Color

1 WHT/ORG
2 ORG
3 WHT/GRN
6 GRN
5 WHT/BLU
4 BLU
7 WHT/BRN
8 BRN

RJ45 Pin/Color

1 WHT/GRN

2 GRN
3 WHT/ORG
6 ORG
5 WHT/BLU
4 BLU
7 WHT/BRN
8 BRN

AIP-00040 Rev. D – 09/06 Page 4/5

DATA PAIR 2 +
DATA PAIR 2 ­DC 1
DC 1
DC 2
DC 2

DATA PAIR 2 +
DATA PAIR 2 ­DC 1
DC 1
DC 2
DC 2

3 WHT/ORG

6 ORG

5 WHT/BLU

4 BLU

7 WHT/BRN

8 BRN

AL-CAT5W Lightning Protector

Copyright © This drawing is property of L-com Global Connectivity. All rights reserved.

WWW.L-COM.COM E-MAIL: [e-mail] PHONE: [phone] FAX: [phone]

© L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks.

L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845

www.L-com.com

AL-CAT5W Dimensions

Cable Conduit

TOP VIEW

6.313"

Ground Clamp

3.157"

4.157"

2.170"

5.840" (2X)

BOTTOM VIEW

.176" Dia. Mounting Holes (4x)

Mounting Screw (4x)
(#6 or M3.5 Pan Hd.)

.237"

.592"

1.973" (2X)

1.680"

AIP-00040 Rev. D – 09/06 Page 5/5

2.950"

SIDE VIEW

WWW.L-COM.COM E-MAIL: [e-mail] PHONE: [phone] FAX: [phone]

© L-com, Inc. All Rights Reserved. L-com Global Connectivity and the L-com logo are registered marks.

.980" (2X)

Copyright © This drawing is property of L-com Global Connectivity. All rights reserved.

L-COM, INC. 45 BEECHWOOD DRIVE NORTH ANDOVER, MA 01845

(Cover Removed)
