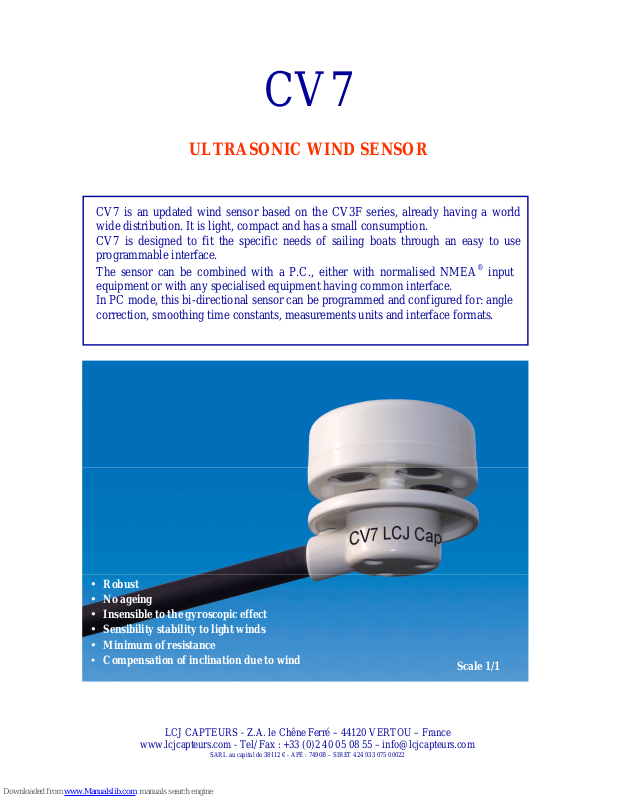

CV7
ULTRASONIC WIND SENSOR
CV7 is an updated wind sensor based on the CV3F series, already having a world
wide distribution. It is light, compact and has a small consumption.
CV7 is designed to fit the specific needs of sailing boats through an easy to use
programmable interface.
The sensor can be combined with a P.C., either with normalised NMEA® input
equipment or with any specialised equipment having common interface.
In PC mode, this bi-directional sensor can be programmed and configured for: angle
correction, smoothing time constants, measurements units and interface formats.
LCJ CAPTEURS - Z.A. le Chêne Ferré – 44120 VERTOU – France
www.lcjcapteurs.com - Tel/ Fax : +33 (0)2 40 05 08 55 – info@lcjcapteurs.com
SARL au capital de 38112 € - APE : 7490B – SIRET 424 933 075 00022
• Robustesse
• Absence d’usure
• Insensibilité à l’effet gyroscopique
• Stabilité de la sensibilité aux vents faibles
• Prise au vent minimisée
•
Effet de l’inclinaison sous le vent compensé
• Robust
• No ageing
• Insensible to the gyroscopic effect
• Sensibility stability to light winds
• Minimum of resistance
•
Compensation of inclination due to wind
Scale 1/1
61

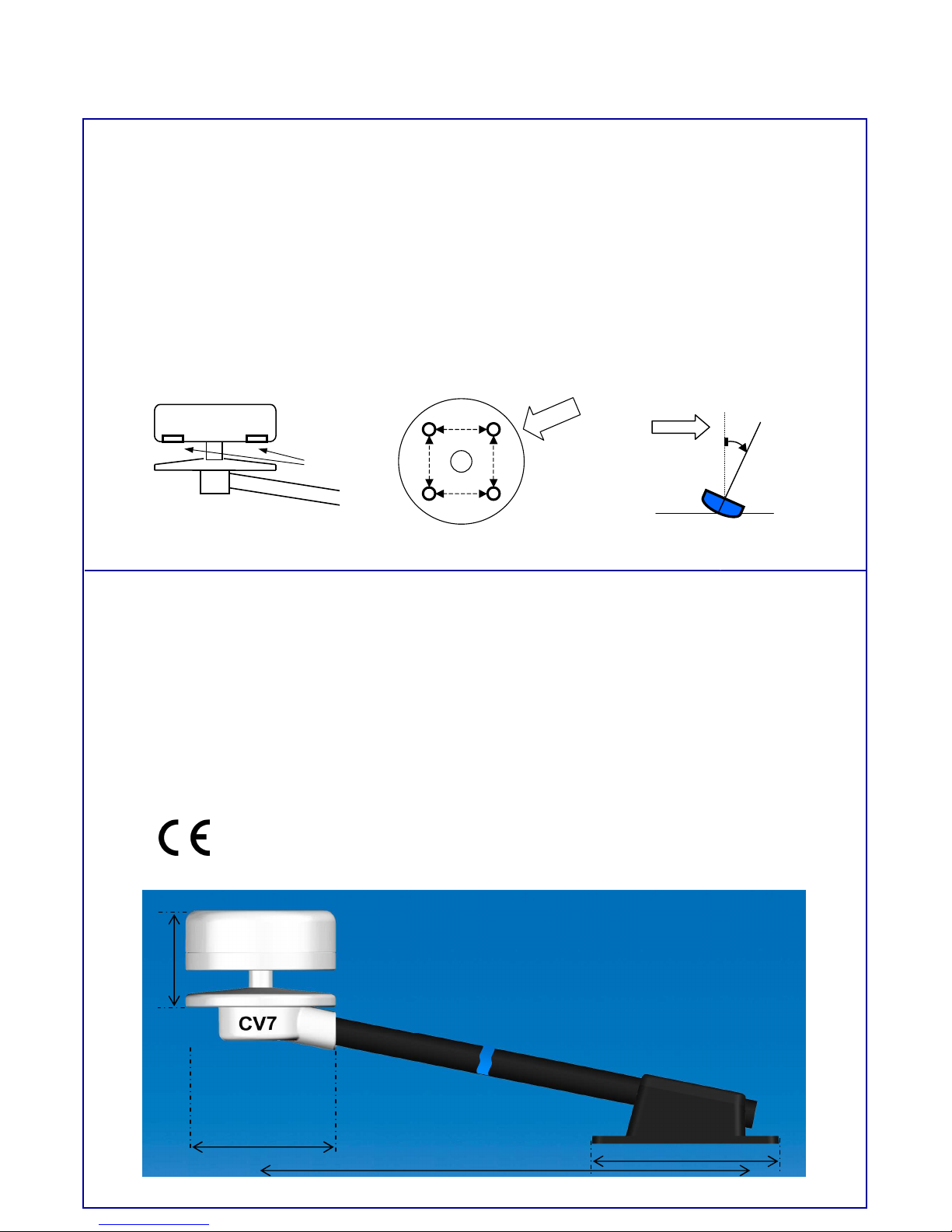

Principle of operation: how the equipment works
The sound, the ultrasonic sound is conveyed by the movement of the fluid in which it crosses. The
electroaccoustic transducers1 communicate between themselves two by two by ultrasonic signals2 to
determine, following the orthogonal axes, the wave transit time differences induced by the air flow3.
The measurements are combined in an integrated calculator in order to establish the wind module and its
direction in relation to a reference axis. The temperature measurements are used for calibration
corrections.
CV7 Transducers communicate between themselves delivering four independent measures while head
wind measured vectors are preferably used for calculations.
This method gives a sensibility of 0,25 knots, a dynamic of 80 knots and an excellent linearity.
Delivery contents :
CV7 sensor
Support and clamp
25 m cable, 4 conductors
User’s notice
CV7 Software configuration
Characteristics
Numerical output signals : NMEA0183®, MWV, XDR or
specialised program.
Wind sensor sensibility : 0,25 knots
Resolution : 0,1 knots
Wind sensor range : 0,25 to 80 knots
Directional sensibility : +/- 1 degree
Resolution : 1 degree
Power supply : 10 to 14 V DC 12 mA
Temperature range : -10 to 55 ° C
Weather proofing : IP67
Weight of the head : 150 g (including the support and clamp :
230g)
Optional accessories :
ST option : compatible with ST40, ST60
BG option : compatible with network, Hydra, Hercule
SIL options: compatible with NEXUS
BARO option : measurement of the atmospheric pressure
StatFixBaro : CV7 software program
Vertical fixation adaptor for CV7
Numerical transmission speeds 4 800 or 38 400 baud / sec
64
Programmable parameters :
Angle correction in degrees
Smoothing time constant of speed and direction: 1, 2, 4, 8, 16 s
Speed units in knots, m/sec, km/h
Temperature units Centigrade or Fahrenheit
NMEA® interface formats or specialised programs.
EN 55022 EN 55024
1
4
4
3
3
2
4
1
1
4
1
4
1
330mm 80
Summary
Installation
NMEA 0183 Interconnexions
NX2 NEXUS or FI30 FURUNO «WIND DATA Instrument»interconnexions
NX2 NEXUS or FI30 FURUNO «SERVER» Interconnexions
FI50 (Fi501) FURUNO Interconnexions
CV7 configuration
Piercing gauge
1 2 3 4 5
6 7 8 9
Installation
Determine a place free from obstacles to the wind, generally at the top of the mast.
Direct the stirrup of fixation so that CV7 is steered forward to the ship.
Fix the stirrup following the drillings defined by the joined size.
A better precision of the axis can be obtained by using the program of correction of angle.
Make the cable walk up to the place reserved for the billposter.
Avoid as possible the nearness of cables susceptible to make radio interferences of strong
levels.

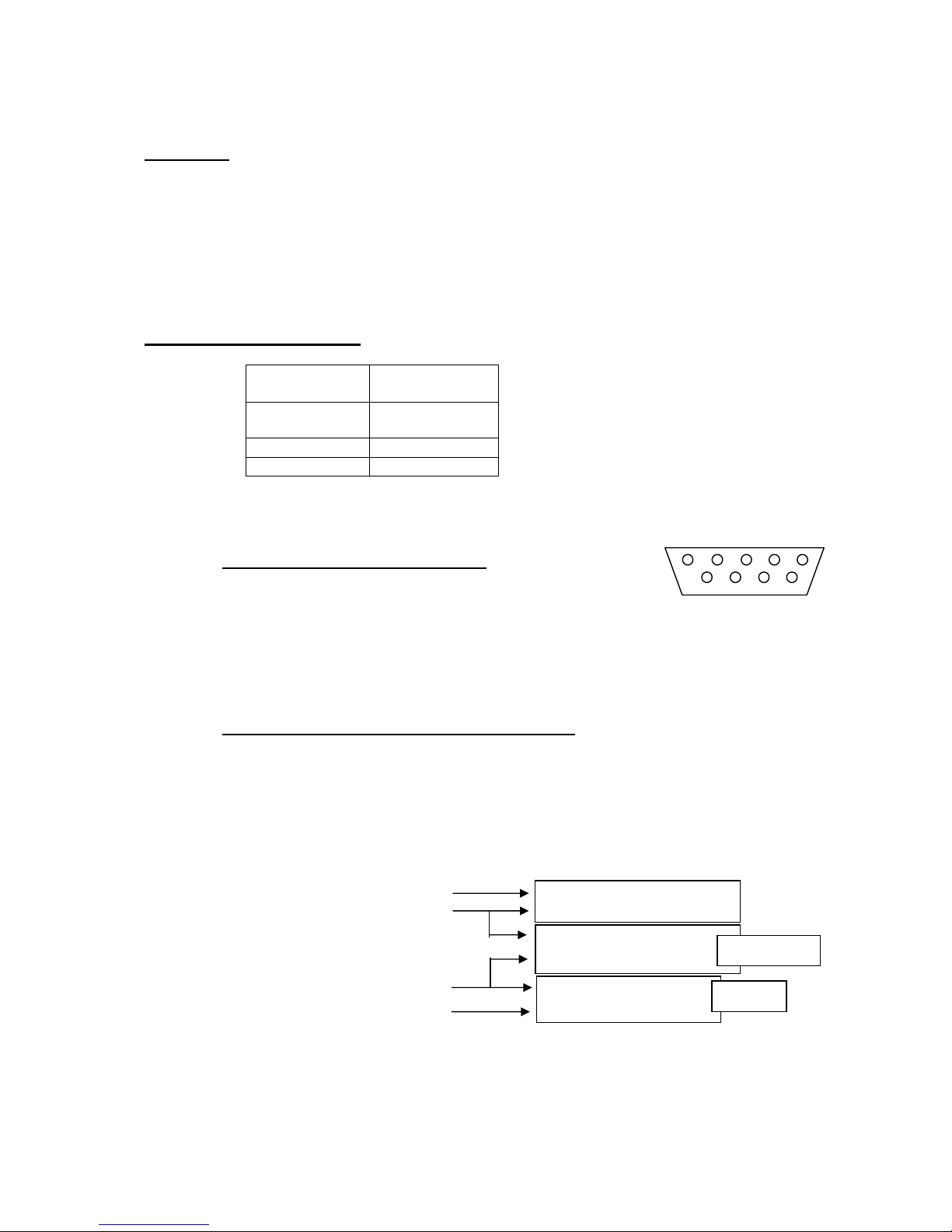

NMEA 0183 Interconnexions
Red cable + Power source
Blue cable - Power source
Yellow cable + NMEA
Green cable - NMEA
Link the 12 V power source (10 to 14 VDC). Blue cable - / red cable +
Connect the receiving display to the connector NMEA :
- For a RS232 computer COM(1) entry
Link + NMEA to COM1 Rx Terminal 2
Link 0V to 0V the COM1 Terminal 5
If it’s necessary, link together the COM1 Terminals 6 and 7.
- For a normalised floating RS422 NMEA 183 entry
Make sure that none of the entries of the receiver is not connected with the 0 volts, otherwise
to apply the typical connection RS232.
Connect + NMEA with (following the naming) +Ve or In + or A of the indicator NMEA
Connect - NMEA with (following the naming) -Ve or In - or B of the indicator NMEA
Example of message:
$IIMWV,226.0,R,000.00,N,A*0B
$WIXDR,C,036.5,C,,*52
$PLCJ,75FA,7DEA,03,,,,6D7C,837E
$PLCJEAC90,D35D,3F00,2161,FF
+ 9 to 14 VDC
0V
Entry/Input/Rx NMEA
+
Entry/Input/Rx NMEA +
Entry/Input/Rx NMEA -
RS422
RS232 PC
Red cable
Blue cable
Yellow cable
Green cable
SUBD 9 COM1 points
PC plug
Soldering joint side
NX2 or FI30 interconnexions «WIND DATA Instrument
»
NX2 or FI30 «SERVER» Interconnexions
+12VDC
0V
1
2
+
1 2 3 4
NEXUS
WIND LOG
+12VDC
0V
1
2
+ Power source 12 VDC (10 to 14VDC)
with fusible
- Power source 0 V
SCREEN 13
WHITE 14
YELLOW 15
GREEN 16
4
SERVER
CV7
Red
Blue
Green
Yellow
CV7
Red
Blue
Green
Yellow

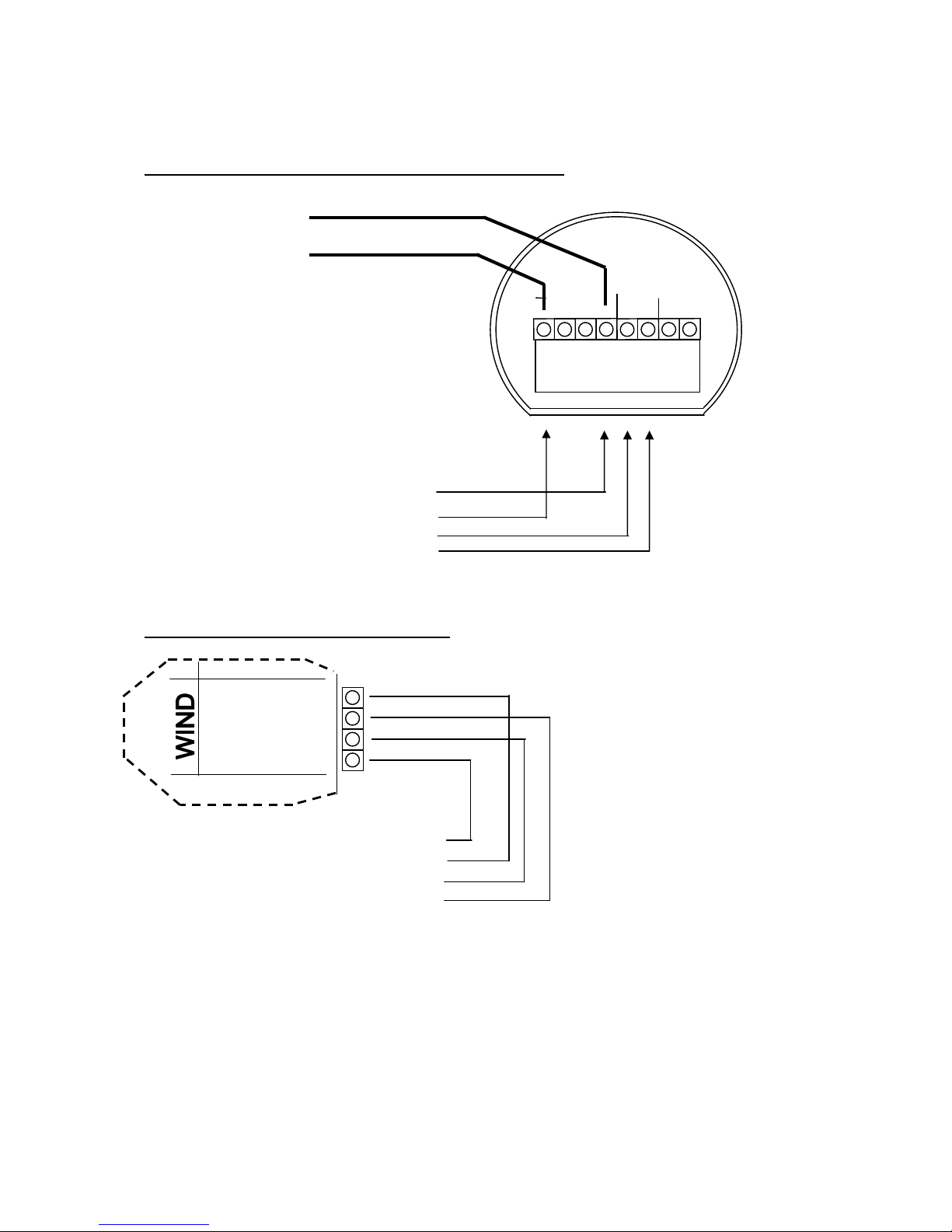

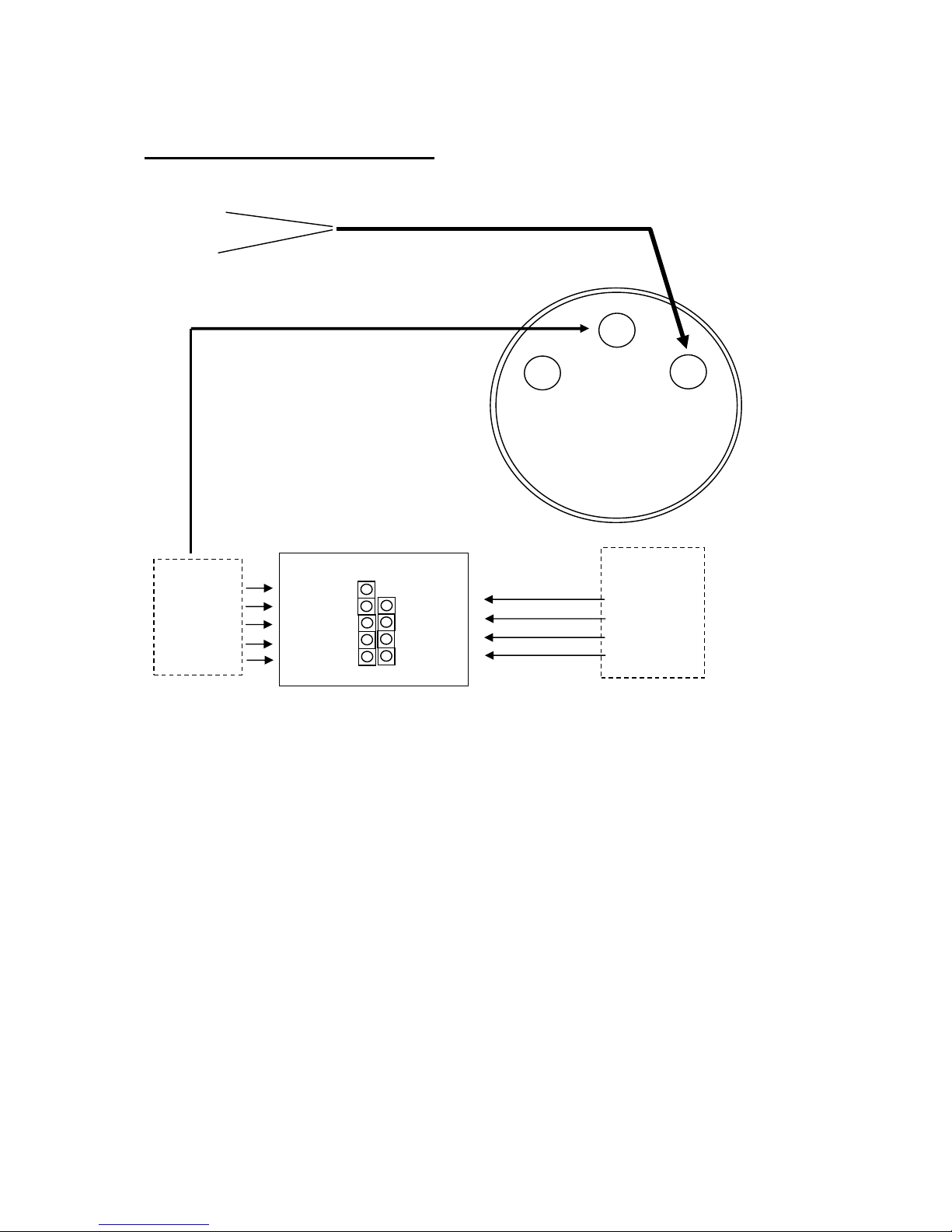

FI50 (Fi501) FURUNO Interconnexions
CV7
Green
Yellow
Red
Blue
+ Power source 12 VDC (10 to 14VDC)
Red
Black
- Power source 0 V
FI 501
WIND
NMEA 2000
NMEA 2000 12VDC
OptFI50 interface
CV7
Green
Yellow
Red
Blue
FI50
Dir1
Dir2
Speed
+V
0V
FI50 Cable
2 Brown
3 Red
4 Orange
1 Black
5 Yellow
1 2 3 4 5
6 7 8 9

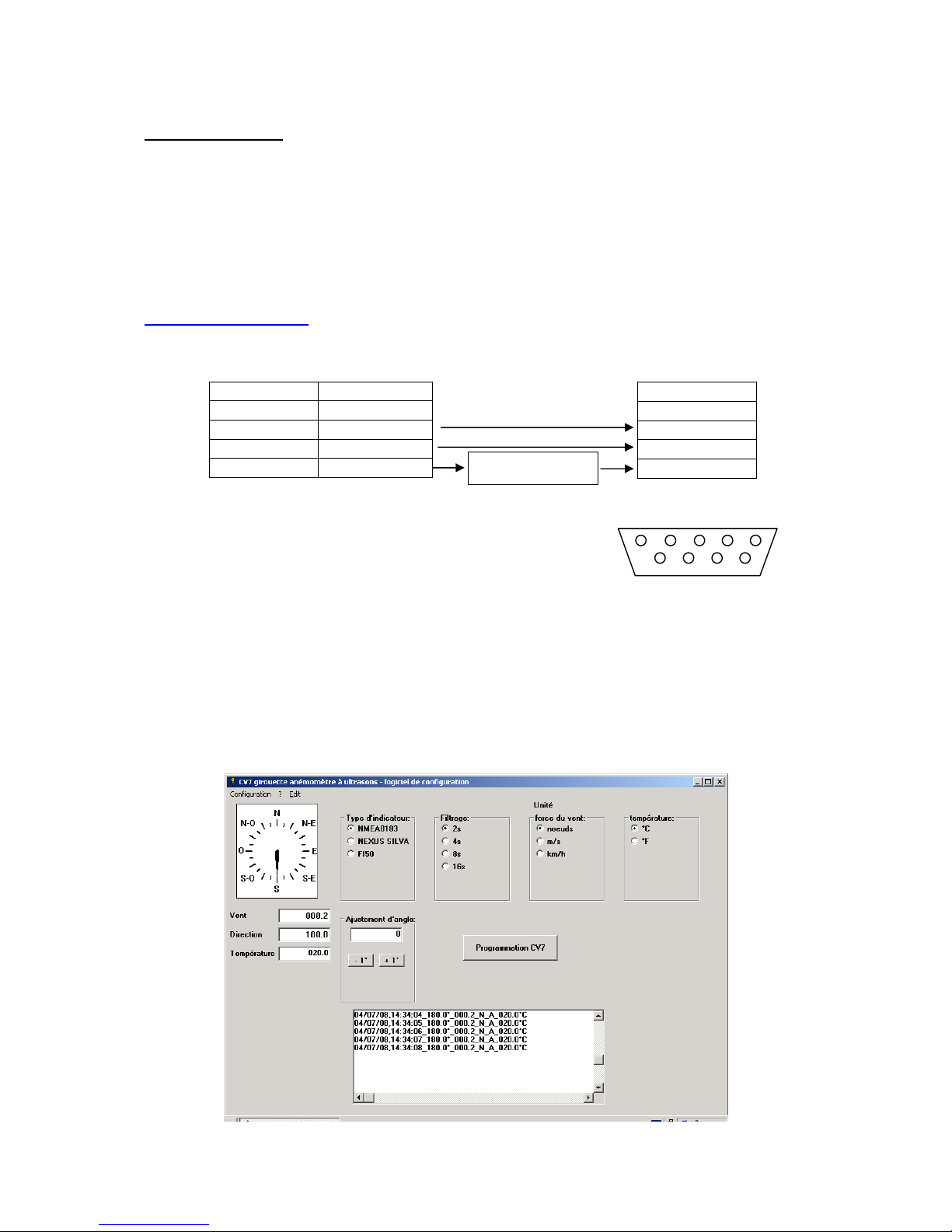

CV7 configuration
CV7 is delivered with the following configuration :
NMEA0183®
Filtering: 2 s
Forces of wind unity : Nds
Temperature unity: °C
Adjustment of the angle of the wind: 0°
To choose other parameters, use the downloadable software on this website:
www.lcjcapteurs.com. « Configuration_CV7 ».
Realise the following connexions:
Red cable + power
Blue cable - power
Yellow cable
Green cable
Decompress the file in the directory of your choice, copy the shortcut to the office.
Double click the shortcut, choose the used serial port.
Put under stress CV7
Make the configuration by clicking the corresponding buttons.
Click the button " Programmation CV7 "
Follow the instructions in the screen to put the CV7 out of tension and to restart.
SubD 9 points
5
2
3
3,3 Kohm

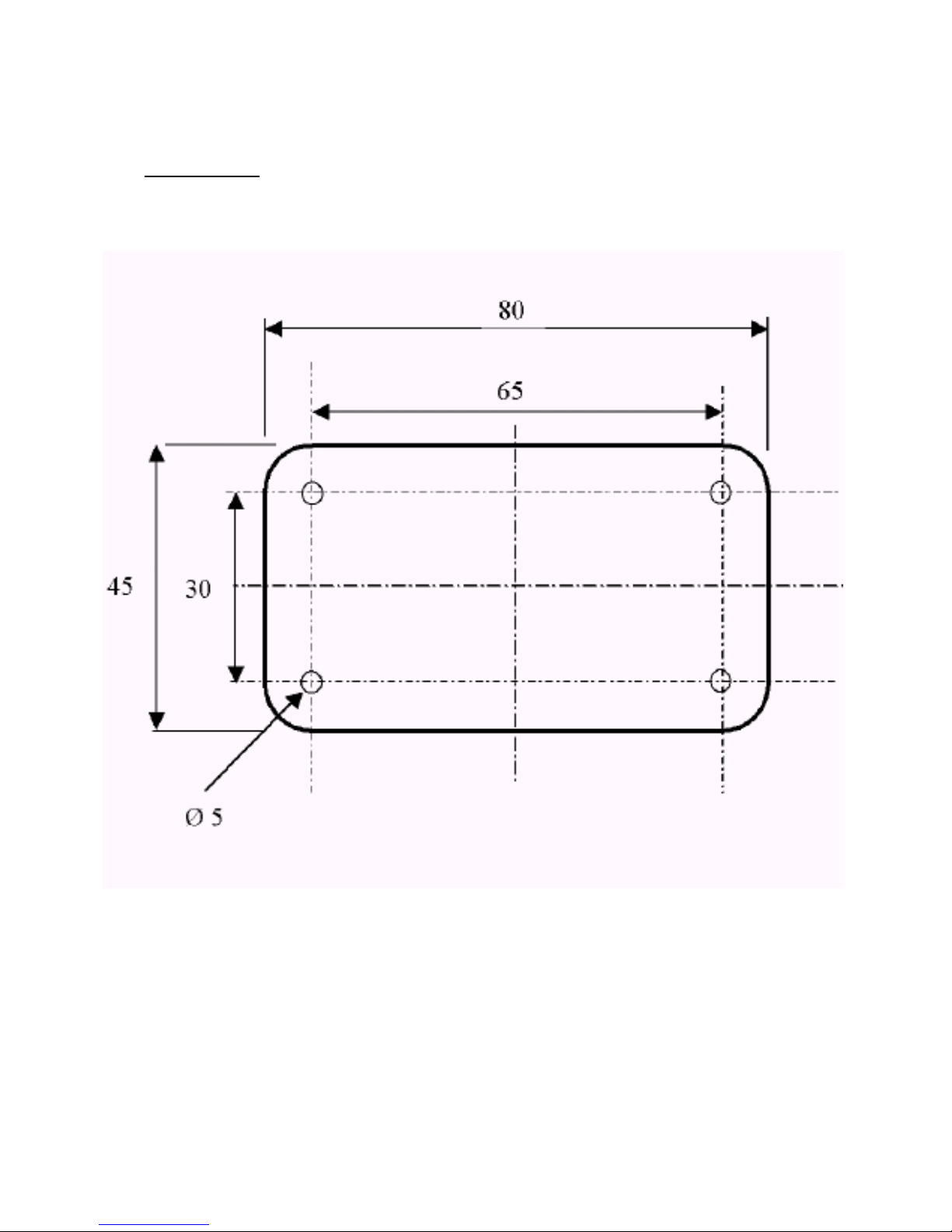

Piercing gauge
