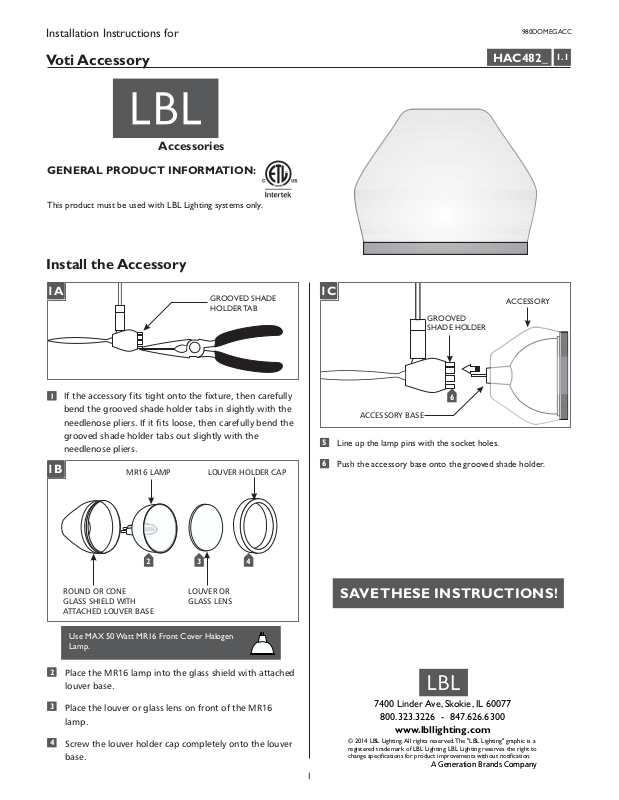

LBL Lighting Voti Accessory User Manual

Installation Instructions for

980DOMEGACC

Voti Accessory

Accessories

GP I :ENERAL RODUCT NFORMATION

This product must be used with LBL Lighting systems only.

Install the Accessory

1A1A 1A1C

GROOVED SHADE
HOLDER TAB

GROOVED
SHADE HOLDER

HAC482_

ACCESSORY

1.1

1

1

If the accessory fits tight onto the fixture, then carefully
bend the grooved shade holder tabs in slightly with the
needlenose pliers. If it fits loose, then carefully bend the
grooved shade holder tabs out slightly with the
needlenose pliers.

1A1B

ROUND OR CONE
GLASS SHIELD WITH
ATTACHED LOUVER BASE

Use MAX 50 Watt MR16 Front Cover Halogen
Lamp.

MR16 LAMP

LOUVER HOLDER CAP

32

LOUVER OR
GLASS LENS

4

6

ACCESSORY BASE

5

Line up the lamp pins with the socket holes.

6

Push the accessory base onto the grooved shade holder.

SAVE THESE INSTRUCTIONS!

2

Place the MR16 lamp into the glass shield with attached
louver base.

3

Place the louver or glass lens on front of the MR16
lamp.

4

Screw the louver holder cap completely onto the louver
base.
