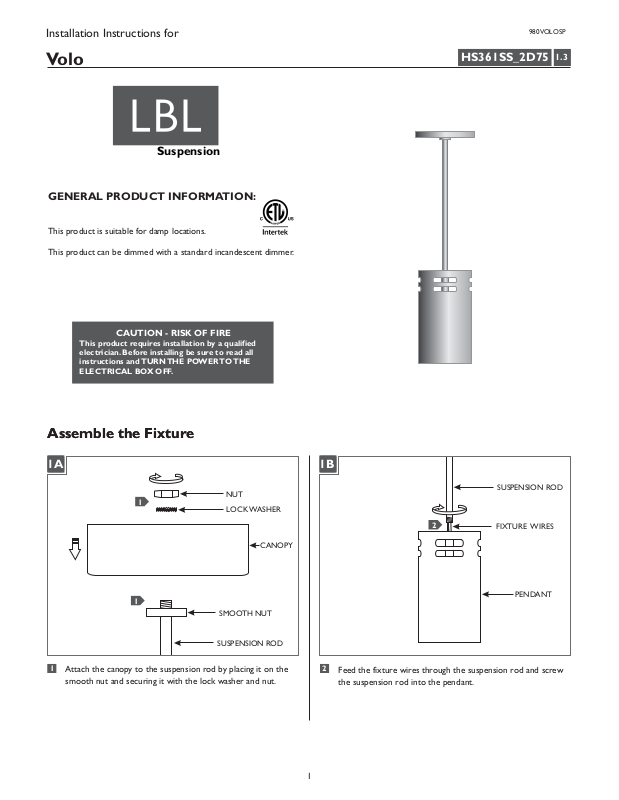

Installation Instructions for
980VOLOSP
Volo
Suspension
GP I :ENERAL RODUCT NFORMATION
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURNTHE POWERTOTHE
ELECTRICAL BOX OFF.
HS361SS_2D75
1.3
Assemble the Fixture
Assemble the Fixture
1A 1B
1
1
1 2
Attach the canopy to the suspension rod by placing it on the
smooth nut and securing it with the lock washer and nut.
NUT
LOCK WASHER
CANOPY
SMOOTH NUT
SUSPENSION ROD
SUSPENSION ROD
2
1
Feed the fixture wires through the suspension rod and screw
the suspension rod into the pendant.
FIXTURE WIRES
PENDANT
1
Mount the Fixture
Install the Lamp
Note : If mounting the fixture onto an octagonal
electrical box, first mount the provided universal
mounting plate before proceeding to the next step.
2A
3
1
Connect the fixture to a suitable ground in accordance with
local electrical codes.
2
Connect the white fixture wire to the neutral power line wire
with a wire nut.
1
2
3A
1
1
CAUTION:To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
Use Volt, WattType A19MAX 75120
Medium Base Lamp.
SOCKET
LAMP
3
Connect the black fixture wire to the hot power line wire with
a wire nut.
2B
4
#8-32 SCREW
5
4
Place all wires properly into the electrical box.
5
Mount the canopy to the electrical box/mounting plate
with two #8-32 screws provided.
5
1
Screw the lamp completely into the socket.
SAVETHESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2013 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
A Generation Brands Company
