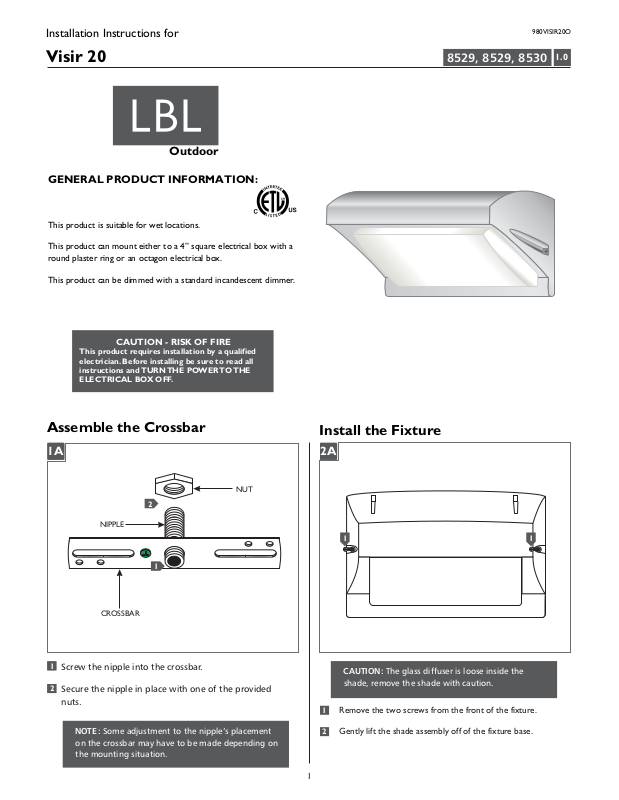

LBL Lighting Visir 20 User Manual
Installation Instructions for
980VISIR20O
Visir 20
Outdoor
GENERAL PRODUCT INFORMATION:
This product is suitable for wet locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This product can be dimmed with a standard incandescent dimmer.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURNTHE POWER TO THE
ELECTRICAL BOX OFF.
8529, 8529, 8530
1.0
Assemble the Crossbar
1A
2
NIPPLE
1
CROSSBAR
1
1
Screw the nipple into the crossbar.
2
2
Secure the nipple in place with one of the provided
nuts.
NUT
Install the Fixture
2A
1 1
CAUTION: The glass diffuser is loose inside the
shade, remove the shade with caution.
1
Remove the two screws from the front of the fixture.
NOTE: Some adjustment to the nipple’s placement
on the crossbar may have to be made depending on
the mounting situation.
2
Gently lift the shade assembly off of the fixture base.
1
Install the Fixture
2B
FIXTURE BASE
3
Feed the fixture power lines first through the provided nut,
then through the provided lock washer.
NUT
WASHER
2C
2D
#8-32 SCREW
6 6
7
3
26
Secure the crossbar assembly to the electrical box using two
#8-32 screws provided.
27
Pull the fixture power lines out of the electrical box.
4
FIXTURE BASE
5
CROSSBAR
ASSEMBLY
4
Feed the fixture power lines through the hole in the fixture
base.
5
Then feed the fixtures power lines through the nipple on the
crossbar assembly .
2E
10
8
9
3
8
Ground the crossbar in accordance with local electrical
codes.
9
Connect the white fixture wire to the neutral power line
wire with a wire nut.
10
Connect the black fixture wire to the hot power line
wire with a wire nut.
2
