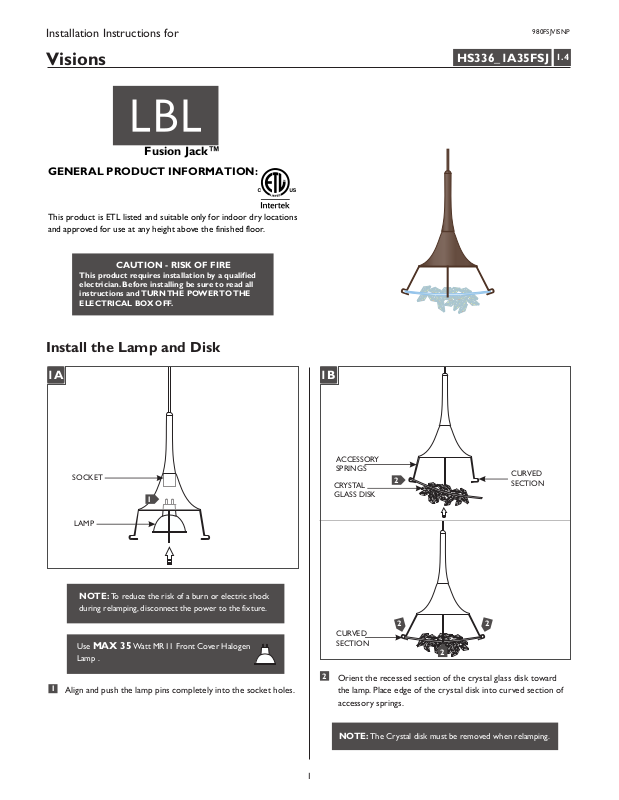

Installation Instructions for
980FSJVISNP
Visions
Fusion Jack™
GENERAL PRODUCT INFORMATION:
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.
Install the Lamp and Disk
HS336_1A35FSJ
1.4
1A 1B
SOCKET
1
LAMP
NOTE: To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
Use MAX 35 Watt MR11 Front Cover Halogen
Lamp .
ACCESSORY
SPRINGS
CRYSTAL
GLASS DISK
CURVED
SECTION
2
2
2
CURVED
SECTION
2
1
Align and push the lamp pins completely into the socket holes.
22
Orient the recessed section of the crystal glass disk toward
the lamp. Place edge of the crystal disk into curved section of
accessory springs.
NOTE: The Crystal disk must be removed when relamping.
1
Adjust the Fixture Height
2A
ALLEN WRENCH
SET SCREW
CONNECTOR
1
Back out (do not remove) the set screw on tip of the
connector with the provided Allen wrench.
2B
ALLEN WRENCH
SET SCREW
2
2E
6
1
CONICAL CONNECTOR
6
Feed and push the coaxial cable into the conical connector. The
OUTER WRAPPED
WIRE STOPS HERE
coaxial cable will come to a stop point after being inserted
3/4" into the conical connector.
2F
7
WRINKLE ON OUTER
WRAPPED WIRE
INNER WIRE
STOPS HERE
2
Back out (do not remove) the set screw on the conical
connector with the provided Allen wrench.
2C
4
3
Cut the coaxial cable to the desired length.
4
Gently twist the end of the coaxial cable between thumb and
forefinger.
2D
SURFACE
7
Keep pushing the coaxial cable into the connector while
rotating the connector to ease feeding the inner wire into the
tip of the connector. The outer wrapped wire will start
wrinkling while being inserted another 1/2" into the connector.
2G
ALLEN WRENCH
8
Look into the sight hole on the top of the connector to make
INNER WIRE
SIGHT HOLE
9
sure that the inner wire is contacting the end of the connector.
9
Hold the coaxial cable in place and tighten the set screw on tip
of the connector with the provided Allen wrench. Make sure
this set screw connection is tight.
8
PLATE
5
Tap the conical connector on a hard surface with the set screw
facing down, so the plate inside drops into place.
2
2H
10
10
Firmly tighten the set screw on the conical connector.
2I
11
11
Pull the coaxial cable toward the fixture to smooth the
wrinkles.
33
IMPORTANT SAFETY INSTRUCTIONS
Halogen Lamp General Information
To reduce the risk of fire, electrical shock, exposure to
excessive UV radiation, or injury to person:
– Use this fixture indoors only.
– Do not look directly at the lighted lamp.
– Do not remain in light if skin feels warm.
– Risk of fire: Use only the type of lamp and maximum wattage
indicated in this instruction manual.
– Never cover the halogen lamp with anything other than a LBL
Lighting lamp shield and never place flammable material close to
your fixture.
– Never turn the fixture on and off by connecting and
disconnecting the halogen lamp.
– Do not touch the fixture shades or lamp shield while the fixture
is on. These surfaces may be HOT.
– A new halogen lamp may smoke slightly when it is used for the
first time. This is perfectly normal; the protective coating is simply
being vaporized.
Two Tips For Prolonging Halogen
Lamp Life
– First avoid touching the lamp with bare hands during installation.
Any contaminant, even the oil from your hands can deteriorate
the lamp. Rubbing alcohol can be used to remove any
contaminant.
– Second, do not run the lamps at full power when you do not need
to. However, if dimming the fixture for an extended period of
time, occasionally bring the light up to full brightness for a few
minutes to complete the halogen cycle.
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2013 LBL Lighting. All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
A Generation Brands Company
