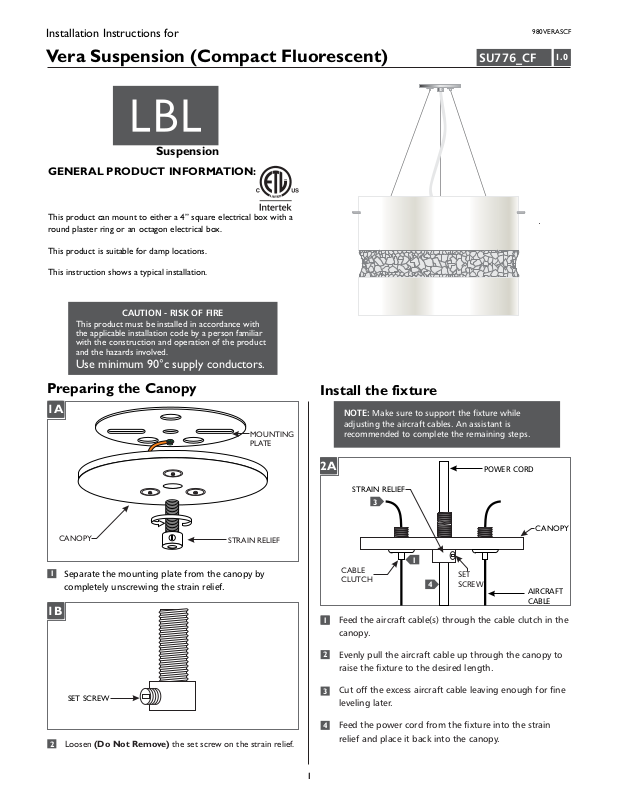

Installation Instructions for
980VERASCF
Vera Suspension (Compact Fluorescent)
Suspension
GP I :ENERAL RODUCT NFORMATION
This product can mount to either a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
SU776_CF
1.0
Preparing the Canopy
1A
CANOPY
1
Separate the mounting plate from the canopy by
completely unscrewing the strain relief.
1B
MOUNTING
PLATE
STRAIN RELIEF
Install the fixture
NOTE: Make sure to support the fixture while
adjusting the aircraft cables. An assistant is
recommended to complete the remaining steps.
2A
STRAIN RELIEF
3
CABLE
CLUTCH
21
Feed the aircraft cable(s) through the cable clutch in the
canopy.
2
2
Evenly pull the aircraft cable up through the canopy to
raise the fixture to the desired length.
1
4
POWER CORD
SET
SCREW
CANOPY
AIRCRAFT
CABLE
SET SCREW
2
Loosen the set screw on the strain relief.(Do Not Remove)
Cut off the excess aircraft cable leaving enough for fine
2
3
leveling later.
4
2
Feed the power cord from the fixture into the strain
relief and place it back into the canopy.
1
1
Page 2
2B
5
CORD
NOTE: The power cord does not support the fixture.
For a casual “lazy cord” look, cut the power cord
several inches longer that the drop height of the
fixture.
25
Once the desired look is determined, tighten the set
screw on the strain relief.
26
Mark the cord underneath the strain relief.
Install the Canopy
3B
CANOPY
4
Feed the power cord through the middle hole of the
mounting plate and temporarily place it plate in the
canopy.
3C
5
MOUNTING
PLATE
3A
4"
71
Leave 6" of the cord behind the canopy for power
connections. Cut the excess cord.
72
From the end of the cord, strip the insulation 4" using a
sharp knife. .Make sure not to nick the inner wires
73
Strip the end of the wires.
6
25
10
Connect the mounting plate and the fixture ground wire
7
to a suitable ground in accordance with local electrical
codes.
26
Connect the black fixture wire to the hot power line wire
with a wire nut.
Connect the white fixture wire to the neutral power line
7
2
2
Page 3
Install the Lamps, Shade, and Diffuser
3D
CROSSBAR
2 2
2
Place all wires and wire nut connections properly inside
the electrical box.
2
Secure the mounting plate to the electrical box with the
two provided #8-32 screws.
3E
4A
#8-32
SCREW
SOCKET
LAMP
CAUTION: To reduce the risk of a burn or electric
shock during re-lamping, disconnect the power to
the fixture.
SET SCREW
STRAIN RELIEF
CORD
NOTE:It is recommended that one person hold the
fixture while the electrician finishes the installation.
11
Loosen the set screw on the primary strain relief.
Align the canopy center hole with the mounting plate
12
center hole.
13
Slide the canopy up against the ceiling and secure it in
place by screwing in and tightening the primary strain
relief into the crossbar. Do not turn the cord.
Push the cord into the canopy and line up the marked
14
point on the cord with bottom of the primary strain
relief.
Use GX24Q-3 BaseMAX 32 Watt
Triple Tube Compact Fluorescent Lamp.
21
Push the lamp base into the socket.
NOTE: To re-lamp, reach in the fixture from the
opening above.
15
Tighten the plastic set screw to secure the cord.
3
Page 4
4B
MOUNTING
ROD
SHADE
2
Remove the three mounting rods.
3
Align the shade with the fixture assembly and reinstall
the three mounting rods by screwing them in
completely.
Adjust the Suspension Cables
(Optional)
5A
1
CABLE
CLUTCH
1
If necessary, adjust the aircraft cables until the fixture is
level; feed the cable into the cable clutch to raise the
fixture and push in on the cable clutch nipple to release
the cable and lower the fixture.
CABLE
CLUTCH
4C
METAL
GASKET
PLASTIC
GASKET
DIFFUSER
4
Unscrew the finial and remove one of the plastic gaskets
while holding the other plastic and metal gasket in
place.
PLASTIC GASKET
FINIAL
SAVETHESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
A Generation Brands Company
5
Install the diffuser and then the plastic gasket and
secure them in place by reinstalling the diffuser.
