LBL Lighting Vera S User Manual

Installation Instructions for
980VERAS
Vera Suspension
Suspension
GP I :ENERAL RODUCT NFORMATION
This product can mount to either a 4” square electrical box with a round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
Use minimum 90°c supply conductors.
SU776_2D
1.0

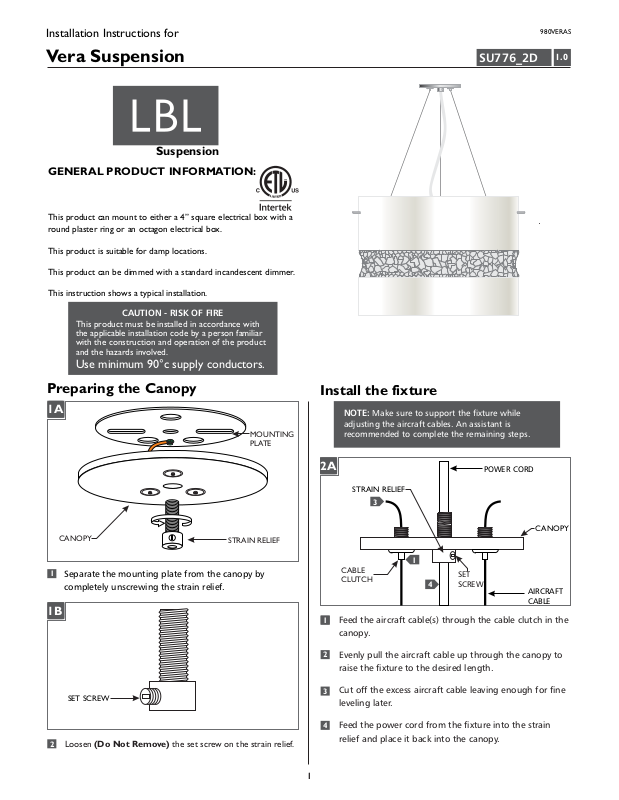

Preparing the Canopy
1A
CANOPY
1
Separate the mounting plate from the canopy by completely unscrewing the strain relief.
1B
MOUNTING PLATE
STRAIN RELIEF
Install the fixture
NOTE: Make sure to support the fixture while
adjusting the aircraft cables. An assistant is recommended to complete the remaining steps.
2A
STRAIN RELIEF
3
CABLE CLUTCH
21
Feed the aircraft cable(s) through the cable clutch in the canopy.
2
2
Evenly pull the aircraft cable up through the canopy to raise the fixture to the desired length.
1
4
POWER CORD
SET SCREW
CANOPY
AIRCRAFT CABLE
SET SCREW
2
Loosen the set screw on the strain relief.(Do Not Remove)
Cut off the excess aircraft cable leaving enough for fine
2
3
leveling later.
4
2
Feed the power cord from the fixture into the strain relief and place it back into the canopy.
1
1
2B
5
CORD
NOTE: The power cord does not support the fixture.
For a casual “lazy cord” look, cut the power cord several inches longer that the drop height of the fixture.
25
Once the desired look is determined, tighten the set screw on the strain relief.
26
Mark the cord underneath the strain relief.
Install the Canopy
3B
CANOPY
4
Feed the power cord through the middle hole of the mounting plate and temporarily place it plate in the canopy.
3C
5
MOUNTING PLATE
3A
4"
71
Leave 6" of the cord behind the canopy for power connections. Cut the excess cord.
72
From the end of the cord, strip the insulation 4" using a sharp knife. .Make sure not to nick the inner wires
73
Strip the end of the wires.
6
25
10
Connect the mounting plate and the fixture ground wire
7
to a suitable ground in accordance with local electrical codes.
26
Connect the black fixture wire to the hot power line wire with a wire nut.
Connect the white fixture wire to the neutral power line
7
2
2
