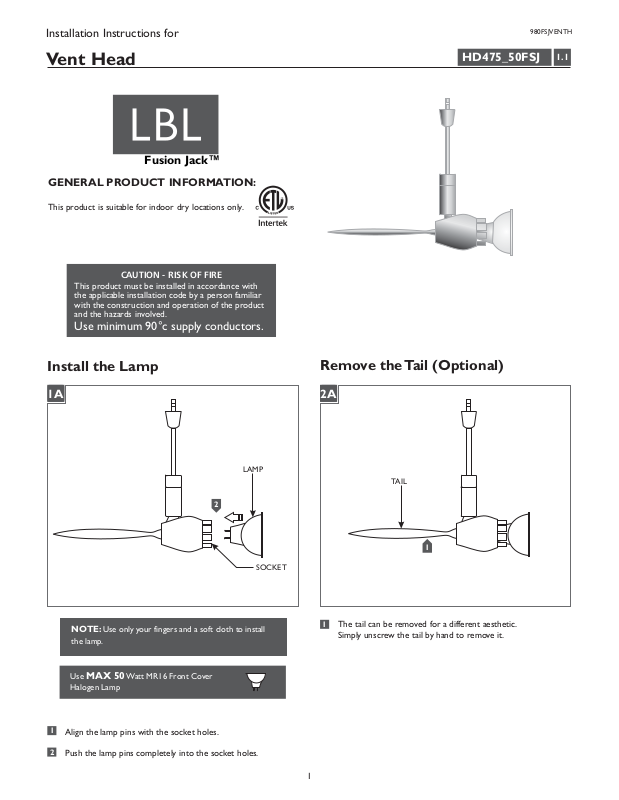

LBL Lighting Vent H User Manual

Installation Instructions for

980FSJVENTH

Vent Head

Fusion Jack™

GP I :ENERAL RODUCT NFORMATION

This product is suitable for indoor dry locations only.

CAUTION - RISK OF FIRE

This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.

Use minimum 90°c supply conductors.

HD475_50FSJ

1.1

Install the Lamp

1A

NOTE:Use only your fingers and a soft cloth to install

the lamp.

Remove the Tail (Optional)

2A

LAMP

TAIL

2

1

SOCKET

1

The tail can be removed for a different aesthetic.
Simply unscrew the tail by hand to remove it.

Use Watt MR16 Front CoverMAX 50
Halogen Lamp

1

Align the lamp pins with the socket holes.

2

Push the lamp pins completely into the socket holes.

1

SAVETHESE INSTRUCTIONS!

7400 Linder Ave, Skokie, IL 60077

800.323.3226 - 847.626.6300

www.lbllighting.com

© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
