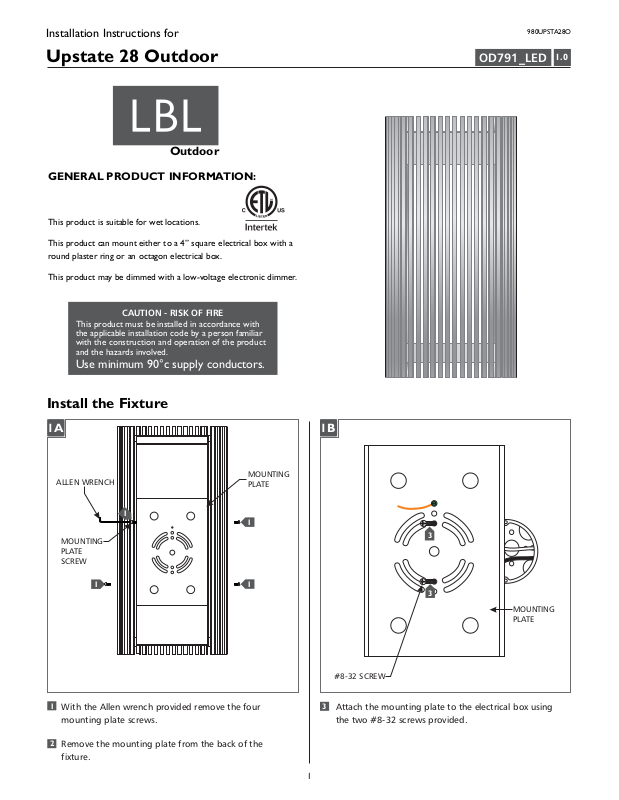

Page 1
Installation Instructions for
980UPSTA28O
Upstate 28 Outdoor
Outdoor
GP I :ENERAL RODUCT NFORMATION
This product is suitable for wet locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This product may be dimmed with a low-voltage electronic dimmer.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
OD791_LED
1.0
Install the Fixture
1A 1B
ALLEN WRENCH
1
MOUNTING
PLATE
SCREW
1
MOUNTING
PLATE
1
1
3
3
MOUNTING
PLATE
#8-32 SCREW
1
With the Allen wrench provided remove the four
mounting plate screws.
2
Remove the mounting plate from the back of the
fixture.
3
Attach the mounting plate to the electrical box using
the two #8-32 screws provided.
1
Page 2
1C
1C
ANCHOR
SCREW
WASHER
3
4
Verify that the mounting plate is level before continuing.
5
Line up an anchor tip with the center of a mounting
plate hole, and push the anchor into the wall up to the
threads.
6
6
Screw the anchors in the rest of the way with a Phillipshead screwdriver.
Repeat steps 5-6 for the other anchor.
67
WASHER
SCREW
68
Slide a #8 screw through a washer and screw it into an
3
anchor.
69
Repeat for the other anchor to secure the mounting
plate to the wall.
2
Page 3
1E
1E
ALLEN WRENCH
11
3
10
Connect the mounting plate ground wire to a suitable
10
12
ground in accordance with local electrical codes.
11
Connect the white driver wire to the neutral power line
wire with a wire nut.
12
Connect the black driver wire to the hot power line wire
with a wire nut.
14
14
13
Properly place all the wires and wire nut connections in
14
14
the electrical box.
14
Replace the fixture onto the mounting and secure it in
place by reinstalling the four set screws. (reversal of
figure 1A).
1G
15
For wet locations, caulk around the base with
waterproof construction sealant.
3
Page 4
SAVETHESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
A Generation Brands Company
4
