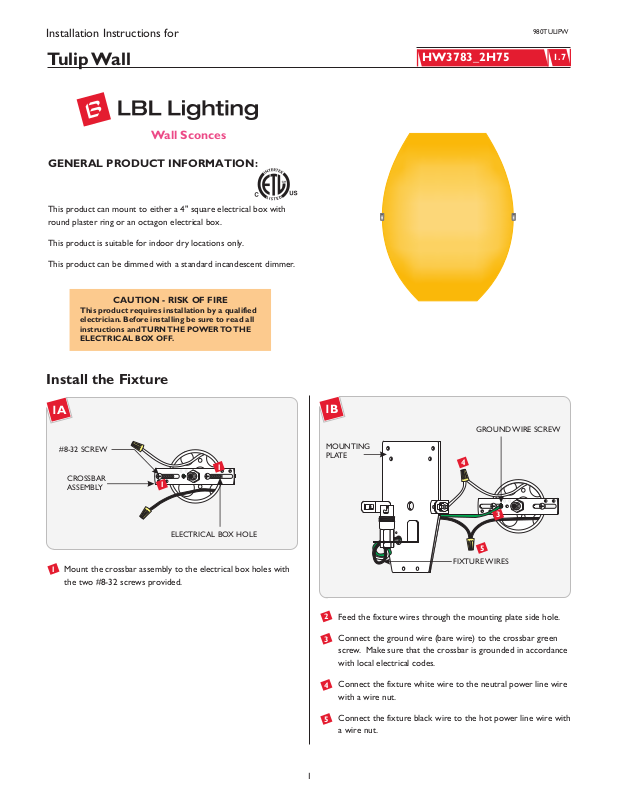

LBL Lighting Tulip W User Manual
Installation Instructions for
980TULIPW
Tulip Wall
Wall Sconces
GENERAL PRODUCT INFORMATION:
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for indoor dry locations only.
This product can be dimmed with a standard incandescent dimmer.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.
HW3783_2H75
1.7
Install the Fixture
1A
#8-32 SCREW
1
CROSSBAR
ASSEMBLY
1
Mount the crossbar assembly to the electrical box holes with
the two #8-32 screws provided.
1
ELECTRICAL BOX HOLE
1B
GROUND WIRE SCREW
MOUNTING
PLATE
2
Feed the fixture wires through the mounting plate side hole.
Connect the ground wire (bare wire) to the crossbar green
3
screw. Make sure that the crossbar is grounded in accordance
with local electrical codes.
4
3
5
FIXTURE WIRES
Connect the fixture white wire to the neutral power line wire
4
with a wire nut.
Connect the fixture black wire to the hot power line wire with
5
a wire nut.
1
1C
1E
MOUNTING PLATE
7
Place all wires and wire nut connections properly inside the
6
6
CAP
CROSSBAR
EXPOSED THREADED
NIPPLE
electrical box.
7
Slide the mounting plate center hole onto the exposed
threaded nipple. Secure the mounting plate in place by
tightening the cap to threaded nipple.
1D
LAMP SHIELD
9
SOCKET HOUSING
Place the lamp shield onto the socket housing. Screw
9
(Do Not Tighten) the lamp shield onto the socket housing
just enough (a couple of threads) to secure it in place.
1F
GLASS
SHADE
DC BAYONET
LAMP
8
SOCKET "L" SLOT
NOTE: Use only your fingers and a soft cloth to install
the lamp.
Use MAX 120 Volt, 75 Watt Type DC
Bayonet, BA15d Base Lamp.
8
Align the pins on the DC Bayonet lamp with the socket "L"
slots. Push the lamp completely into the socket and rotate it
clockwise to lock it in place.
PIN
THUMB
SCREW
MOUNTING
BRACKET
Place the glass shade onto the mounting plate. Align the glass
10
10
10
MOUNTING
PLATE
shade holes with the mounting plate holes. Tighten the thumb
screws to secure the glass shade in place.
NOTE: Do not over tighten the thumb screws which may
cause the glass shade to break.
2
