LBL Lighting Top WCF User Manual

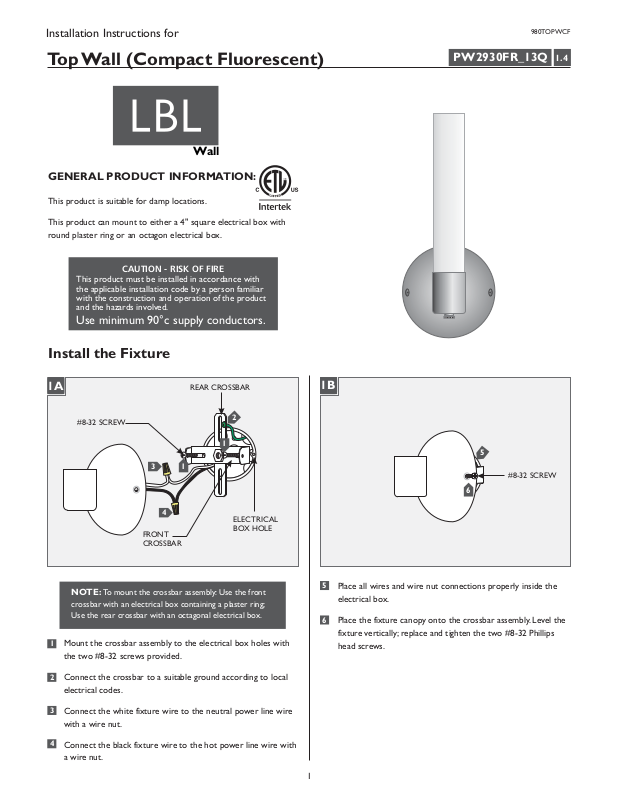

Installation Instructions for
980TOPWCF
Top Wall (Compact Fluorescent)
Wall
GP I :ENERAL RODUCT NFORMATION
This product is suitable for damp locations.
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
PW2930FR_13Q
1.4
Install the Fixture
1
4
REAR CROSSBAR
2
1
ELECTRICAL
BOX HOLE
1A
#8-32 SCREW
3
FRONT
CROSSBAR
NOTE:To mount the crossbar assembly:Use the front
crossbar with an electrical box containing a plaster ring;
Use the rear crossbar with an octagonal electrical box.
Mount the crossbar assembly to the electrical box holes with
1
the two #8-32 screws provided.
1B
5
#8-32 SCREW
6
5
Place all wires and wire nut connections properly inside the
electrical box.
6
Place the fixture canopy onto the crossbar assembly. Level the
fixture vertically; replace and tighten the two #8-32 Phillips
head screws.
2
Connect the crossbar to a suitable ground according to local
electrical codes.
3
Connect the white fixture wire to the neutral power line wire
with a wire nut.
4
Connect the black fixture wire to the hot power line wire with
a wire nut.
1
Install the Lamp & Shade
2A
LAMP
1
1
SOCKET
Use WattType Twin TubeMAX 13
2GX7 Base Compact Fluorescent Lamp.
1
Push the lamp pins completely into the socket holes.
2B
GLASS SHADE
SOCKET
HOUSING
2
Place the glass shade into the socket housing.
2
SAVETHESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
2
A Generation Brands Company
