LBL Lighting Top W User Manual

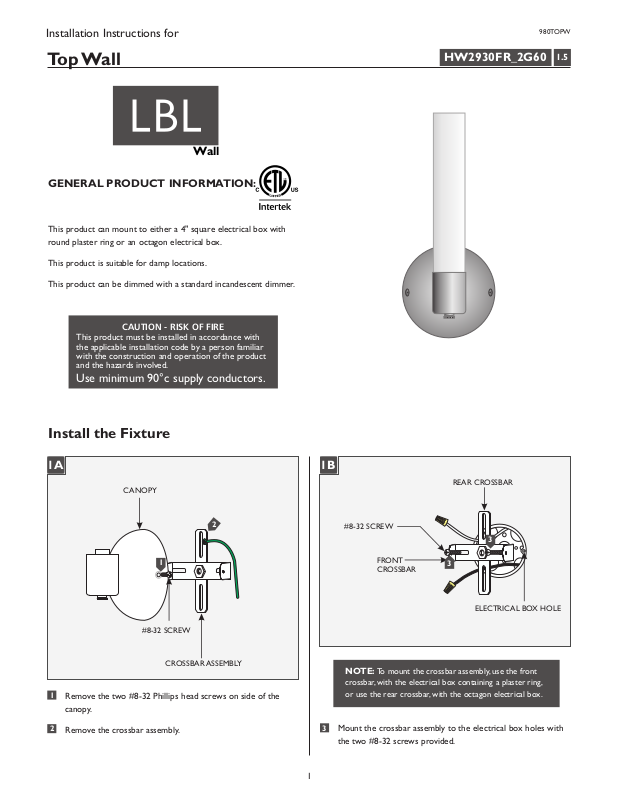

Installation Instructions for
980TOPW
Top Wall
Wall
GENERAL PRODUCT INFORMATION:
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
HW2930FR_2G60
1.5
Install the Fixture
1A
CANOPY
2
1
#8-32 SCREW
CROSSBAR ASSEMBLY
1
Remove the two #8-32 Phillips head screws on side of the
canopy.
2
Remove the crossbar assembly.
1B
REAR CROSSBAR
#8-32 SCREW
3
FRONT
CROSSBAR
NOTE: To mount the crossbar assembly, use the front
crossbar, with the electrical box containing a plaster ring,
or use the rear crossbar, with the octagon electrical box.
3
Mount the crossbar assembly to the electrical box holes with
the two #8-32 screws provided.
3
ELECTRICAL BOX HOLE
1
Install the Lamp & Shade
1C
5
4
6
4
Connect the crossbar assembly to a suitable ground in
accordance with local electrical codes.
5
Connect the fixture white wire to the neutral power line wire
with a wire nut.
Connect the fixture black wire to the hot power line wire with
6
a wire nut.
1D
2A
LAMP
1
NOTE: Use only your fingers and a soft cloth to install
the lamp.
Use MAX 220 Volt, 40 Watt Type T4,
G9 Base, Bi-Pin Halogen Lamp.
1
Push the lamp pins completely into the socket holes.
2B
SOCKET
7
#8-32 SCREW
8
7
Place all wires and wire nut connections properly inside the
electrical box.
8
Place the fixture canopy onto the crossbar assembly. Level the
fixture vertically; replace and tighten the two #8-32 Phillips
head screws.
GLASS SHADE
SOCKET
HOUSING
2
Place the glass shade into the socket housing.
2
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting. All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
2
A Generation Brands Company
