LBL Lighting Swag Hook User Manual

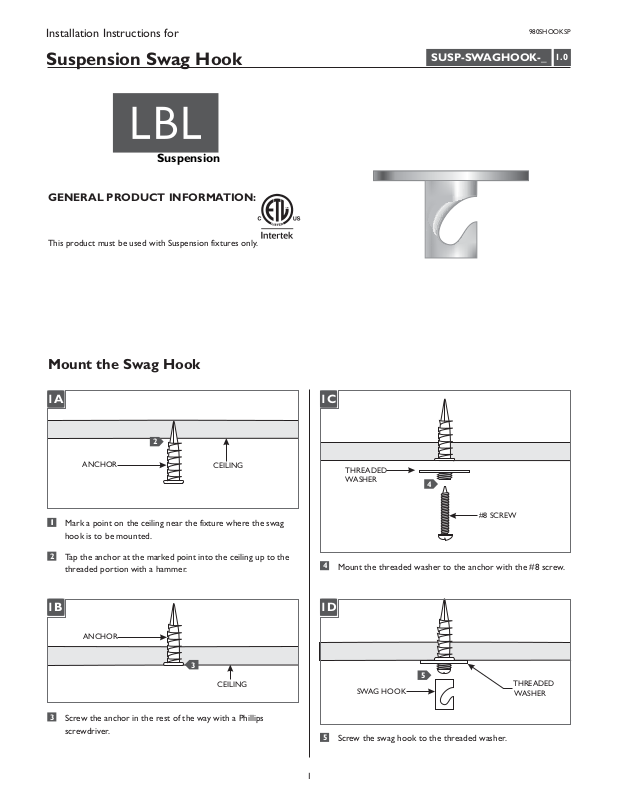

Installation Instructions for

980SHOOKSP

Suspension Swag Hook

Suspension

GP I :ENERAL RODUCT NFORMATION

This product must be used with Suspension fixtures only.

SUSP-SWAGHOOK-_

1.0

Mount the Swag Hook

2

ANCHOR

11

Mark a point on the ceiling near the fixture where the swag
hook is to be mounted.

2

Tap the anchor at the marked point into the ceiling up to the
threaded portion with a hammer.

ANCHOR

CEILING

1C1A

THREADED
WASHER

4

Mount the threaded washer to the anchor with the #8 screw.

4

#8 SCREW

1D1B

3

CEILING

3

Screw the anchor in the rest of the way with a Phillips
screwdriver.

5

SWAG HOOK

5

Screw the swag hook to the threaded washer.

1

THREADED

WASHER

1E

FIXTURE CORD

6

2MM ALLEN

M4 SET SCREW

6

Hook the fixture cord into the swag hook and tighten the M4
set screw snugly with the provided 2 MM Allen wrench.

WRENCH

SAVETHESE INSTRUCTIONS!

7400 Linder Ave, Skokie, IL 60077

800.323.3226 - 847.626.6300

www.lbllighting.com

© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.

2
