LBL Lighting Sigma Accessory User Manual

Installation Instructions for
980DOMEMACC
Sigma Accessory
Accessories
GENERAL PRODUCT INFORMATION:
This product must be used with LBL Lighting systems only.

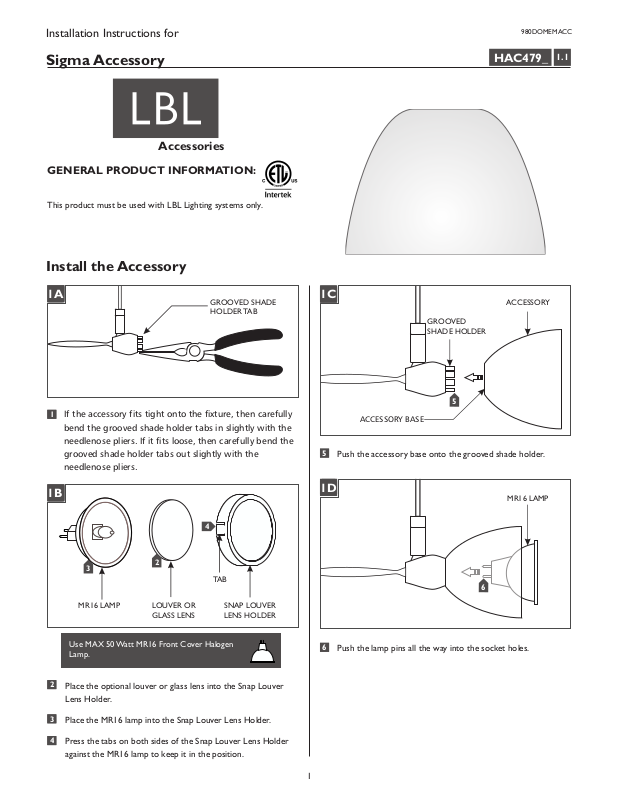

Install the Accessory
1A1A
GROOVED SHADE HOLDER TAB
1C
GROOVED SHADE HOLDER
HAC479_
ACCESSORY
1.1
1
1
If the accessory fits tight onto the fixture, then carefully bend the grooved shade holder tabs in slightly with the needlenose pliers. If it fits loose, then carefully bend the grooved shade holder tabs out slightly with the needlenose pliers.
1A1B
4
3
MR16 LAMP
Use MAX 50 Watt MR16 Front Cover Halogen Lamp.
2
LOUVER OR GLASS LENS
TAB
SNAP LOUVER LENS HOLDER
5
ACCESSORY BASE
5
Push the accessory base onto the grooved shade holder.
1D
6
6
Push the lamp pins all the way into the socket holes.
MR16 LAMP
2
Place the optional louver or glass lens into the Snap Louver Lens Holder.
3
Place the MR16 lamp into the Snap Louver Lens Holder.
4
Press the tabs on both sides of the Snap Louver Lens Holder against the MR16 lamp to keep it in the position.
1
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting. All rights reserved. The "LBL Lighting" graphic is a registered trademark of LBL Lighting. LBL Lighting reserves the right to change specifications for product improvements without notification.
