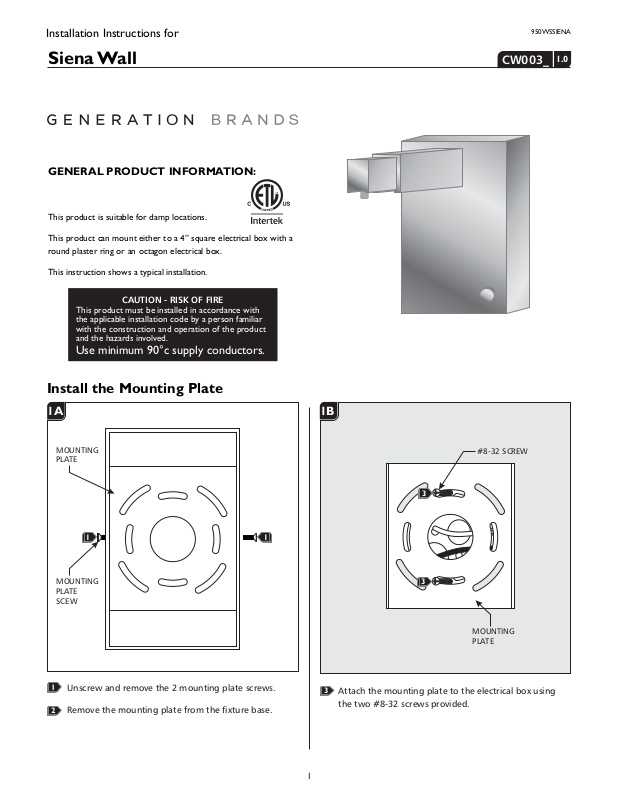

Installation Instructions for
950WSSIENA
Siena Wall
GP I :ENERAL RODUCT NFORMATION
This product is suitable for damp locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
C 003_W
1.0
Install the Mounting Plate
1A
1A
MOUNTING
PLATE
MOUNTING
PLATE
SCEW
1A1B
#8-32 SCREW
3
1 1
3
MOUNTING
PLATE
1
Unscrew and remove the 2 mounting plate screws.
2
Remove the mounting plate from the fixture base.
3
Attach the mounting plate to the electrical box using
the two #8-32 screws provided.
1
Install the Fixture
1A1C
5
6
4
Connect the fixture to a suitable ground in accordance
with local electrical codes.
Connect the available white fixture wire to the neutral
5
power line wire with a wire nut.
6
Connect the available black fixture wire to the hot
power line wire with a wire nut.
7
Properly place the transformer, wires, and wire nut
connections into the electrical box.
1A3A
CANOPY FUSION JACK
CONNECTOR
4
FIXTURE FUSION JACK
CONNECTOR
1
Follow the instruction provided with the pendant to
1
shorten the cable.
2
Screw the Fixture Fusion Jack male connector into the
Fusion Jack female connector.
1A3B
8
Mount the fixture by sliding it back onto the mounting
plate and reinstalling the two fixture screws (reversal of
figure 1A).
Adjust the Canopy
Note: Depending on the size of the shade and the
desired distance of the shade from the wall,
Adjustments of the canopy length can be made
using this section. It is important to plan out the
desired height of the pendant along with the desired
distance from the wall before shortening the cable.
1A2A
SET SCREW
1
1
ALLEN WRENCH
CANOPY ARM
3
Tap the touch dimmer to dim the fixture.
1
SAVETHESE INSTRUCTIONS!
TOUCH
DIMMER
1
If needed, adjust the canopy arm’s length by loosening
the top and bottom set screws, pull the arm out to the
desired position, and secure it in place by re tightening
the set screws.
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.generation-brands.com
© 2014 Generation Brands.All rights reserved.The "Genereation Brands"
graphic is a registered trademark of Generation Brands. Generation Brands
reserves the right to change specifications for product improvements without
notification.
2
