LBL Lighting Showtime WD User Manual

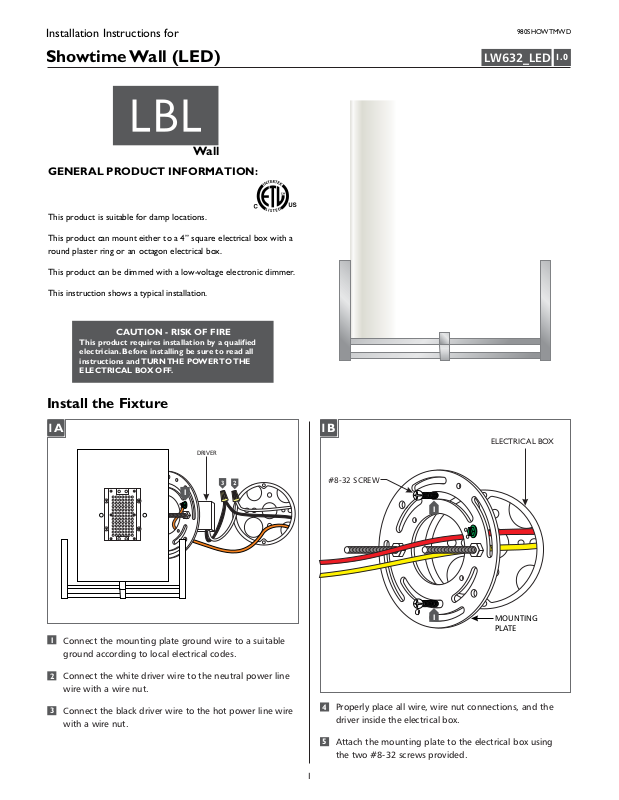

Installation Instructions for
980SHOWTMWD
Showtime Wall (LED)
Wall
GENERAL PRODUCT INFORMATION:
This product is suitable for damp locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This product can be dimmed with a low-voltage electronic dimmer.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWERTO THE
ELECTRICAL BOX OFF.
LW632_LED
1.0
Install the Fixture
1A
DRIVER
3
2
1
1
Connect the mounting plate ground wire to a suitable
ground according to local electrical codes.
2
Connect the white driver wire to the neutral power line
wire with a wire nut.
1B
#8-32 SCREW
ELECTRICAL BOX
1
1
MOUNTING
PLATE
3
Connect the black driver wire to the hot power line wire
with a wire nut.
Properly place all wire, wire nut connections, and the
4
driver inside the electrical box.
5
Attach the mounting plate to the electrical box using
the two #8-32 screws provided.
1
1C
KNURLED NUT KNURLED NUT
5
Mount the fixture onto the mounting plate and secure it
tightly with the two knurled nuts.
1E
GLASS
SHADE
GROOVE
1D
TOP VIEW
THUMB SCREW
THUMB SCREW TOP SHADE
6
Install the top shade by aligning it to holes on top of
the fixture and securing it with the two knurled thumb
screws.
TOP SHADE
GROOVE
7
Gently slide the glass shade down until it rests inside the
GLASS
SHADE
groove in the frame.
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2012 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
A Generation Brands Company
2
