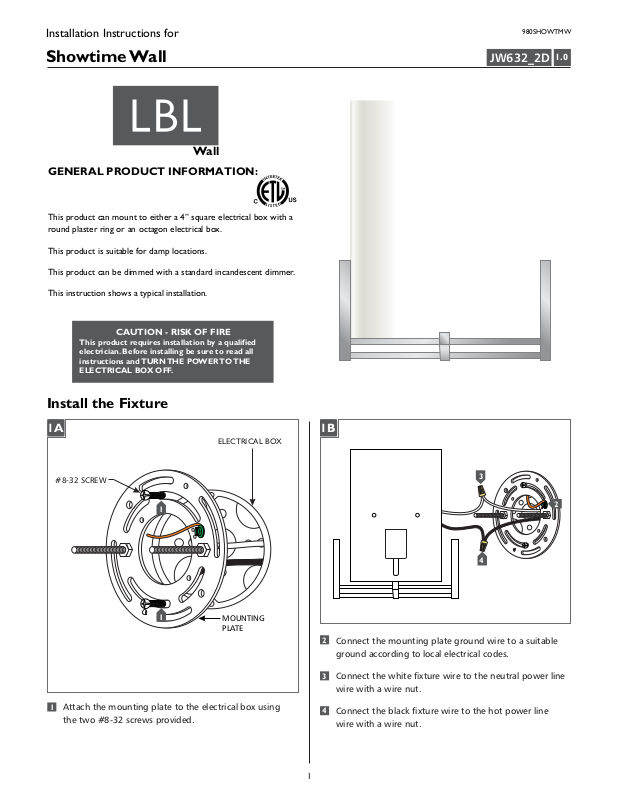

Installation Instructions for
980SHOWTMW
Showtime Wall
Wall
GENERAL PRODUCT INFORMATION:
This product can mount to either a 4” square electrical box with a round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product requires installation by a qualified electrician. Before installing be sure to read all instructions and TURN THE POWERTO THE ELECTRICAL BOX OFF.
JW632_2D
1.0
Install the Fixture
1A
#8-32 SCREW
1
1
ELECTRICAL BOX
MOUNTING PLATE
1B
3
4
2
Connect the mounting plate ground wire to a suitable ground according to local electrical codes.
3
Connect the white fixture wire to the neutral power line wire with a wire nut.
2
Attach the mounting plate to the electrical box using
1
the two #8-32 screws provided.
4
Connect the black fixture wire to the hot power line wire with a wire nut.
1
Page 2
Install Lamp and Shade
1C
KNURLED NUT KNURLED NUT
5
Properly place all wires and wire nut connections in the electrical box.
6
Mount the fixture onto the mounting plate and secure it tightly with the two knurled nuts.
2A
LAMP
SOCKET
Use Type BT15
MAX 75 Watt
medium base lamp.
CAUTION: To reduce the risk of a burn or electric shock during relamping, disconnect the power to the fixture.
1
Screw the lamp into the socket.
1D
TOP VIEW
THUMB SCREW
THUMB SCREW TOP SHADE
TOP SHADE
7
Install the top shade by aligning it to holes on top of the fixture and securing it with the two knurled thumb screws.
2
Page 3
2B
GLASS SHADE
GROOVE
GROOVE
2
Gently slide the glass shade down until it rests inside the
GLASS SHADE
groove in the frame.
NOTE: To re-lamp, reverse the section 2 instructions to remove the diffuser and gain access to the lamp and socket.
3
Page 4
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2012 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a registered trademark of LBL Lighting. LBL Lighting reserves the right to change specifications for product improvements without notification.
