LBL Lighting Sam P User Manual
Installation Instructions for
980FSJSAMP
Sam
Fusion Jack™
GP I :ENERAL RODUCT NFORMATION
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURNTHE POWER TO THE
ELECTRICAL BOX OFF.

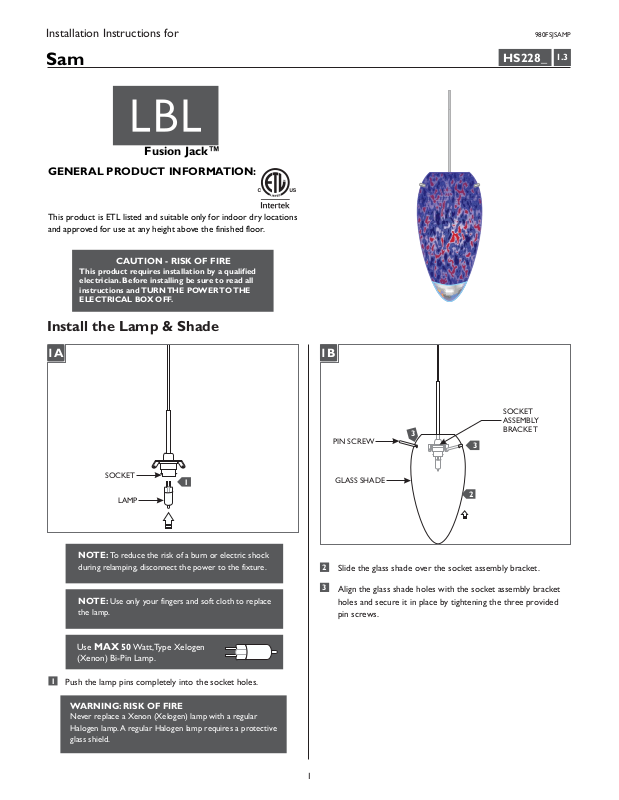

Install the Lamp & Shade
HS228_
1.3
1A
SOCKET
LAMP
NOTE:To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
NOTE:Use only your fingers and soft cloth to replace
the lamp.
1
1B
SOCKET
ASSEMBLY
PIN SCREW
GLASS SHADE
22
Slide the glass shade over the socket assembly bracket.
23
Align the glass shade holes with the socket assembly bracket
holes and secure it in place by tightening the three provided
pin screws.
3
3
2
BRACKET
Use Watt,Type XelogenMAX 50
(Xenon) Bi-Pin Lamp.
1
Push the lamp pins completely into the socket holes.
WARNING: RISK OF FIRE
Never replace a Xenon (Xelogen) lamp with a regular
Halogen lamp.A regular Halogen lamp requires a protective
glass shield.
1
Adjust the Fixture Height
2A
ALLEN WRENCH
SET SCREW
1
CONNECTOR
1
Back out (do not remove) the set screw on tip of the
connector with the provided Allen wrench.
2B
ALLEN WRENCH
SET SCREW
2
2
Back out (do not remove) the set screw on the conical
connector with the provided Allen wrench.
2E
6
CONICAL CONNECTOR
6
Feed and push the coaxial cable into the conical connector.The
coaxial cable will come to a stop point after being inserted
3/4" into the conical connector.
2F
7
WRINKLE ON OUTER
WRAPPED WIRE
7
Keep pushing the coaxial cable into the connector while
rotating the connector to ease feeding the inner wire into the
tip of the connector.The outer wrapped wire will start
wrinkling while being inserted another 1/2" into the connector.
OUTER WRAPPED
WIRE STOPS HERE
INNER WIRE
STOPS HERE
2C
4
3
Cut the coaxial cable to the desired length.
4
Gently twist the end of the coaxial cable between thumb and
forefinger.
2D
SURFACE
PLATE
2G
ALLEN WRENCH
8
Look into the sight hole on the top of the connector to make
INNER WIRE
SIGHT HOLE
9
sure that the inner wire is contacting the end of the connector.
9
Hold the coaxial cable in place and tighten the set screw on tip
of the connector with the provided Allen wrench. Make sure
this set screw connection is tight.
8
5
Tap the conical connector on a hard surface with the set screw
facing down, so the plate inside drops into place.
2
