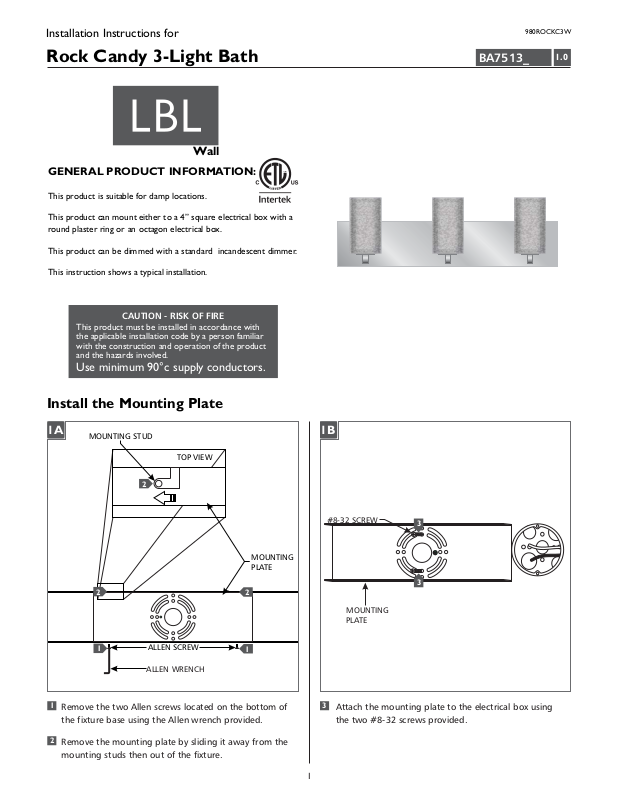

Page 1
Installation Instructions for
980ROCKC3W
Rock Candy 3-Light Bath
Wall
GP I :ENERAL RODUCT NFORMATION
This product is suitable for damp locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This product can be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
BA7513_
1.0
Install the Mounting Plate
1A
MOUNTING STUD
2
2
1
TOP VIEW
ALLEN SCREW
ALLEN WRENCH
MOUNTING
PLATE
2
1
1B
#8-32 SCREW
MOUNTING
PLATE
3
3
1
Remove the two Allen screws located on the bottom of
the fixture base using the Allen wrench provided.
2
Remove the mounting plate by sliding it away from the
mounting studs then out of the fixture.
3
Attach the mounting plate to the electrical box using
the two #8-32 screws provided.
1
Page 2
Install the Fixture
Install the Lamp and Shades
2A
2
2
1
3
1
Connect the mounting plate ground wire to a suitable
ground according to local electrical codes.
2
Connect the white fixture wire to the neutral power line
wire with a wire nut.
3A
LAMP
SOCKET
CAUTION: To reduce the risk of a burn or electric
shock during relamping, disconnect the power to
the fixture.
Use Volt, type T4, G9 baseMAX 60120 Watt
bi-pin halogen lamp in each socket.
NOTE: Use only your fingers and a soft cloth to
replace the lamp.
3
Connect the black fixture wire to the hot power line
wire with a wire nut.
4
Mount the fixture by sliding it back onto the mounting
plate and reinstalling the two Allen screws (reversal of
figure 1A).
1
Push the lamp base completely into the socket.
2
Page 3
3B
3C
OUTER
GLASS
SHADE
INNER
GLASS
SHADE
SOCKET
ASSEMBLY
BASE
2
Gently push the inner glass shade into the center of the
socket assembly base until it is firmly in place.
3
Carefully screw the outer glass shade onto the socket
assembly base until it is firmly in place.
4
Repeat steps 1 through 3 for all the socket assemblies.
NOTE: To re-lamp, reverse the section 3 instructions.
SOCKET
ASSEMBLY
BASE
3
Page 4
SAVETHESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
4
