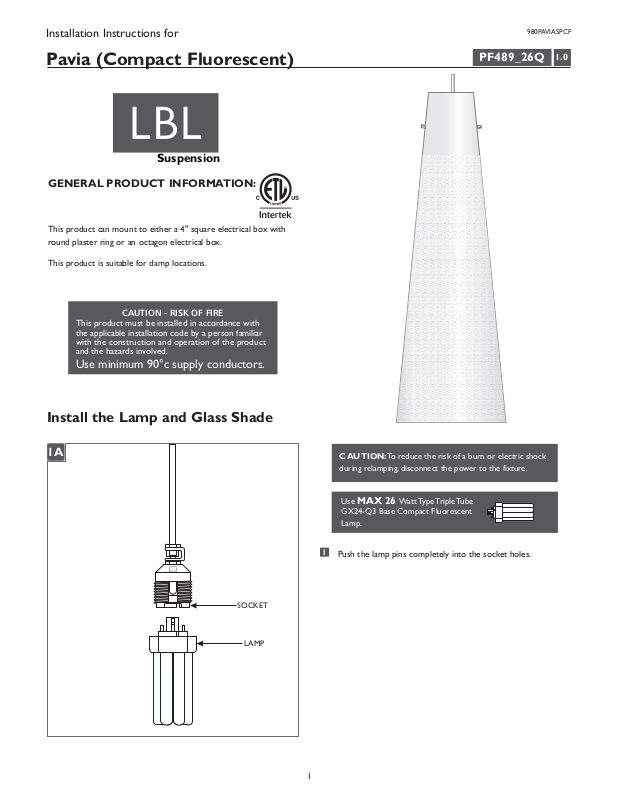

LBL Lighting Rhythm PCF User Manual

Installation Instructions for

980PAVIASPCF

Pavia (Compact Fluorescent)

Suspension

GP I :ENERAL RODUCT NFORMATION

This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.

This product is suitable for damp locations.

CAUTION - RISK OF FIRE

This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.

Use minimum 90°c supply conductors.

PF489_26Q

1.0

Install the Lamp and Glass Shade

1A

SOCKET

LAMP

CAUTION:To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.

Use WattType TripleTubeMAX 26
GX24-Q3 Base Compact Fluorescent

Lamp.

1

Push the lamp pins completely into the socket holes.

1

1B

WASHER

3 3

THUMB SCREW

2

BRACKET

SAVETHESE INSTRUCTIONS!

GLASS SHADE

2

Place the glass shade onto the bracket and align the glass shade
holes with the bracket holes.

3

Tighten the three thumb screws with washers through the
glass shade holes completely into the bracket holes to secure
the glass shade in place.

NOTE:Do not over tighten the thumb screws.

Overtightening may break the glass and result in injury.

4

Refer to the instructions provided with the canopy to install
the fixture.
