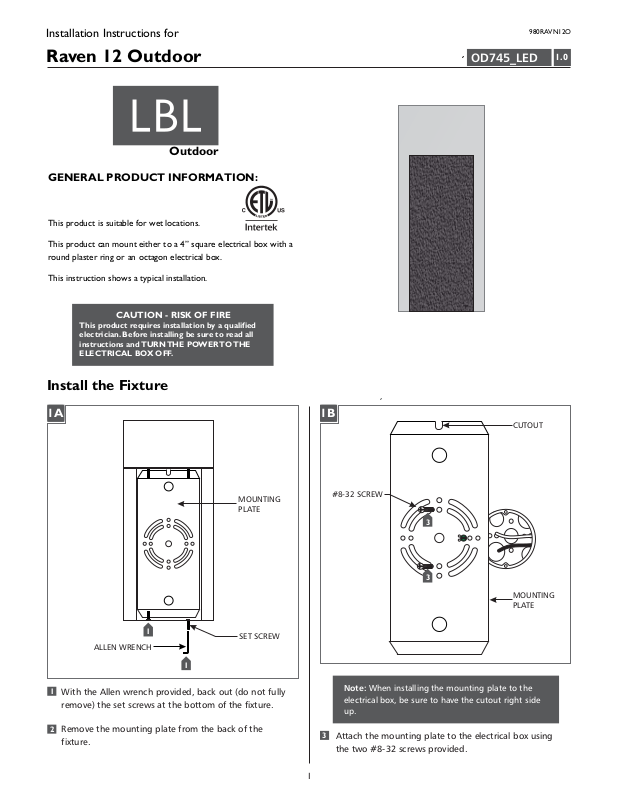

Installation Instructions for
980RAVN12O
Raven 12 Outdoor
Outdoor
GP I :ENERAL RODUCT NFORMATION
This product is suitable for wet locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURNTHE POWER TO THE
ELECTRICAL BOX OFF.
OD745_LED
1.0
Install the Fixture
1A 1B
MOUNTING
PLATE
1
ALLEN WRENCH
1
SET SCREW
CUTOUT
#8-32 SCREW
3
3
MOUNTING
PLATE
1
With the Allen wrench provided, back out (do not fully
remove) the set screws at the bottom of the fixture.
2
Remove the mounting plate from the back of the
fixture.
Note: When installing the mounting plate to the
electrical box, be sure to have the cutout right side
up.
3
Attach the mounting plate to the electrical box using
the two #8-32 screws provided.
1
1C
1D
SCREW
ANCHOR
ANCHOR
4
Verify that the mounting plate is level before continuing.
5
Line up an anchor tip with the center of a mounting
plate hole, and push the anchor into the wall up to the
threads.
6
6
Screw the anchors in the rest of the way with a Phillipshead screwdriver.
WASHER
WASHER
SCREW
68
Slide a #8 screw through a washer and screw it into an
anchor.
69
Repeat for the other anchor to secure the mounting
plate to the wall.
Repeat steps 5-6 for the other anchor.
67
2
1E
11
12
10
Connect the mounting plate ground wire to a suitable
ground in accordance with local electrical codes.
11
Connect the white fixture wire to the neutral power line
wire with a wire nut.
12
Connect the black fixture wire to the hot power line
wire with a wire nut.
10
1G
15
For wet locations, caulk around the base with
waterproof construction sealant.
1F
13
13
14
SET SCREW
ALLEN WRENCH
13
Hook the top of the fixture to the top of the mounting
plate, ensuring that the fixture wires are inside the
cutout, and then swing the bottom of the fixture
toward the plate until it is flush with the wall.
14
With the allen wrench, tighten the set screws at the
bottom of the fixture to secure it to the mounting plate.
3
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2013 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
A Generation Brands Company
