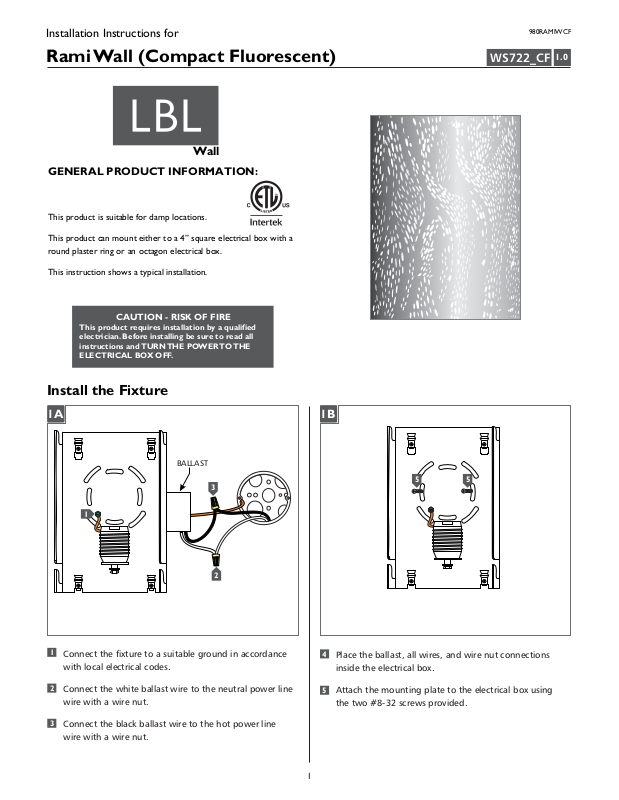

Installation Instructions for

980RAMIWCF

Rami Wall (Compact Fluorescent)

Wall

GP I :ENERAL RODUCT NFORMATION

This product is suitable for damp locations.

This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.

This instruction shows a typical installation.

CAUTION - RISK OF FIRE

This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURNTHE POWER TO THE
ELECTRICAL BOX OFF.

WS722_CF

1.0

Install the Fixture

1A

BALLAST

3

1

2

1

Connect the fixture to a suitable ground in accordance
with local electrical codes.

1B

5 5

4

Place the ballast, all wires, and wire nut connections
inside the electrical box.

2

Connect the white ballast wire to the neutral power line
wire with a wire nut.

3

Connect the black ballast wire to the hot power line
wire with a wire nut.

Attach the mounting plate to the electrical box using

5

the two #8-32 screws provided.

1

Install the Lamp and Shade

2A

LAMP

1

SOCKET

CAUTION: To reduce the risk of a burn or electric
shock during relamping, disconnect the power to
the fixture.

Note: To replace the lamp, reverse the section 2
figures.

Use 18 Watt GX24Q-2 BaseMAX
Triple Tube Compact Fluorescent Lamp.

1

Push the lamp base into the socket.

2B

2 2

SHADE

2 2

2

Slide the shade into the slots on the backplate.

3

Align and center the shade to the mounting clips on
the mounting plate.

4

Mount the shade by evenly pushing down on the
shade’s frame until they are firmly inside the mounting
clips.

4 4

4 4

SAVE THESE INSTRUCTIONS!
