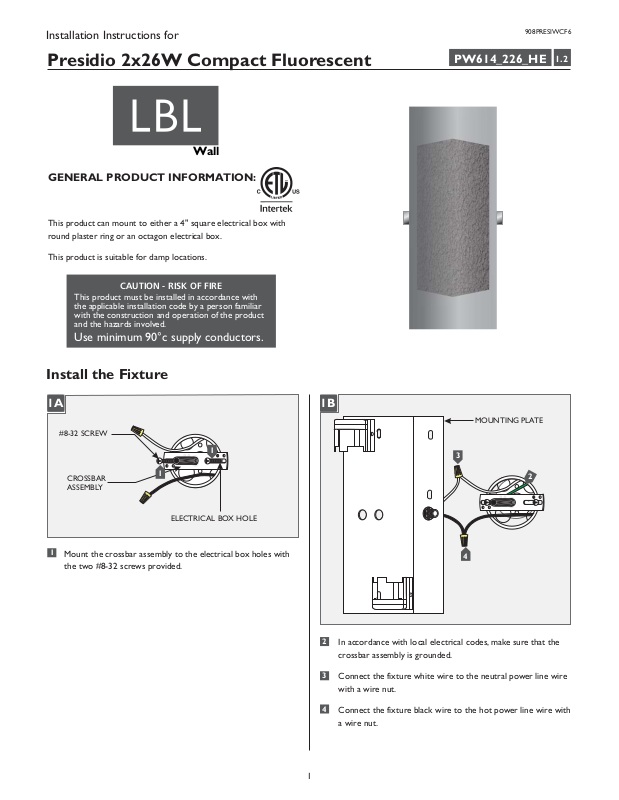

Page 1
Installation Instructions for
908PRESIWCF6
Presidio 2x26W Compact Fluorescent
Wall
GP I :ENERAL RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
PW614_226_HE
1.2
Install the Fixture
1A
#8-32 SCREW
1
CROSSBAR
ASSEMBLY
1
Mount the crossbar assembly to the electrical box holes with
the two #8-32 screws provided.
1
ELECTRICAL BOX HOLE
1B
MOUNTING PLATE
3
4
2
In accordance with local electrical codes, make sure that the
crossbar assembly is grounded.
2
3
Connect the fixture white wire to the neutral power line wire
with a wire nut.
4
Connect the fixture black wire to the hot power line wire with
a wire nut.
1
Page 2
Install the Lamp & Shade
1C 2A
LOCK
WASHER
6
NUT
7
5
Place all wires and wire nut connections properly inside the
5
THREADED
NIPPLE
electrical box.
Level the mounting plate vertically and slide the center hole
6
completely onto the exposed threaded nipple.
7
Secure the mounting plate to the threaded nipple with lock
washer and nut.
MOUNTING
PLATE
SOCKET
Use WattType QuadTubeMAX 26
G24q-3 Base Compact Fluorescent Lamp
With Each Socket.
1
Install each lamp by pushing the lamp pins completely into the
1
LAMP
1
1
LAMP PIN
socket holes.
2
Page 3
EXPOSED
THREADED
NIPPLE
2D2B
CAP
2
2
Place the reflector holes onto the exposed threaded nipples
and secure it in place with the caps (Do Not Completely
Tighten the Caps).
2C
2
REFLECTOR
CAP
4
4
For the tamper resistant models, tighten the M3 set screws on
4
the cap with the 1.5 MM Allen wrench.
M3 SET
SCREW
1.5 MM
ALLEN
WRENCH
3 3
CAP
3
Slide the mesh screen cutouts onto the threaded nipples and
tighten the caps to secure the screen in place.
MESH
SCREEN
3
Page 4
SAVETHESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
A Generation Brands Company
4
