LBL Lighting Polo User Manual

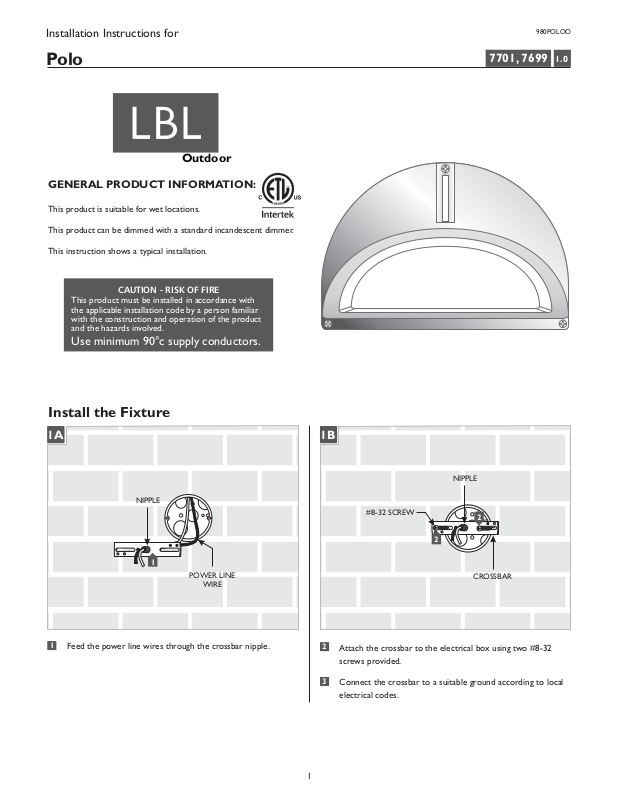

Installation Instructions for
980POLOO
Polo
Outdoor
GP I :ENERAL RODUCT NFORMATION
This product is suitable for wet locations.
This product can be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
7701, 7699
1.0
Install the Fixture
NIPPLE
1
POWER LINE
WIRE
1
Feed the power line wires through the crossbar nipple.
1B1A
NIPPLE
#8-32 SCREW
2
2
Attach the crossbar to the electrical box using two #8-32
screws provided.
3
Connect the crossbar to a suitable ground according to local
electrical codes.
2
3
CROSSBAR
1
1C
NUT
1E
6
5
7
FIXTURE BASE
4
Slip the hole in the center of the fixture base onto the nipple.
5
Make sure the fixture is level, and secure the fixture to the
WIRE NUT
nipple with a nut.
Connect the white fixture wire to the neutral power line wire
6
with a wire nut.
7
Connect the black fixture wire to the hot power line wire
with a wire nut.
1D
PLASTIC
COVER
GLASS SHIELD
9
Place the glass shield inside the plastic cover.
1F
10
10
10
8
CAUTION:To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
Use Type G16.5MAX 40 Watt
E12 Base Lamp.
8
Screw the lamp into the socket.
COVER
10
Place the cover onto the fixture base and screw in the three
screws provided to secure the cover.
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
2
A Generation Brands CompanyA Generation Brands Company
SCREW
