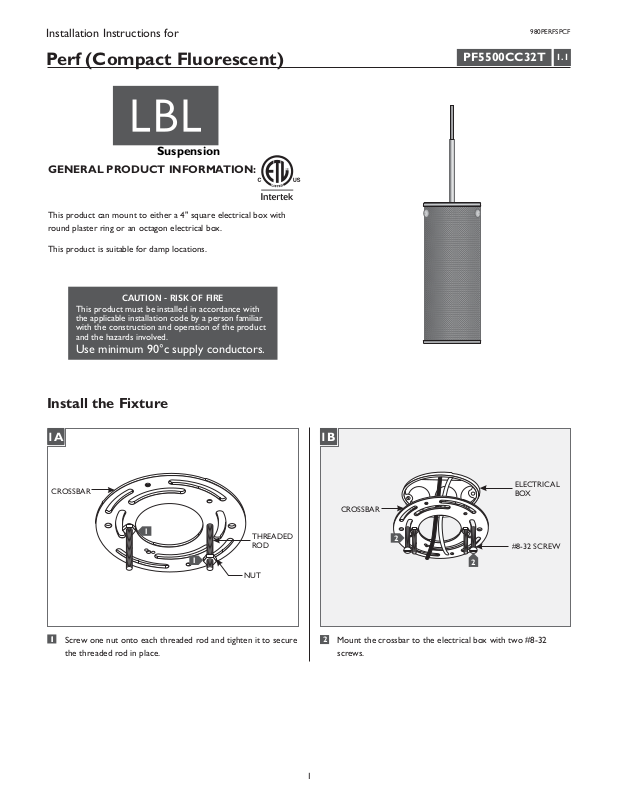

Installation Instructions for
980PERFSPCF
Perf (Compact Fluorescent)
Suspension
GP I :ENERAL RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
PF5500CC32T
1.1
Install the Fixture
CROSSBAR
1
1
NUT
11
Screw one nut onto each threaded rod and tighten it to secure
the threaded rod in place.
THREADED
ROD
1B1A
CROSSBAR
2
2
2
Mount the crossbar to the electrical box with two #8-32
screws.
ELECTRICAL
BOX
#8-32 SCREW
1
1C
(H)
CANOPY
METAL SHADE
1E
7
7
MARKED LINE
Feed the cord inside the canopy so that the marked line is
6
1"
PLASTIC STRAIN
RELIEF
6
exposed behind the canopy.
7
Hold the plastic strain relief 1" above the marked line and
tighten the set screw.
1F
3
Determine the desired fixture height (From the bottom of
metal shade to the top of canopy).
1D
4
5
PLASTIC STRAIN RELIEF
CANOPY
BUSHING
CORD
CAP
8
Slide the canopy up against the plastic strain relief and tighten
8
M4 SET
SCREW
2 MM ALLEN
WRENCH
the M4 set screw snugly on the cap with 2 MMAllen wrench.
4
Feed the cord into the canopy and plastic strain relief.
5
Adjust the fixture height and mark the cord below the canopy
bushing.
2
1G
1I
4"
10
9
Leave 6" of the cord behind the canopy for power connections
and cut the excess cord.
10
From the end of the cord remove 4" of the cord insulation.
11
Strip 1/4" of the insulation from the wire ends.
1H
11
14
15
13
In accordance with local electrical codes, make sure that the
13
crossbar and fixture ground wire are grounded.
14
Connect the white ballast wire to the neutral power line wire
with a wire nut.
15
Connect the black ballast wire to the hot power line wire with
a wire nut.
1J
12
12
12
Connect one ballast wire to each fixture wire (except ground
WIRE NUT
wire) with a wire nut.
BALLAST
THREADED ROD
CAP NUTS
16
Place all wires and wire nut connections properly inside the
17
17
canopy housing.
17
Slide the canopy onto the threaded rods and secure it in place
by tightening the cap nuts completely to the threaded rods.
3
Install the Lamp
2A
SOCKET
SAVE THESE INSTRUCTIONS!
CAUTION:To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
Use WattType Triple TubeMAX 32
GX24q-3 Base Compact Fluorescent
Lamp.
Push the lamp pins completely into the socket holes.
1
LAMP
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
4
