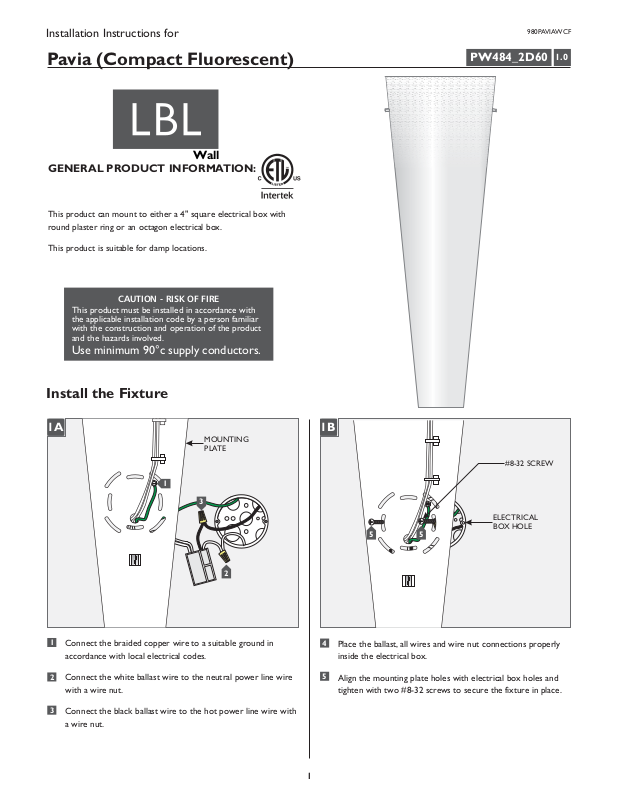

LBL Lighting Pavia WCF User Manual
Installation Instructions for
980PAVIAWCF
Pavia (Compact Fluorescent)
Wall
GP I :ENERAL RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
PW484_2D60
1.0
Install the Fixture
1A 1B
MOUNTING
PLATE
1
3
2
1
Connect the braided copper wire to a suitable ground in
accordance with local electrical codes.
2
Connect the white ballast wire to the neutral power line wire
with a wire nut.
4
5
#8-32 SCREW
ELECTRICAL
5 5
Place the ballast, all wires and wire nut connections properly
inside the electrical box.
Align the mounting plate holes with electrical box holes and
tighten with two #8-32 screws to secure the fixture in place.
BOX HOLE
3
Connect the black ballast wire to the hot power line wire with
a wire nut.
1
1
Anchor the Fixture
Install the Lamp and Shade
2A
ANCHOR
3
1
Verify that the fixture is level before continuing.
Line up an anchor tip with the center a mounting plate hole,
2
and push the anchor into the wall up to the threads.
3
Screw the anchors in the rest of the way with a Phillips-head
screwdriver.
4
Repeat steps 2-3 for all 3 anchors.
2
3A
1
Use Twin TubeMAX 36 Watt
Compact Fluorescent Lamp.
1
Push the lamp base firmly and completely into the socket
2
Push the lamp tube onto the retaining clip.
3B
WASHER
2B
WASHER
5
5
Slide a #8 screw through a washer and screw it into an anchor.
Repeat for all 3 anchors to secure the fixture base to the wall.
SCREW
ANCHOR
THUMB
SCREW
SHADE
NOTE:Do not over tighten the thumb screws.
Overtightening may break the glass and result in injury.
3
Slide the thumb screws into the nylon washers and through
the holes in the shade, and screw them into the nuts on the
mounting plate.
SAVETHESE INSTRUCTIONS!
