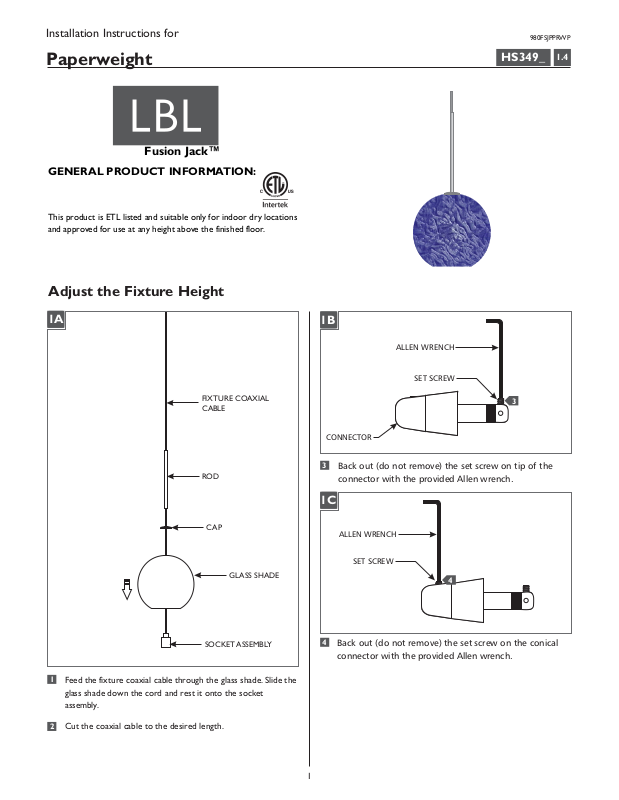

Installation Instructions for
980FSJPPRWP
Paperweight
Fusion Jack™
GP I :ENERAL RODUCT NFORMATION
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
Adjust the Fixture Height
1A
1B
ALLEN WRENCH
HS349_
1.4
FIXTURE COAXIAL
CABLE
ROD
CAP
GLASS SHADE
SOCKET ASSEMBLY
SET SCREW
3
CONNECTOR
3
Back out (do not remove) the set screw on tip of the
connector with the provided Allen wrench.
1C
ALLEN WRENCH
SET SCREW
4
4
Back out (do not remove) the set screw on the conical
connector with the provided Allen wrench.
1
Feed the fixture coaxial cable through the glass shade. Slide the
glass shade down the cord and rest it onto the socket
assembly.
2
Cut the coaxial cable to the desired length.
1
Page 2
1D
5
5
Gently twist the end of the coaxial cable between thumb and
forefinger.
1E
SURFACE
PLATE
6
Tap the conical connector on a hard surface with the set screw
facing down, so the plate inside drops into place.
1H
ALLEN WRENCH
9
Look into the sight hole on the top of the connector to make
INNER WIRE
SIGHT HOLE
10
sure that the inner wire is contacting the end of the connector.
10
Hold the coaxial cable in place and tighten the set screw on tip
of the connector with the provided Allen wrench. Make sure
this set screw connection is tight.
1I
11
9
1F
7
CONICAL CONNECTOR
7
Feed and push the coaxial cable into the conical connector.The
coaxial cable will come to a stop point after being inserted
3/4" into the conical connector.
1G
8
WRINKLE ON OUTER
WRAPPED WIRE
8
Keep pushing the coaxial cable into the connector while
rotating the connector to ease feeding the inner wire into the
tip of the connector.The outer wrapped wire will start
wrinkling while being inserted another 1/2" into the connector.
OUTER WRAPPED
WIRE STOPS HERE
INNER WIRE
STOPS HERE
11
Firmly tighten the set screw on the conical connector.
1J
12
12
Pull the coaxial cable toward the fixture to smooth the
wrinkles.
2
Page 3
Install the Lamp
NOTE:To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
2A
SET SCREW
ALLEN WRENCH
NOTE:Use only your fingers and soft cloth to replace
the lamp.
SOCKET
LAMP
2B
3
Lower the glass shade onto the socket.
GLASS SHADE
SOCKET ASSEMBLY
Use Type XenonMAX 35 Watt
Bi-Pin Lamp.
1
Lift the glass shade to expose socket.
2
Push the lamp pins completely into the socket holes and
tighten the two set screws using the provided Allen wrench.
Make sure the set screw connections are very tight to
avoid heat build up and corrosion.
WARNING: RISK OF FIRE
Never replace a Xenon lamp with a regular Halogen lamp.
A regular Halogen lamp requires a protective glass shield.
3
