LBL Lighting Orbit Swivel I User Manual

Installation Instructions for

980FSJORBSI

Orbit Swivel I

Fusion Jack™

GP I :ENERAL RODUCT NFORMATION

This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.

WARNING: Risk of Fire. Hot Surface. Install the fixture

at least 6" (Inches) away from wall, curtains and combustible
materials. Maintain at least 9" (Inches) of clearance directly in
front of the fixture.

AVERTISSEMENT: Risque du feu. Surface Chaude.

Installez le montage au moins 6" (Pouces), 153 mm, loin du
mur, des rideaux et des matériaux combustibles. Maintenez au
moins 9" (Pouces), 230 mm, de dégagement directement
devant le montage.

HB273_1A50FSJ

CAUTION - RISK OF FIRE

This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.

Use minimum 90°c supply conductors.

1.4

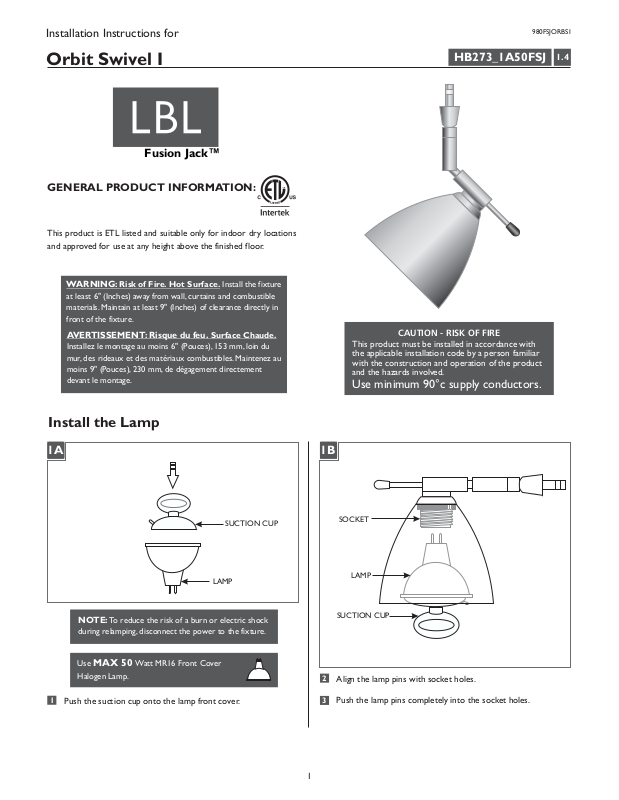

Install the Lamp

1A

NOTE:To reduce the risk of a burn or electric shock

during relamping, disconnect the power to the fixture.

MAX 50

Use Watt MR16 Front Cover
Halogen Lamp.

1

Push the suction cup onto the lamp front cover.

SUCTION CUP

LAMP

1B

SOCKET

LAMP

SUCTION CUP

2

Align the lamp pins with socket holes.

Push the lamp pins completely into the socket holes.

3

1

1C

SUCTION CUP

4

Remove the suction cup by pulling on the tab.

TA B

SAVE THESE INSTRUCTIONS!
