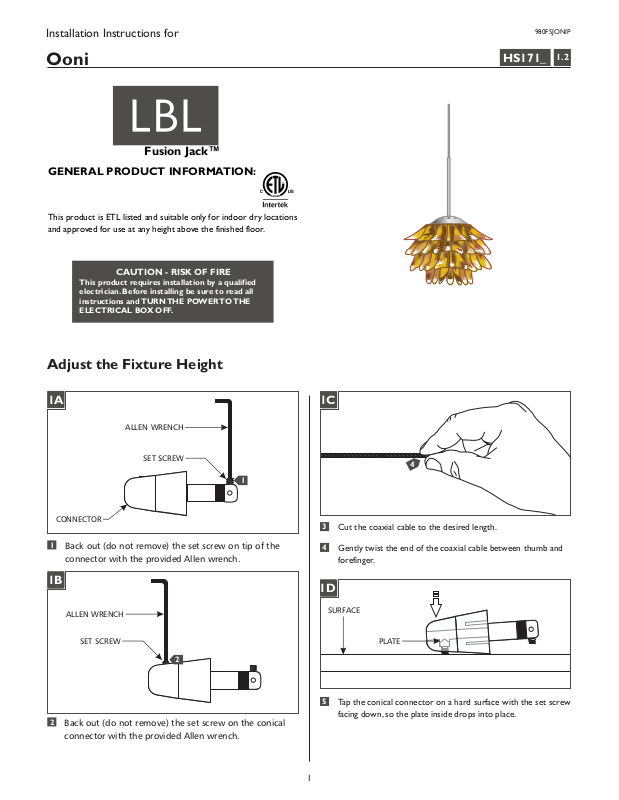

Installation Instructions for
980FSJONIP
Ooni
Fusion Jack™
GENERAL PRODUCT INFORMATION:
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.
HS171_
1.2
Adjust the Fixture Height
1A
ALLEN WRENCH
SET SCREW
CONNECTOR
1
Back out (do not remove) the set screw on tip of the
connector with the provided Allen wrench.
1B
ALLEN WRENCH
SET SCREW
1C
4
1
3
Cut the coaxial cable to the desired length.
4
Gently twist the end of the coaxial cable between thumb and
forefinger.
1D
SURFACE
PLATE
2
2
Back out (do not remove) the set screw on the conical
connector with the provided Allen wrench.
5
Tap the conical connector on a hard surface with the set screw
facing down, so the plate inside drops into place.
1
1E
1H
6
10
CONICAL CONNECTOR
6
Feed and push the coaxial cable into the conical connector. The
OUTER WRAPPED
WIRE STOPS HERE
coaxial cable will come to a stop point after being inserted
3/4" into the conical connector.
1F
7
WRINKLE ON OUTER
WRAPPED WIRE
7
Keep pushing the coaxial cable into the connector while
INNER WIRE
STOPS HERE
rotating the connector to ease feeding the inner wire into the
tip of the connector. The outer wrapped wire will start
wrinkling while being inserted another 1/2" into the connector.
1G
INNER WIRE
10
Firmly tighten the set screw on the conical connector.
1I
11
11
Pull the coaxial cable toward the fixture to smooth the
wrinkles.
SIGHT HOLE
9
ALLEN WRENCH
8
Look into the sight hole on the top of the connector to make
sure that the inner wire is contacting the end of the connector.
9
Hold the coaxial cable in place and tighten the set screw on tip
of the connector with the provided Allen wrench. Make sure
this set screw connection is tight.
8
2
Replacing the Lamp & Shade
2A
1
NOTE: To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
1
Unscrew the threaded cap from the glass shade.
2B
THREADED CAP
GLASS SHADE
2D
4
Remove the old lamp.
2E
NOTE: Use only your fingers and soft cloth to replace
the lamp.
SOCKET BRACKET
GLASS SHADE
2
Lower the socket assembly into the glass shade to free the
socket brackets.
SOCKET ASSEMBLY
2C
3
Use MAX 35 Watt, Bi-Pin Halogen Lamp.
5
Handle the new replacement lamp with a soft cloth to prevent
the natural oils on the fingertips from collecting on the lamp.
This will help extend the life of the lamp.
6
Gently insert the new lamp into the socket.
2F
7
7
Gently insert the socket assembly into the glass shade at an
angle. Rotate so that the socket brackets sit properly around
the glass shade collar.
3
Rotate to move the socket assembly from the glass shade.
3
IMPORTANT SAFETY INSTRUCTIONS
2A
THREADED CAP
THREADED NIPPLE
8
Slide the threaded cap back onto the glass shade and tighten it
to the exposed threaded nipple.
8
GLASS SHADE
To reduce the risk of fire, electrical shock, exposure to
excessive UV radiation, or injury to person:
– Use this fixture indoors only.
– Do not look directly at the lighted lamp.
– Do not remain in light if skin feels warm.
– Risk of fire: Use only the type of lamp and maximum wattage
indicated in this instruction manual.
– Never cover the halogen lamp with anything other than a LBL
Lighting lamp shield and never place flammable material close to
your fixture.
– Never turn the fixture on and off by connecting and disconnecting
the halogen lamp.
– Do not touch the fixture shades or lamp shield while the fixture
is on. These surfaces may be HOT.
– To avoid glare in child's eyes, hang the fixture 18" above the
table.
Halogen Lamp General Information
SAVE THESE INSTRUCTIONS!
– A new halogen lamp may smoke slightly when it is used for the
first time. This is perfectly normal; the protective coating is simply
being vaporized.
Two Tips For Prolonging Halogen
Lamp Life
– First avoid touching the lamp with bare hands during installation.
Any contaminant, even the oil from your hands can deteriorate
the lamp. Rubbing alcohol can be used to remove any
contaminant.
– Second, do not run the lamps at full power when you do not need
to. However, if dimming the fixture for an extended period of
time, occasionally bring the light up to full brightness for a few
minutes to complete the halogen cycle.
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2013 LBL Lighting. All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
A Generation Brands Company
4
